Contemporary promotional low cost 4-15 brick making machine
Introduction of low cost 4-15 brick making machine:
1.It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependently.
2.Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3.The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag,and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
Product List
Items |
Quantity |
Mark |
|
automatic block making machine |
1 |
set |
|
automatic pallet-carrying machine |
1 |
set |
|
automatic brick-carrying machine |
1 |
set |
|
automatic mix feeding machine |
1 |
set |
|
hydraulic station |
1 |
set |
|
electric control box |
1 |
set |
|
Mould |
1 |
set |
design by customer |
conveyor belt 8meter |
1 |
set |
|
wearing parts(one set) |
1 |
suit |
ensure enough |
JS500 compulsory mixer |
1 |
set |
|
Batching machine |
1 |
set |
PLD 800 with two hoppers |
Stacker |
1 |
set |
Hydraulic |
Screw |
1 |
set |
6m |
50T cement silo |
1 |
set |
Ø3m ,High 9.5m |
Fork lift |
1 |
set |
1.5T |
Bamboo Pallet |
1000 |
sets |
|
Barrow |
2 |
sets |
FREE |
Specification of low cost 4-15 brick making machine:
| Overall Dimension | 6800*1500*2700mm |
| Rated pressure | 16MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-25s |
| Vibrating Frequency | 4600 rolls/minute |
| Motors Power | 27.85KW |
| Pallet Size | 950*570*40mm |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, |
| garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |
| Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Productivity:
|
Size |
Quantity |
Cycle moulding |
Per hour |
Per day |
|
Hollow brick
|
400*200*200mm |
4 |
15-20s |
960pcs |
9600pcs |
400*150*200mm |
8 |
15-20s |
3360pcs |
19200pcs |
|
color brick |
225*112.5*60mm |
14 |
15-17s |
6720pcs |
33600pcs |

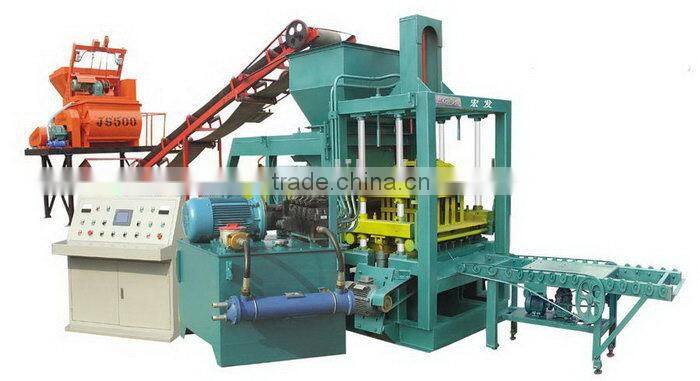

Picture of low cost 4-15 brick making machine:
Products Related:
Process Flow:
Raw Material:
Scale of raw material
1. 8%-10% cement ,30%-40% sand, 50%-60% stone(less than 15mm)
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.
Delivery Terms:
1.Price is based on FOB QingDao ,China
2.Payment:by irrevocable letter of credit,payable at sight for full amount of invoice value ,or T/T, 30% down payment,70% upon machinery completion.
3.Delivery:30 days upon receipt of down payment or L/C at sight.
4.Shipping Marks:We will send engineers and one translator to install the equipment;The buyer shall bear all expenses (include:visa/flight ticket/hotel/food/traffic, and extra subsidy usd 50/day/person for the first week,usd 100/day/ person fo later time)
5.We test brick making for every machine before delivery
6.Voltage and Hertz Demand: Depended on customer.
Guarantee and warranty:
1.Free technical training of installation .
2.The machine lifetime warranty.(our maintenance team can go to your country at any time)
