Home > Computer Products > Network Hardware & Parts > Router > 100M CPE Huawei B593 4G LTE Router FDD TDD Works Worldwide

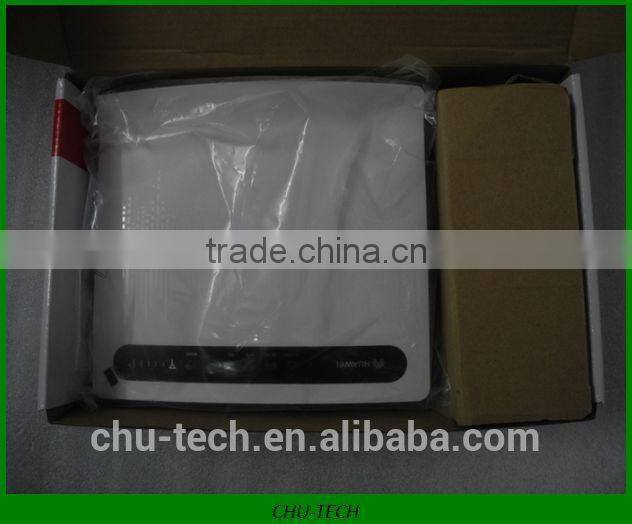

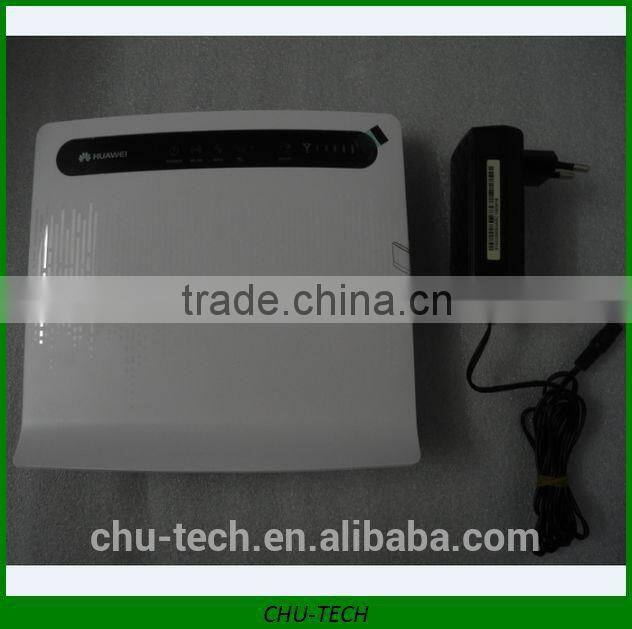

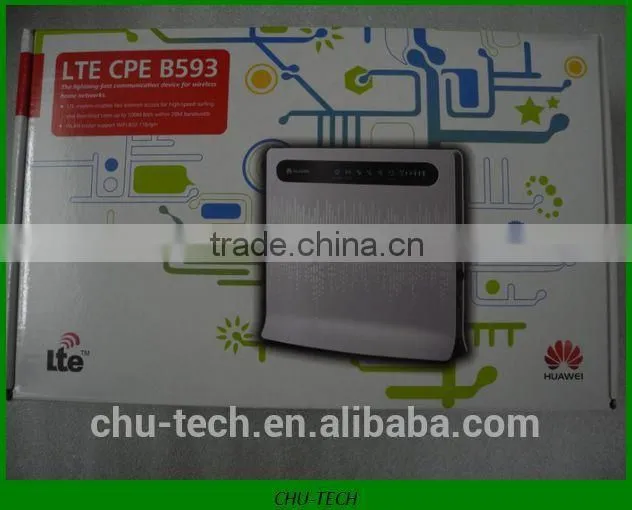

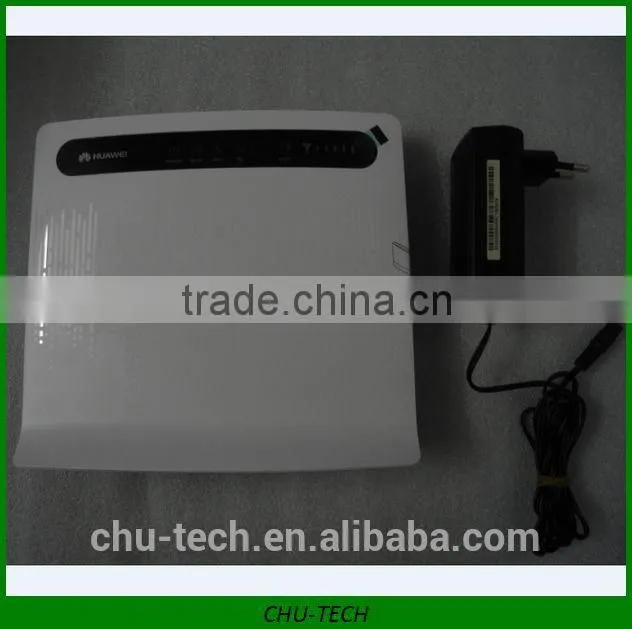

100M CPE Huawei B593 4G LTE Router FDD TDD Works Worldwide

Name: 100M CPE Huawei B593 4G LTE Router FDD TDD Works Worldwide
Brand: Huawei
SKU: 125963905
Availability: InStock

100M CPE Huawei B593 4G LTE Router FDD TDD Works Worldwide thumbnail-1

100M CPE Huawei B593 4G LTE Router FDD TDD Works Worldwide photo-1

US$ 156 - 169 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Products Status:

Stock

Type:

Wireless

Application:

Soho

Contact Supplier Request Quote Chat Now

Shenzhen Chu-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Type Wireless

Application Soho

Function Firewall, QoS, VPN

LAN Ports 4

WAN Ports 2

Certification CE

Brand Name Huawei

Model Number B593

Place of Origin China

Specifications

1. World's First TDD/FDD LTE CPE Router
2. 3G HSUPA/HSDPA/UMTS/DC-HSPA+ 900/2100 MHz
3. 4G: LTE 800/900/1800/2100/2600 MHz

100M CPE Huawei B593 4G LTE Router FDD TDD Works worldwide

Product Description

Frequencies:

* HUAWEI B593u-12: LTE FDD 800/900/1800/2100/2600MHz

* HUAWEI B593s-82: TDD 2300/2600MHz, FDD

* 2G: EDGE/GPRS/GSM 850/900/1800/1900 MHz

* 3G HSUPA / HSDPA / UMTS / DC-HSPA+ 900/2100 MHz

* 4G LTE TDD FDD 800/900/1800/2100/2600 MHz

Features:

PORTS: * 4 x LAN * 2 x USB

Transmission speed 4G (MAX)

* Download 100 Mbit / s * upload 50 Mbit / s

TRANSMISSION SPEED 3G (MAX) * download 42.2 Mbit / s * upload 5.76 Mbit / s

WI-FI: Wi-Fi(802.11 b / g / n)

Addistional antenna location: two antenna ports

SIZE: 190 mm x 35 mm x 176 mm

WEIGHT: 500g

Operation systems it's compatible with:

* Windows 2000/ Windows XP/ Windows Vista/ Windows 7 * Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7 * Linux

Application Instroduction:

1. Insert the SIM card into the SIM card slot.

2. Connect the power cord to the modem and the wall socket.

3. Turn on your computer and any other devices modem LAN and USB ports.

4. Turn on your modem POWER button.

CONNECTING PC TO THE MODEM WLAN CONNECTION

1. Turn on your modem POWER button.

2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.

3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.

Note: * The SSID and network security key can be found on the label on the back of the modem.

* You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.

4. If the PIN code request is active, log network management page (http://192.168.1.1 ) and enter the correct PIN code in the field provided.

Network Management Page Opening

1. Make sure that your flash drive and a computer or device the connection is established correctly.

2. Start a web browser and enter the address http://192.168.1.1

3. If the PIN code request is active, asking the network management side of it. The default PIN is 0000.

Light Indicators:

light Mode light Description MODE Blue This light is a constant blue, when the modem is connected to the 4G network, but no data is transferred. The indicator light flashes blue when data is being transferred. MODE Green This indicator light is constantly green when the modem is connected to a 3G network, but no data is transferred. The indicator light flashes Green when data is being transferred. MODE Orange This light is constantly orange when the modem is connected to a 2G network, but no data is transferred. The indicator light flashes orange when data is being transferred. MODE White This light will flash white when the modem to connect to the wireless network. MODE Red This light is constantly red when the modem cannot connect to a wireless network or modem is not a wireless network. MODE Mulberry This light is on when the SIM card is not recognized, or PIN has not been or PIN authentication fails. WLAN On WLAN function is enabled. LAN1-LAN4 On This light is on when the computer or other device is connected to the LAN port. SIGNAL On More bars are lit, the stronger the wireless signal.
