Super Fineness for Pigment Grinding Mill

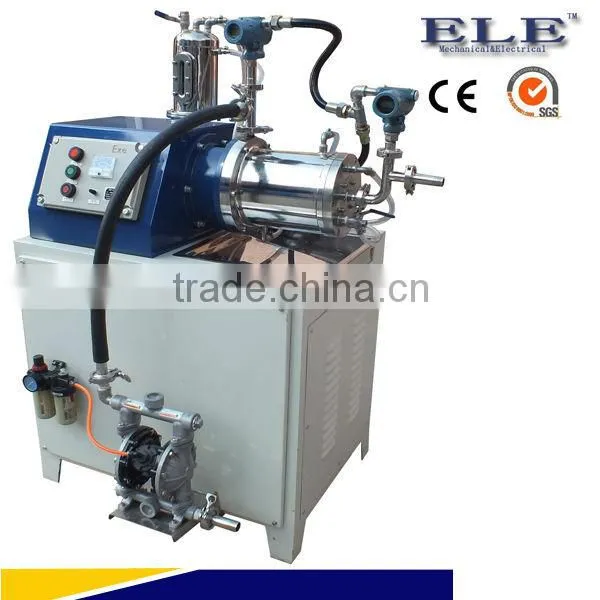

Super Fineness for Pigment Grinding Mill photo-1
US$ 100 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Product Type:
Other, Paint & Coating
Place of Origin:
Shanghai, China
Brand Name:
ELE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Product Type Other, Paint & Coating
Place of Origin Shanghai, China
Brand Name ELE
Model Number EDW
Type Other, Horizontal Bead Mill, Sand Mill-Pin Type

Specifications

1.Pigment grinding mill,sand mill,bead mill
2..Super fineness
3.CE certificate
4. Used in pigement,paint, ink, coating,paste

Pigment Grinding Mill,Grinding Equipment,Bead Mill, Sand Mill, Paint Mill



Super Fineness for Pigment Grinding Mill



Description

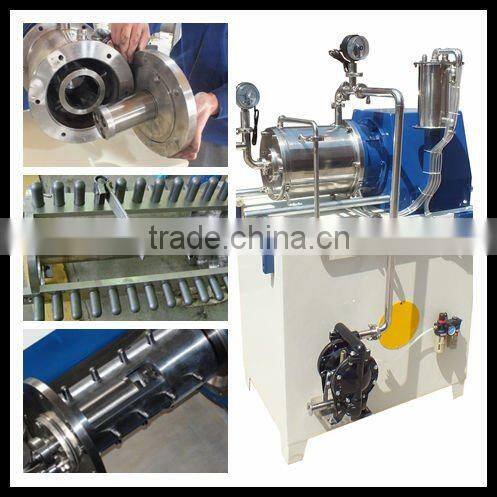

ELE-EDW Pigment Grinding Mill is suitable for industrialized continuous production.

The machine applies to pigment with various viscosity, can get ideal particle size in shorter time, more efficiency. It is one of the highly sophisticated products among the high efficiency milling equipment. It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.




Super Fineness for Pigment Grinding Mill





Feature

  • Pigment Grinding Mill is the kind of wet milling machine which is closed continuous production.
  • Transportation pump: Diaphragm Pump

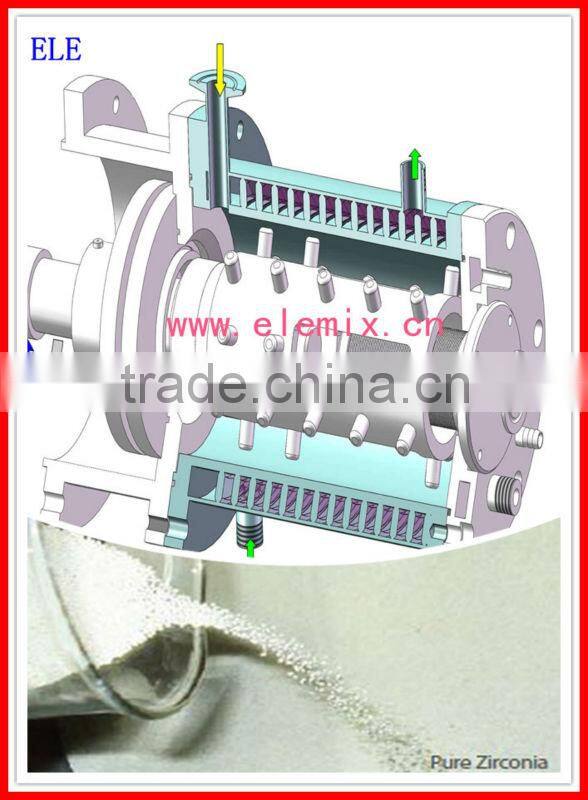

  • Cylindric chamber with pin or disc spread on the shaft.
  • German Burgamann mechanical seal, it can bear more than 10kgs pressure
  • Unique discharging structure, solve the traditional problems, such as discharge slowly,     stuck the grinding media, leak media...so on
  • Grinding chamber adopts special material, the hardness can reach HRC62, ensure that the hardness of the inner tank will be equal before be thoroughly grinded.
  • Two kind of cooking system, efficiently down the temperature
  • With features of solvent-proof, zero pollution and high wearing resistance.

  Super Fineness for Pigment Grinding Mill






Technical Parameters



Model

Volume of Tank(L)

Power(kw)

Speed(rpm)

Capacity(L/h)

Dimension(mm)

Weight(kgs)

EDW-5

5

7.5

 1440

 200

1300*1050*450

 650

EDW-15

15

18.5

 1440

 500

1600*1450*650

 1200

EDW-20

20

 22

 1260

 800

1600*1450*650

 1350

EDW-30

30

 37

 1260

 1200

1650*1550*750

 1700

EDW-40

40

 45

 980

 1500

1750*1650*850

 2100

EDW-50

50

 55

 980

 2000

1900*1850*850

 2300

EDW-100

100

 110

 860

 3000

2300*2150*950

 3800





Some of Our Customers



Super Fineness for Pigment Grinding Mill





Remarks

1. If oil product, we design motor and on-spot control box expolsion-proof.

2. The power supply can be changed for different country.

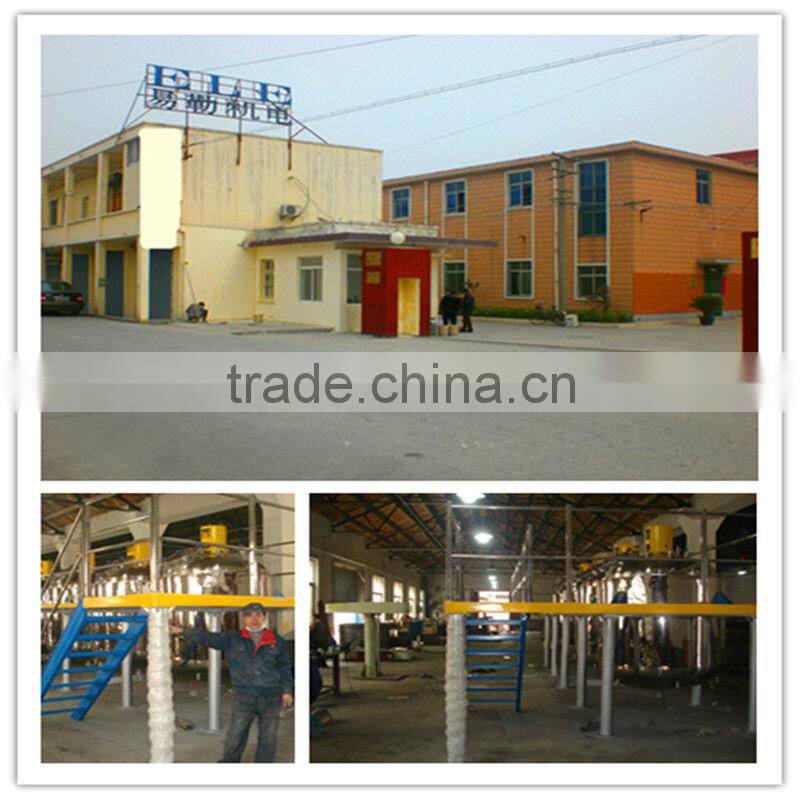

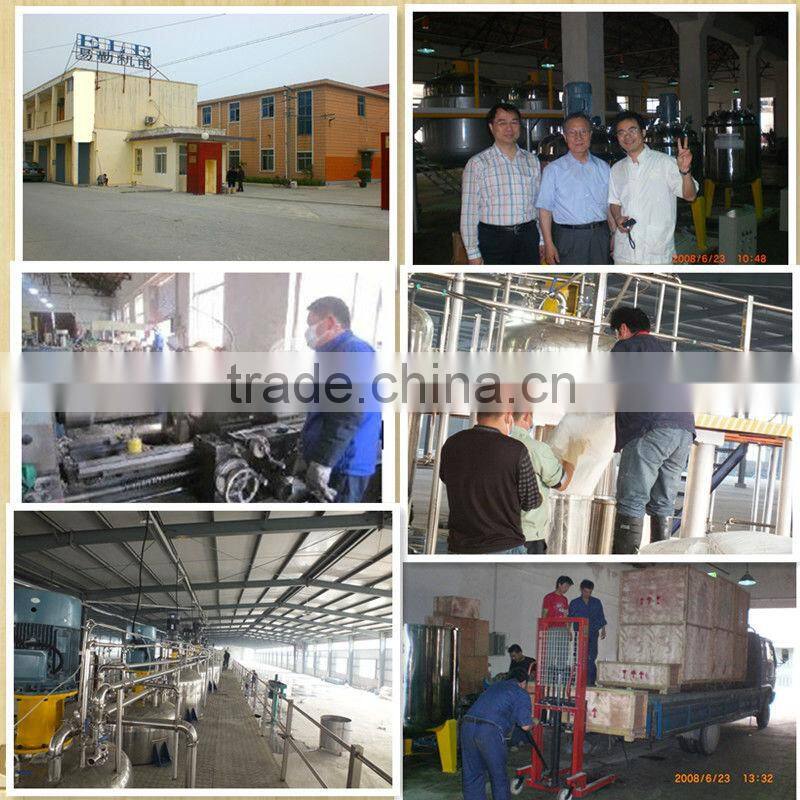

About ELE

 Super Fineness for Pigment Grinding MillSuper Fineness for Pigment Grinding MillSuper Fineness for Pigment Grinding MillSuper Fineness for Pigment Grinding Mill







Remarks:



We have CE certificate.
