Specifications
1.German Burgmann mechanical seal2.special material of the inner tank
3.Grinding machinery
4.Paint Machine
5.Sand mill

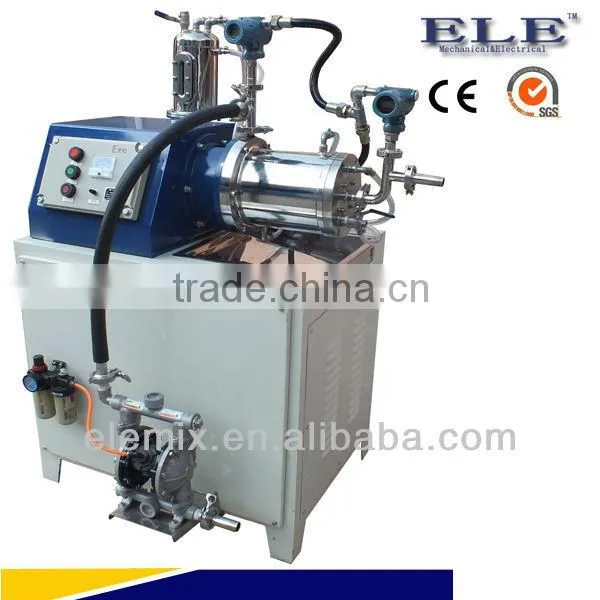

EDW Grinding Machine
ELE-EDW Mill is suitable for industrialized continuous production. The machine applies to materials with various viscosity, can get ideal particle size in shorter time, more efficiency.
It is one of the highly sophisticated products among the high efficiency milling equipment.
It is especially famous in the field of process which is high viscosity , high solid content and high refining requirement. Unique designed filter can seperate 0.2mm media.
Model |
EDW Grinding Machine |
Power Supply |
380v, 50Hz, 3PH ( can be customized) |
Rotating Speed |
1440rpm |
Type |
Pin & Disc |
Transportation |
Diaphragm Pump |
Seal |
German Burgamann |
Media |
Zirconia ( 85% of tank) |
|
Features |
1.Germann Burgmann mechanical seal, it can bear more than 10kgs pressure, but usually the pressure of the grinding material is less than 4kgs,successfully avoids the leaking problem |
2. ELE machine use dynamic fence discharging, which solve the traditional problems, such as discharge slowly, stuck the grinding mediums and so on. | |
3. The grinding inner tank of ELE machine adopted some special material which is completely penetrated, the hardness can reach HRC62, ensure that the hardness of the inner tank will be equal before be thoroughly grinded. | |
4. spiral cooling, take most of the heat produced by the high viscosity product | |
5. Cylindric chamber with pin or disc spreading on the shaft. |
Specifications
Model |
Volume of Tank (ml) |
Main Power(kw) |
Rotation Speed (rpm) |
Capacity (L/h) |
Dimension(mm) |
Weight (kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
Remarks
1. The motor can be explosion-proof
2.Milling media can be Zirconia.
3. The Horizontal Mill can be customized according to your requirement.
CE CERTIFICATE:
