Horizontal Bead Mill / Sand Mill
Wet grinding mill for Printing Ink, Paint, Coating, Pigment etc.
EDW Series Pin Type
Chamber Volume - 5L/ 15L/ 30L/ 50L
Pin rotor structure - better for medium and high viscosity materials
Optional:
Ex-proof or Non Ex-proof
Contact parts: Silicon Carbide (SiC) or Zirconia or High Wear Resistat Steel
Introduction
ELE-EDW Series Bead Mill with Pin Rotor, suitable for industrialized continuous production.
The machine applies to materials with various viscosity, can get ideal particle size in shorter time, more efficiency.
It is one of the highly sophisticated products among the high efficiency milling equipment.
It is especially famous in the field of process which is high viscosity, high solid content and high refining requirement.
It is suitable for product, like pigment, paste, paint, coating, Ink, Agrochemical Concentrate, etc.

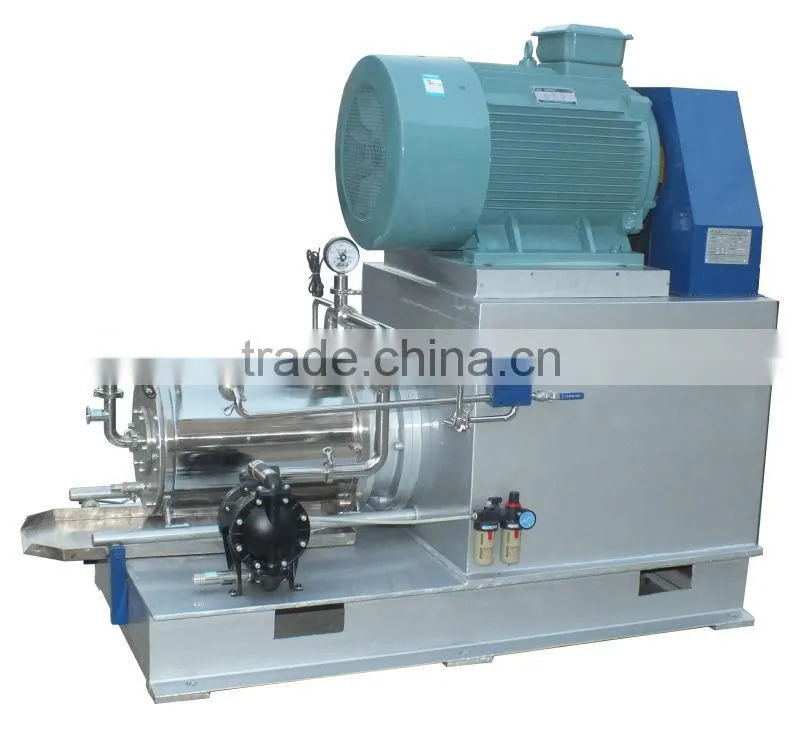

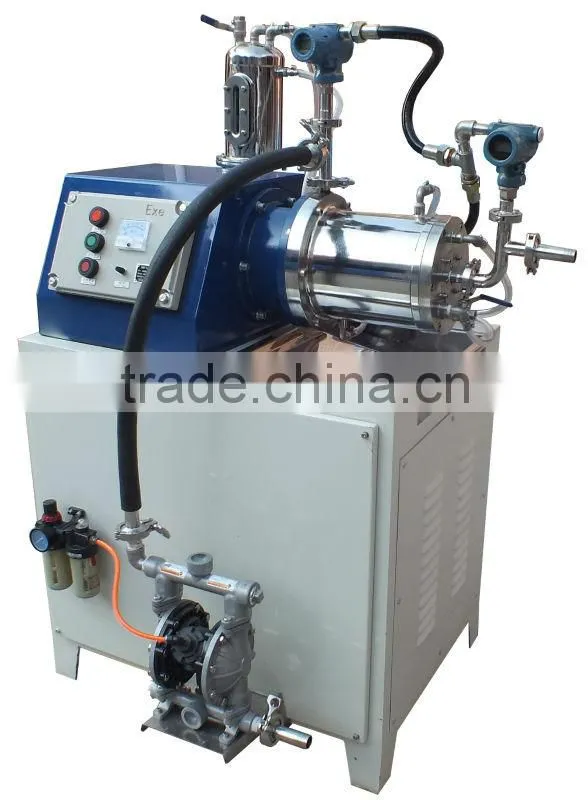

Horizontal Bead Mill Pin Type EDW-5, EDW-15
Horizontal Bead Mill Pin Type EDW-30
Horizontal Bead Mill Pin Type EDW-50
Features
- Reasonable structure makes the machine more stable, easy to operate and maintain.
- Special design for middle and high viscosity material with ultra-fine requirement.
- Mechanical Seal
ELE adopts double cartridge mechanical seal for bead mill from Germany BURGMANN, can withstand pressure above 10kg. The seal specifically designed for particles in fluid, is one of the most advanced technology in worldwide. - Discharging Separation

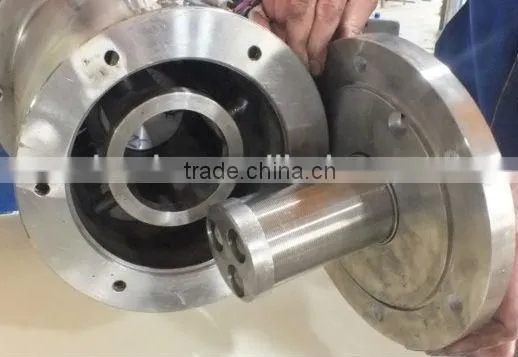

Unique tubular fence type discharging separation structure with small gap and large area, will not stuck beads or leak beads, ensure that the material discharging smoothly meanwhile lessen the impact between beads and sieve, prolong the service life.
Regular gap sizes for outlet filter are 0.1mm,0.3mm and 0.5mm, minimum 0.05mm, that allow tiny grinding beads with minimum size 0.2mm can be used. The usage of small medium micro beads can make the materials achieve ultrafine grinding requirement more easily and reliably. - Powerful Energy

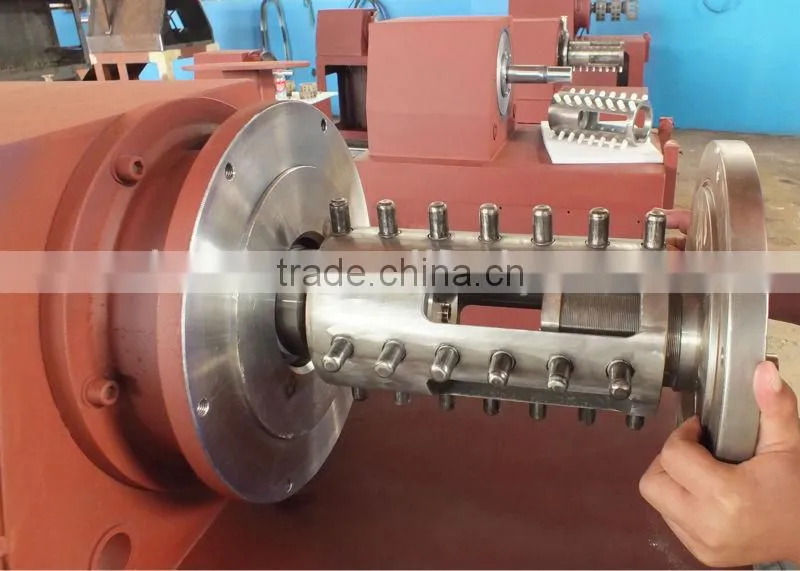

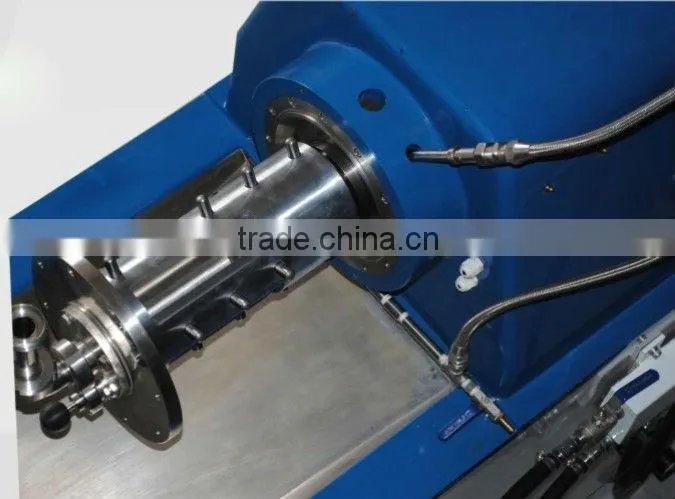

Adopt pin type, the pin at high speed hitting & grinding, giving the medium more powerful kinetic energy, which is the key for material refinement. - Large Amount Medium Loaded
Can add 85-90% grinding media in chamber, the large proportion accelerate refining efficiency for the material. - High Wear Resistant Material For Grinding Chamber
Chamber wall and pin rotor adopt Silicon Carbide/ Zirconia/ Steel with high wear resistance, help to get long service life.
Silicon Carbide/ Zirconia chamber can avoid the color and metal pollution. - Cooling Effectively
With cooling system for chamber wall, end cover and special cooling for mechanical seal, adopt large area corrugation structure to get high efficiency.
Silicon Carbide chamber wall with excellent heat conductivity, ensure the chamber be cooled down easily, avoid over temperature. - Control System
Control system be explosion-proof or non-explosion-proof, button control or PLC.

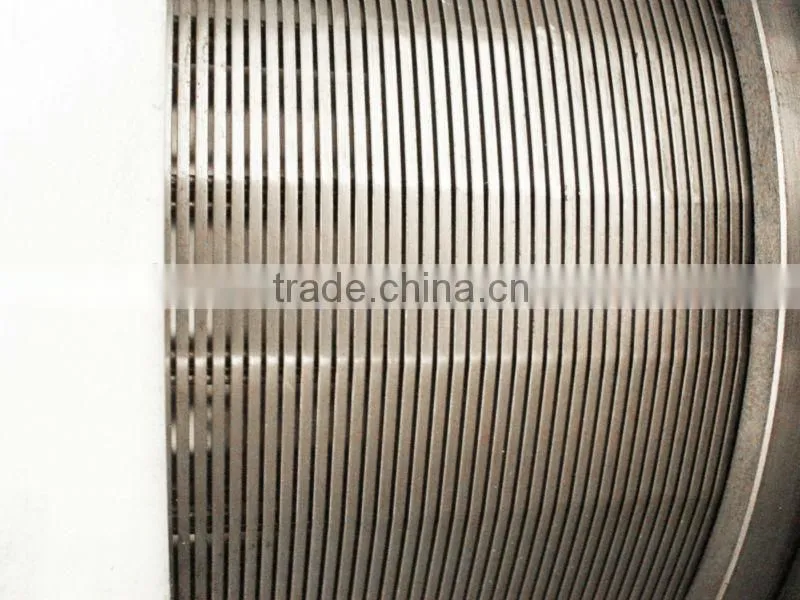

Discharging Separation
tubular fence type with small gap and large area
Technical Parameters
Model |
Volume of Tank (L) |
Power(kw) |
Speed(rpm) |
Capacity(L/H) |
Dimensio(mm) |
Weight(kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
More About ELE
ELE Mechanical & Electrical Equipment Co., Ltd. has become one of the largest grinding equipment manufacturers after 20 years research, production and marketing, the present ELE serves global customers with strong R & D ability, powerful production capacity and perfect after-sales service system.
Remarks
The power supply Voltage can be customized for different country.
