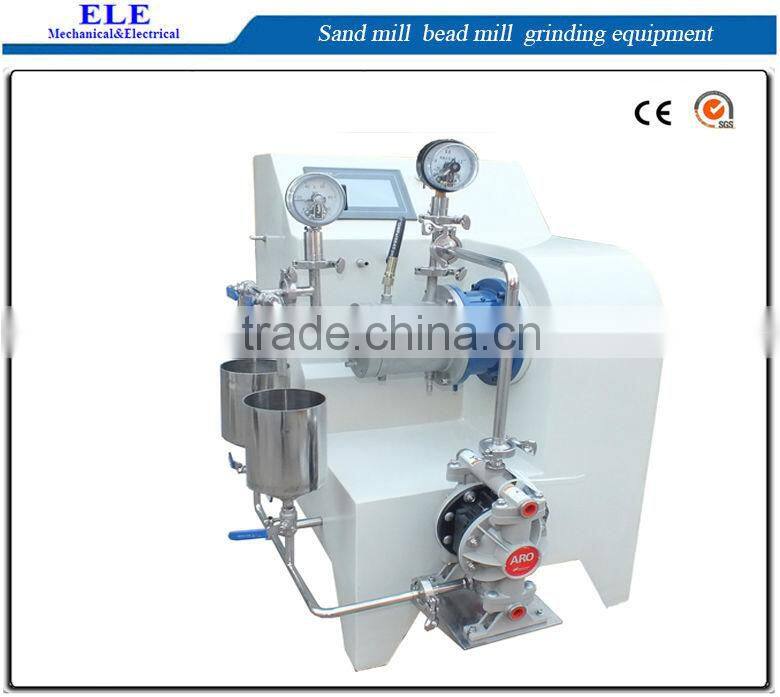

EDW Coating Grinding Mill
EDW grinding mill is a kind of wet-grinding. widely used in the chemical industrial production, Like Piant, Ink, Coaing,pigment, color paste, resin,food...It's unique structer with the character of high efficiecny, good grinding result, steady performance.
Parameters
Model |
EDW Horizontal Sand Mill |
Power Supply |
380v, 50Hz, 3PH ( can be customized) |
Rotating Speed |
1440rpm |
Type |

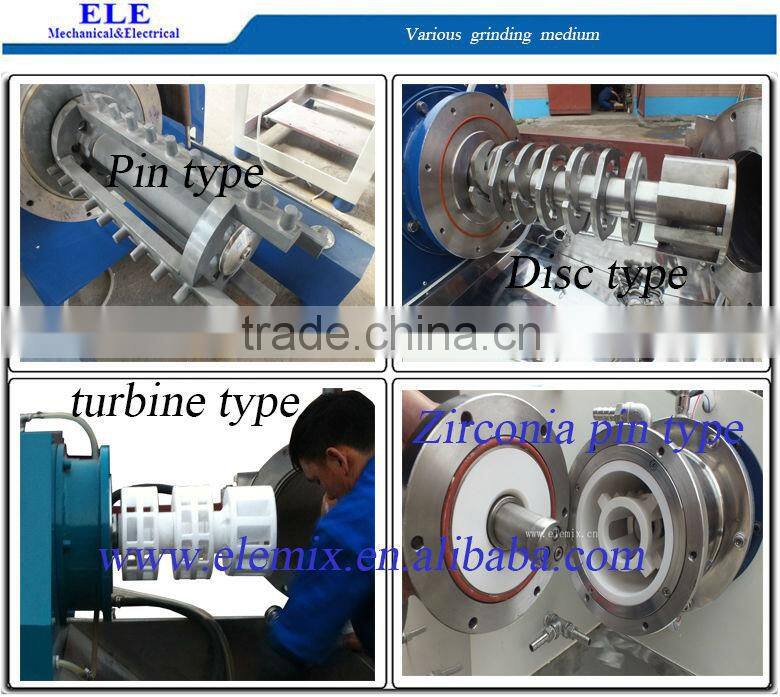

Pin & Disc |
Transportation |
Diaphragm Pump |
Seal |
German Burgamann |
Media |
Zirconia ( 85% of tank) |
Specifications
Model |
Volume of Tank (ml) |
Main Power(kw) |
Rotation Speed (rpm) |
Capacity (L/h) |
Dimension(mm) |
Weight (kgs) |
EDW-5 |
5 |
7.5 |
1440 |
200 |
1300*1050*450 |
650 |
EDW-15 |
15 |
18.5 |
1440 |
500 |
1600*1450*650 |
1200 |
EDW-20 |
20 |
22 |
1260 |
800 |
1600*1450*650 |
1350 |
EDW-30 |
30 |
37 |
1260 |
1200 |
1650*1550*750 |
1700 |
EDW-40 |
40 |
45 |
980 |
1500 |
1750*1650*850 |
2100 |
EDW-50 |
50 |
55 |
980 |
2000 |
1900*1850*850 |
2300 |
EDW-100 |
100 |
110 |
860 |
3000 |
2300*2150*950 |
3800 |
Remarks
1. The motor can be explosion-proof
2.Milling media can be Zirconia.
3. The Horizontal Mill can be customized according to your requirement.
