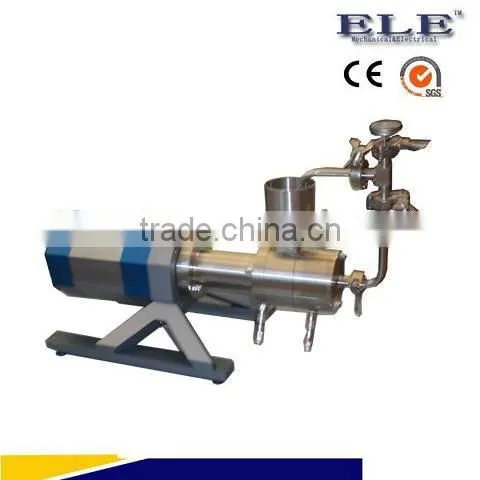

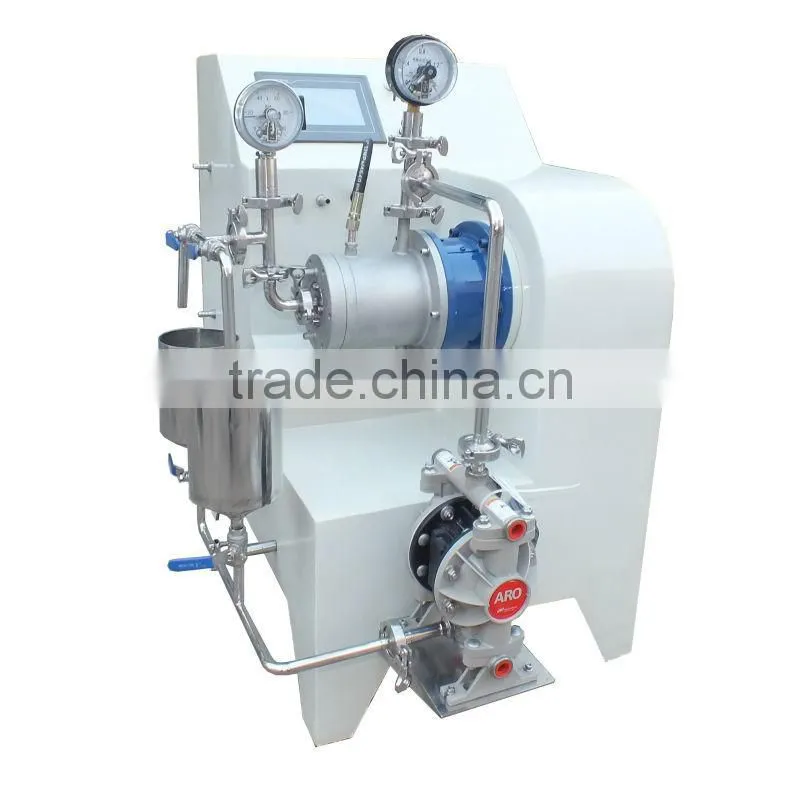

ESW-1.0 Lab Horizontal Bead Mill, Labratory Horizontal Bead Mill / Sand Mill
Paint Mill, Milling Machine, Grinding Mill, Grinding Machine
Description
ESW-1.0 Lab Horizontal Bead Mill is a professional kind of wet-grinding machine for lab samples. The machine applies to materials with various viscosity
and can get ideal particle size in shorter time, more efficiently. It is easy to start with low energy
consumption rate and high grinding effect.
Features
1. Adopt German Burgmann Mechanical seal with compact structure and liquid recycle pump which can ensure the seal can work normally for a long time
2. Adopt dynamic trapezoid fence booms discharge to solve conventional problem of slowly discharge, stuck grinding medium etc..
3. The inner tank uses special compound stainless steel which is completely penetrated after the heat treatment to ensure the hardness is equal to the hardness before be thoroughly grinded.
Therefore, the durability can be ensured & metal pollution can be avoided
4. Adopt spiral cooling system, taking most of the heat of the grinding tank.
5. High grinding efficiency which is useful to reduce materials' waste; the concentrated energy within the small grinding cavity can be optimized.
6. Compact grinding structure which can make the media distribute more reasonable, ideal circulation, channel-type process structure, easy to clean
7. Finely dispersing and grinding materials with different viscosity from micro to nanometer
8. Suitable for continuous or cyclical process
Technical Parameters
Model |
ESW -1.0 Lab Horizontal Mill |
Voltage |
380v/50HZ, 3PH ( can be customized) |
Motor |
3000W |
Mechanical Sealing |
Germany Burgmann mechanical seal, it can bear pressure higher than 10kgs |
Material of Chamber |
High chrome steel after heat treatment, its hardness can reach HRC62-68 |
Grinding Material |
Special high wear-resistant alloy steel |
Discharging Way |
dynamic trapezoid fence booms discharge; |
Inlet&outlet pipe |
Diameter for inlet pipe and outlet pipe is G1/2 separately |

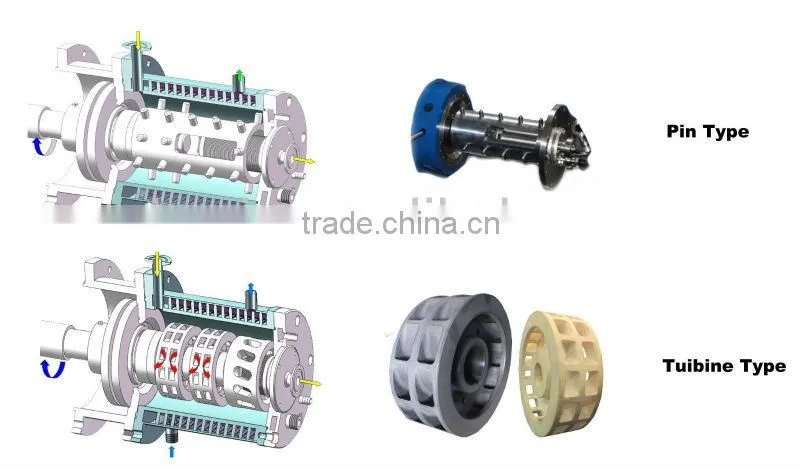

Mixing Type |
Pin Type |
Cooling Way |
Multiply Bellows |
Volume of Grinding Tank(ml) |
1000ml |
Speed(rpm) |
0~3000 |
Flow of Cooling Water |
200L/H |
Dimension(mm) |
800×950×1100 |
Weight(kg) |
200 |
Note: Capacity mainly depends on product to be grinded, like raw mateiral quality, viscosity, required fineness, feeding flow rate, despersion formulation.
Other Laboratory Beads Mill / Lab Sand Mill / Lab Grinding Machine for reference:
ESW-750 Lab Bead Mill
ESM Series Basket Beads Mill / Lab Basket Mill
More About ELE
Remarks
1. If oil product, we design motor and on-spot control box expolsion-proof.
2. The power supply can be changed for different country.
3. As a professional manufacturer, we have CE, ISO2008.
