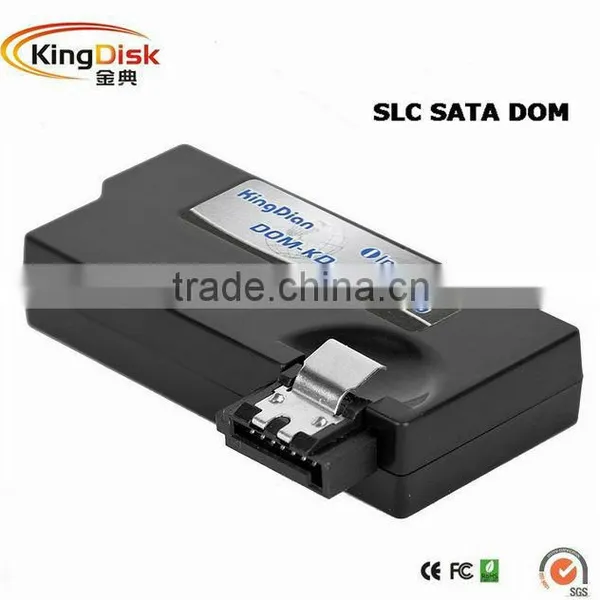

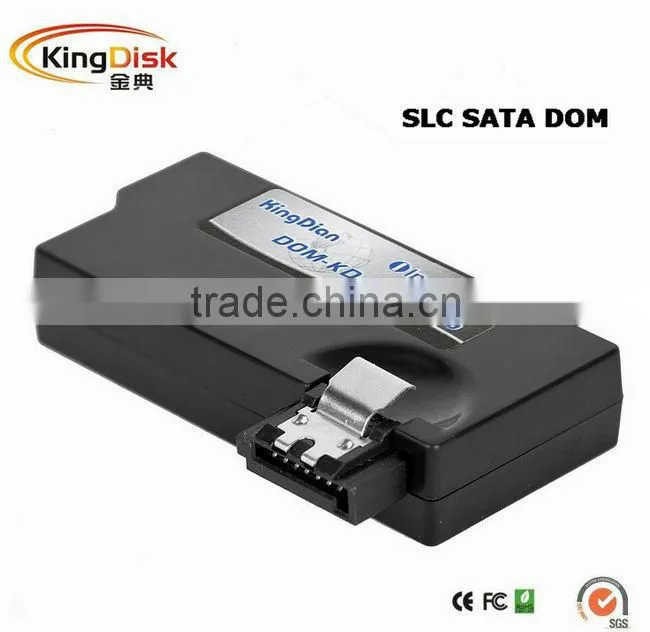

KingDisk 7Pin 4GB SLC SATA DOM Flash 2 Channels

Name: KingDisk 7Pin 4GB SLC SATA DOM Flash 2 Channels
Brand: KingDisk
SKU: 125941519
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Laptop

Type:

Internal

Shenzhen Kingdisk Century Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Laptop

Type Internal

Style SSD

SSD Capacity Other, ≤ 4GB

Size Other, N/A

Interface Type SATAII

Speed Other, N/A

Cache Other, N/A

Brand Name KingDisk

Model Number DOM-KD-SA.1-SJ

Place of Origin Guangdong, China

Specifications

1.4GB SLC SATA DOM 2 Channels
2.Max Read:42MB/s *Max Write:26MB/s
3.Capacity:4GB SLC
4.CE,FCC,RoHS
5.With 3 years warranty

Product Name : KingDisk 7pin 4GB SLC SATA DOM Flash 2 Channels

DOM-KD-SA.2-SJ5
Item	Model	DOM-KD-SA.2-SJ5

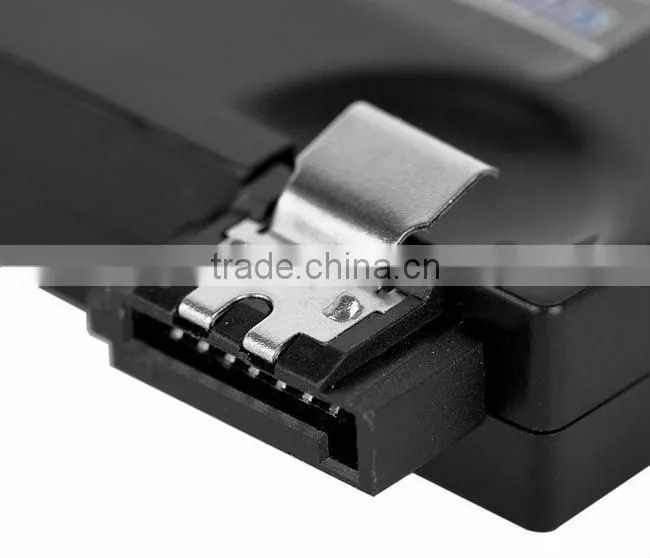

General	interface	7PIN SATA
Performance	Capacity(GB)	2GB	4GB	8G
	Sustained Read	37MB/S	42MB/S	51MB/S
	Sustained Write	18MB/S	26MB/S	30MB/S
	4KB Sequential Read IOPS	7179
	4KB Sequential Write IOPS	5800
	Average Access time	0.3ms
Storage Media	NAND Flash	SLC(JS29F64G08FAMC1×2PCS)
Power Consumption	input Voltage	5V± 5%
	Idle	0.4W
	Active	0.75W
Reliability& Endurance	Write endurance	8years @100GBytes write and erase per day at 32GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,000,000hours
	ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70ºC
	Non-operating Temperature	-40~85ºC
	Shock	2,000G(@0.3ms half sine wave)
	Vibration	20G(40-2000HZ)
	Humidity	5-95%
Warranty	2years
Available unit	Available,NO EOL
Testing Platform	Intel Pentium E5200 2.5GHz,DDR2 800 2GB×1pcs,G41+IHR7 chipset,Microsoft Windows XP Professional SP2
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Physical Dimensions & Weight	Height(mm)	9.5± 0.25
	Width(mm)	24.3± 0.25
	Length(mm)	50.6± 0.25
	Weight(g)	10
Note: The read and write speed is limited to this test platform.
