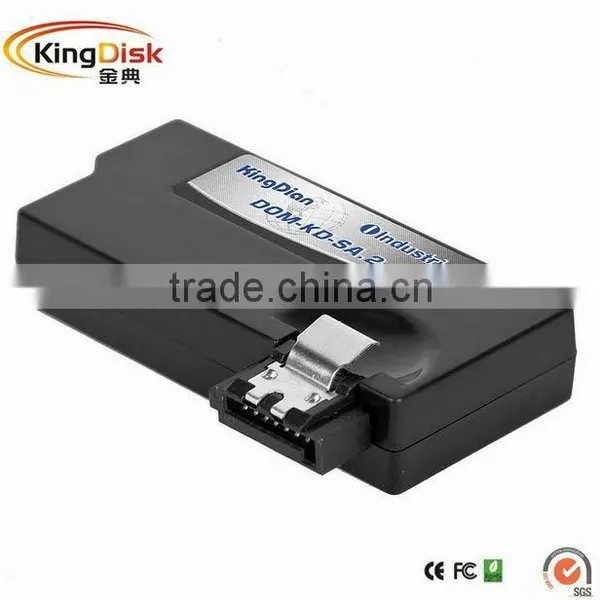

Hot Sales SATA DOM 32GB (Disk On Module)MLC Nand Flash for Thin Client,Industrial Computer,ect,computer Terminal

Specifications

1.SATA DOM 32GB(Disk on Module)
2.Max Read:51MB/s,Max Write:30MB/s
3.Capacity:1GB-32GB
4.CE,FCC,RoHS
5.With 2 years warranty



Product Name :  Hot Sales SATA DOM 32GB (Disk On Module)MLC Nand Flash for Thin Client,Industrial Computer,ect,computer terminal

General
Product model	DOM-KD-SA.2-MJ5
Interface	7 Pin SATA
Storage media	MLC-NAND Flash
Capacity(GB)	2GB 4GB 8GB 16GB 32GB
Performance
Max Sustained Read	46MB/s
Max Sustained write	26MB/s
4KB Sequential Read IOPS	5960
4KB Sequential Write IOPS	2419
Average Access time	0.3ms
Power Consumption
input Voltage	3.3v/5v
Work power	Max 0.75W
Standby power	Max 0.4W
Reliability& Endurance
Write endurance	8years@100GBytes write and erase per day
Read endurance	unlimited
S.M.A.R.T	Support
Wear-Leveling Algorithm	Dynamic and static wear-leveling
Data Retention	10years at 25ºC
MTBF	1,000,000hours
ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management	Auto Bad Block Management in system
Environment
Operating Temperature	0~70°C
Non-operating Temperature	–45~85°C
Shock	2,000G(@0.3ms half sine wave)
Vibration	20G(40-2000HZ)
Humidity	5-95%1
Physical Dimensions & Weight
Height(mm)	9.5mm
Width(mm)	23.5mm
Length(mm)	51mm
Weight(g)	10
Testing software&platform
Testing Software	HDBench3.4.0.3, IOMeter 2006.07.27
Testing Platform	AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3
