Specifications
Motherboard Repair Equipment
Movable heaters,3 heating
Equipped with different alloy nozzles
Alarming protection function

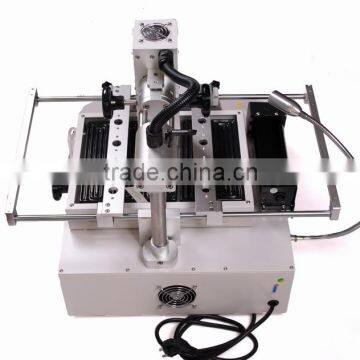

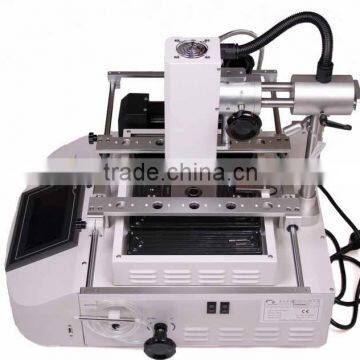

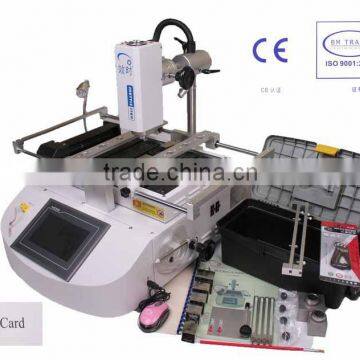

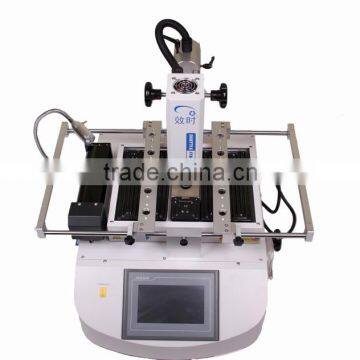

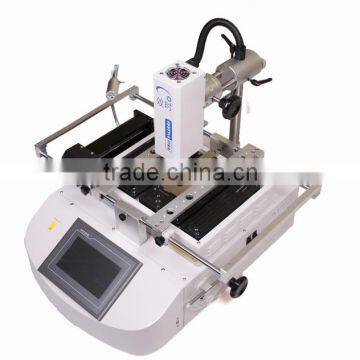

Shuttle Star SP360C Laptop Motherboard Repair Equipment for BGA Chips
Specification:
Max PCB size: |
430mmX350mm |
Min PCB size: |
20mmX20mm |
Max BGA size: |
55mmX55mm |
Min BGA size: |
7mmX7mm |
Max BGA weight: |
80g |
Power for operation: |
3600W |
Upper hot air heater |
800W |
Lower hot air heater |
800W |
Bottom IR heater: |
2000W |
Machine dimension: |
650*500*600mm |
Machine weight: |
36KG |
Power supply: |
AC singal-phase220V 3.6KW |
****************************************************************************************************************************************

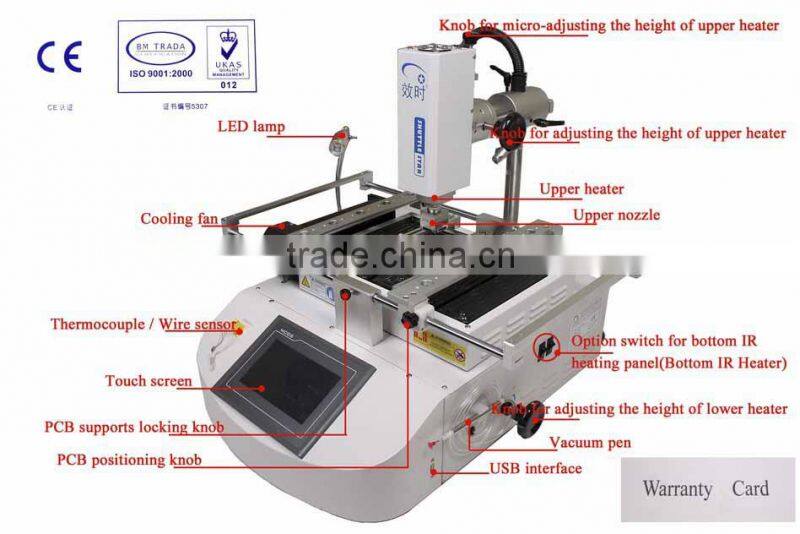

Description
* High quality heating material produces high-tem breeze, precisely controlling the soldering and desoldering process.
* Movable heating head, able to move horizontally; easy to operate;
* Embedded industrial computer, touch screen interface, PLC control; real-time temperature curve display, able to display set curve and practically-tested curve; 7.2 high definition screen, convenient for operation and observation;
* Industrial computer able to store unlimited temperature curves, curve analysis can be done on touch screen; both English and Chinese can be input;
* The temperatures of the upper and lower heater can be precisely controlled according to set temperatures; bottom constant temperature infrared heating area; appropriate temperature control apparatus can ensure safe rework for BGA;
* The BGA soldering supporting frame can micro-adjusted to avoid local sinkage;
* Powerful cross flow can cool the lower heating area;

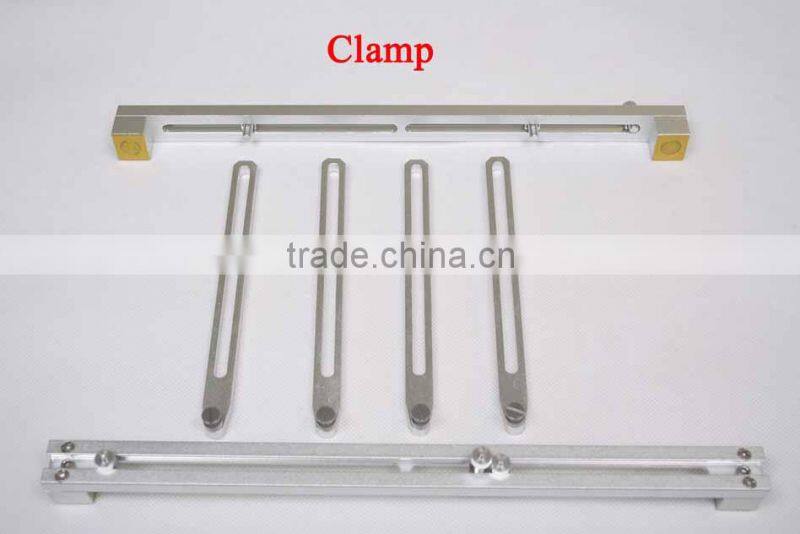

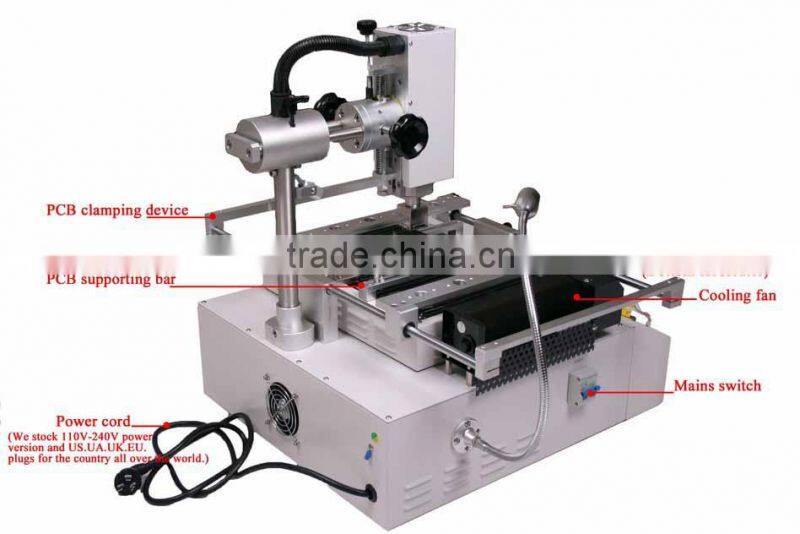

* The adjustable PCB positioning supports, easy and fast to install PCB; special fixture for installing allotype boards ;
* with sound alarming function after finishing soldering or desoldering; hand vacuum pen easy for picking up BGA;
* Set with over temperature alarming and protection function;

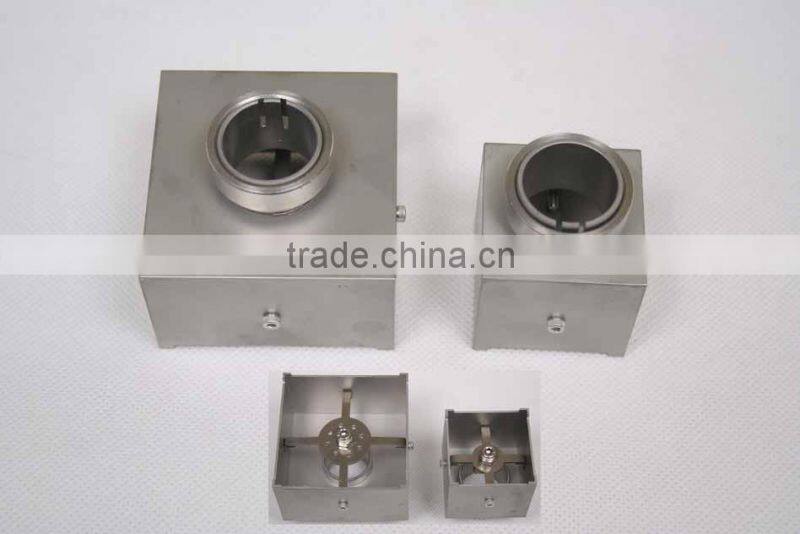

* Equipped with different hot gas nozzles, easy to replace; can be customized according to specific needs;
* The integrated design of machine and chassis is room-saving.
Shenzhen Shuttle Star Technology Co., Ltd .is a professional manufacturer engaging in electronic equipment design, production, sale and service. It has dedicated into the R&D and production of desktop electronic equipments and frocks, and the staff are provided with rich industrial experience and pioneering spirit. The product structure and performance are improved constantly according to the market demand by introducing and absorbing the advanced technology abroad on the base of the independent innovation, at the same time we always insist on the tenet of “quality based on technology and product improved by service”and providing perfect product and service for the customer.
Ever since founded in 2000, Shuttle Star Technology has achieved the core technology with independent intellectual property with the support of new/old customers and the common effort of all staffs, especially in the aspect of special equipments for BGA rework. As the earliest domestic BGA rework station manufacturer, it breaks the historical pattern that the BGA rework station depends on the import completely at first. Now, its product series has covered the high-grade, middle-grade and low-grade and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
