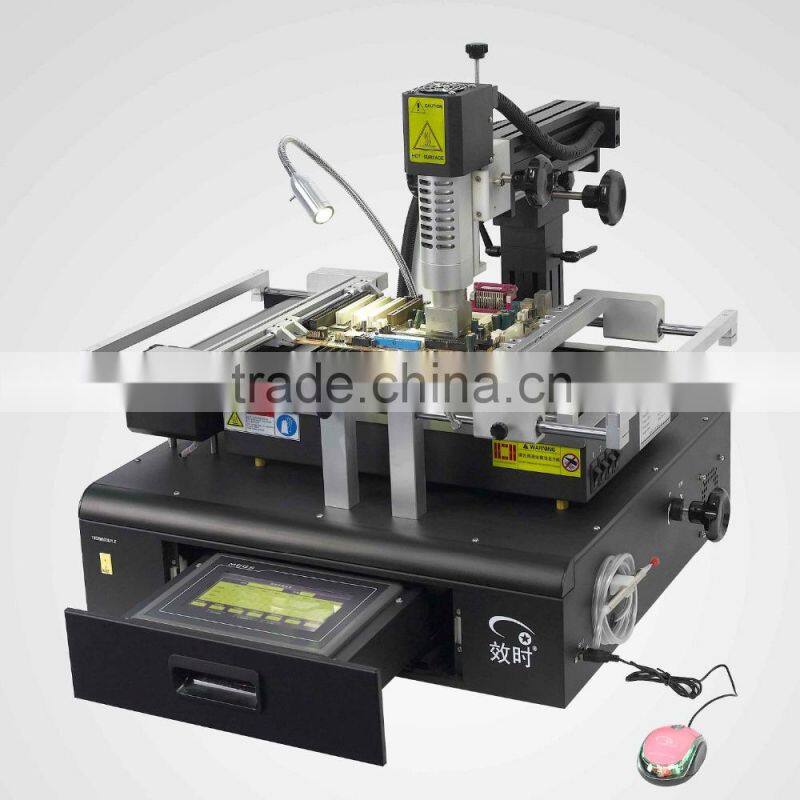

Welder/Electric Heater/BGA Rework Station (RW-B400C)
Specification
PCB dimension: W50×D50~W450×D400mm
PCB thickness: 0.5~4mm
Working table adjustment: ±50mm forward/backward, ±200mm left/right
Temperature control: K-type thermocouple, close cycle controlled
PCB locating way: jig
Preheater: far infrared 2700W
Upper heater: hot air 400W
Lower heater: hot air 800W
Power supply: single-phase 220V, 50/60Hz, 4.5KW
Machine dimension: L660×W630×H600mm
Weight: Appox. 60Kgs
---------------------------------------------------------------------------------------------------------------------------------------
BGA Rework Station
* Made of high quality heating material; desoldering and soldering procedures of BGA are
precisely controlled;
* Air flow and temperature are adjustable in a wide range to produce high temperature breeze;
* Movable heating head,easy to operated;
* Touch screen interface, PLC control; real-time temperature curve display, be able to display
temperature curves and detecting curves at the same time;
* 6 segments of temperature up (down) and 6 segments constant temperature control, 50
groups of temperature curves are stored, Curve analysis can be carried out on the
touchscreen.
* The temperatures of the upper and lower hot air guns can be precisely controlled according
to their specific temperatures. The infrared constant temperature heating zone at the lower
part and the appropriate temperature-control settings make the rework safer and more
reliable.
* The supports for the BGA soldering supporting frame are micro-adjustable to restrain local
sinkage.
* Powerful cross flow fans cool the lower heating area rapidly;
* The adjustable PCB positioning support, onto which the special fixtures for allotype board
could be installed, enables easy and fast positioning of the PCB board;
* Buzz after soldering is finished or desoldering;Hand vacuum pen is adjustable for removing
BGA;
* Both the upper and lower parts are equipped with over-temperature alarming and protection
apparatus.

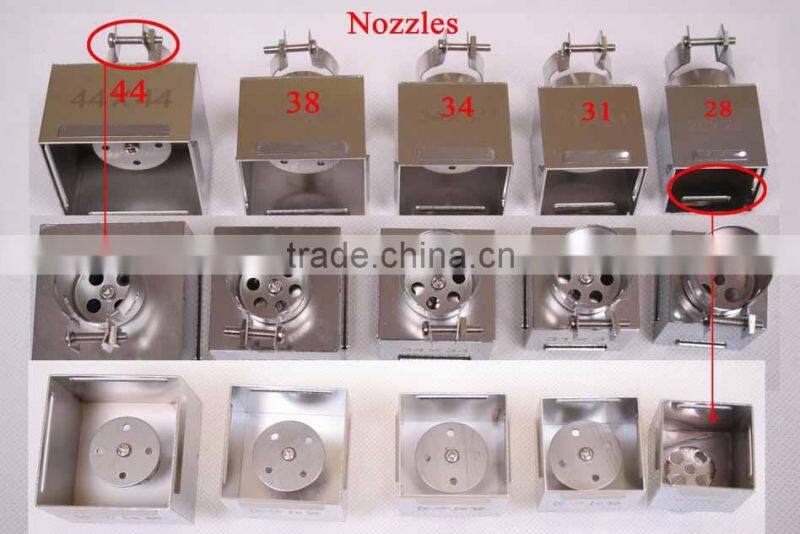

* With different alloy hot gas nozzles, easy to replace.It could be tailored as per the specific
requirements.
* The integrated design of machine and chassis is uld be altered to instrument-control.
---------------------------------------------------------------------------------------------------------------------------------------
Shenzhen Shuttle Star Technology Co., Ltd .is a professional manufacturer engaging in electronic equipment design, production, sale and service. It has dedicated into the R&D and production of desktop electronic equipments and frocks, and the staff are provided with rich industrial experience and pioneering spirit. The product structure and performance are improved constantly according to the market demand by introducing and absorbing the advanced technology abroad on the base of the independent innovation, at the same time we always insist on the tenet of “quality based on technology and product improved by service”and providing perfect product and service for the customer.
Ever since founded in 2000, Shuttle Star Technology has achieved the core technology with independent intellectual property with the support of new/old customers and the common effort of all staffs, especially in the aspect of special equipments for BGA rework. As the earliest domestic BGA rework station manufacturer, it breaks the historical pattern that the BGA rework station depends on the import completely at first. Now, its product series has covered the high-grade, middle-grade and low-grade and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
