Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SCVE
Model Number:
SF92-N-M
Frequency:
50Hz
Contact Supplier Request Quote Chat Now
Zhejiang Huzhou SCVE Machine & Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SCVE
Model Number SF92-N-M
Frequency 50Hz
Output Power 580-910 W
Protect Feature Waterproof
Phase Three-phase
Certification CCC, CE, ROHS, UL
AC Voltage 208-230 / 240 V
Place of Origin Zhejiang, China
Efficiency IE 4

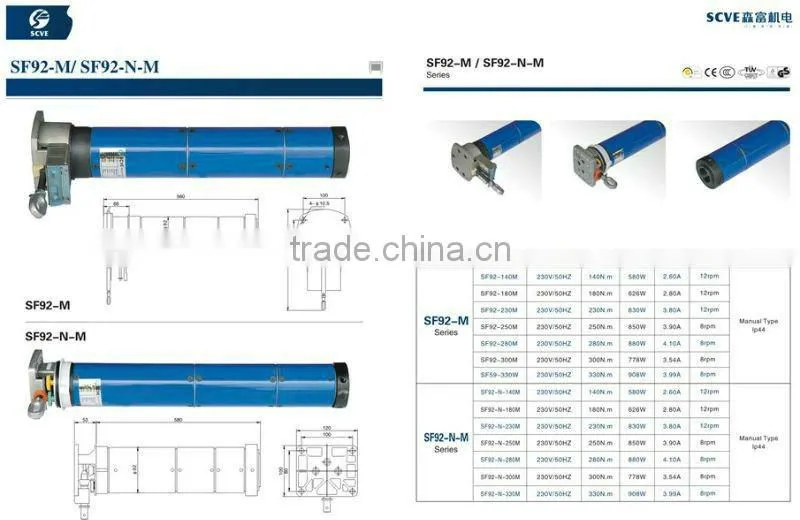

SCVE Tubular Motor Specifications:



•Model: SF92-N-W

•Torque:140Nm,180Nm,230Nm,250Nm,280Nm,300Nm,330Nm

•Rotating: 8/12 Rpm

•Rated Voltage: 230V

•Rated Frequency: 50Hz

•Rated Power: 580-910 W

•Rated Current:2.6-3.6 A

•Limit Turns: 12/16 Turns

•Protection Index: IP44

•Running Time: ≥ 4

•Net Weight: 13/14.6 Kg

•Lifting:159-437 Kg

•The Motor Length: 485mm

•Motor Color: Blue and follow with customers' demands

•Motor Voltage: 230V anfd follow with customers' dmands



•Remark:1)Working temperature:-30°C-50°C

         2)Remote radio control of operators

         3)Precise limit switch. Repeat limiting precise degree

         4)Quite running:40db-57db

         5)With braking, more reliable

Tubular motor/92mm tubualr motor for roller shutter/CE 92mm tubular motor/tubular motor 92mm manual

Certificate: TUV/UL/ CE/CCC/ GS/ ROHS/FCC

Packaging:neutral box or gift box as your demands.

Payment terms: T/T (with 30% deposit,70% B/L copy),L/C at sight

Loading port: Shanghai

Sample lead time: 5-7 days

Order lead time: 25-30 days

Offer quotation on FOB Shanghai or CIF port.

Tubular motor/92mm tubualr motor for roller shutter/CE 92mm tubular motor/tubular motor 92mm manual

Tubular motor/92mm tubualr motor for roller shutter/CE 92mm tubular motor/tubular motor 92mm manualTubular motor/92mm tubualr motor for roller shutter/CE 92mm tubular motor/tubular motor 92mm manual
