Help CenterLift 400kg Tube Motor
Negotiable
MOQ: 300 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SCVE
Model Number:
SF92S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
92mm Roller Shutter& Door MotorNegotiableMOQ: 300 Sets -
92mm Tube Motors for Roller Shutter DoorsNegotiableMOQ: 300 Sets
-
Tubular MotorNegotiableMOQ: 100 Pieces
-
SCVE Hot Sale Tubular Motor Rolling Shutter MotorUS$ 95 - 120MOQ: 100 Sets
-
Tubular Motor & 330Nm Tubular Motor & 92mm Tubular MotorUS$ 97 - 115MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
SCVE
Model Number
SF92S
Specifications
1.92mm tube motors for shutters2.Max. lift capacity of 400kg
3.Electromagnetic brake system
4.Strong intensity and oil proof
The max.lift capacity reached 400kg in conjunction with different size of tubes.
Technically,Side-magnetic and electromagnetic brake system are adopted to make sure the motor security.
With features of simple design, easy installation, stable operation, accurate limit.
|
Motor Model
|
Torque
(N.m) |
Rotating
(rpm) |
Rated Voltage (V) |
Rated Frequency (Hz) |
Rated Power (W) |
Rated Current (A) |
Number Of Tums (turn) |
Protectio Index (IP) |
Running Time (min) |
Net Weight (Kg) |
SF92-140S |
140 |
12 |
230 |
50 |
580 |
2.6 |
12 |
IP44 |
≥4 |
13/13.5 |
SF92-180S |
180 |
12 |
230 |
50 |
626 |
2.8 |
12 |
IP44 |
≥4 |
|
SF92-230S |
230 |
12 |
230 |
50 |
830 |
3.6 |
12 |
IP44 |
≥4 |

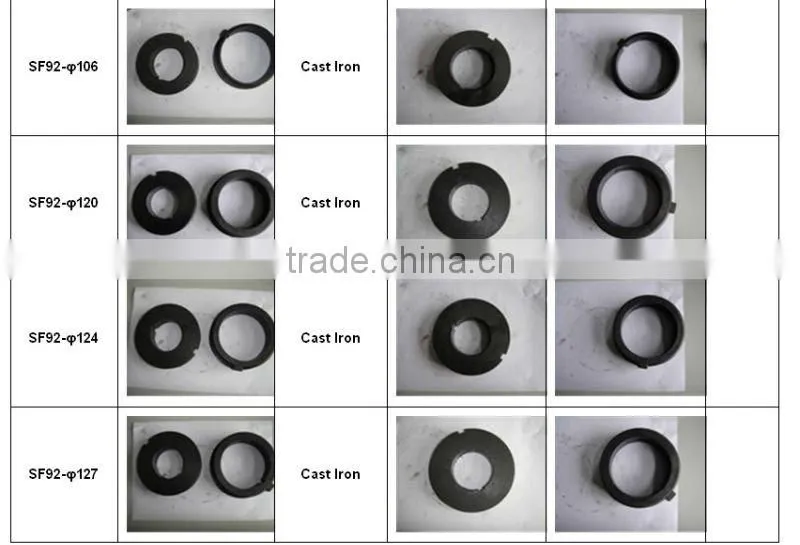

ASSEMBLED ACCESSORIES
