Tubular motor for industrial door and garage door,door opener,92mm tubular motor,
- 200 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
- Replacement of Derrick electric vibrator motor
- MPL-A430H-MK24AA rotary servo motor MPL-A430H-MK24AA
- MPL-A420P-MK24AA Servo Motor MPL-A4530F-HK22AA MPL-A4530F-HK24AA MPL-A4530F-MJ22AA
- MPL-A420P-MK24AA Servo Motor MPL-A4540C-MK24AA MPL-A4540C-SJ22AA MPL-A4540C-SJ24AA
- Allen-Bradley MPL-A330P-HJ24AA Servo Motor
- Allen-Bradley MPL-A430H-SK24AA Servo Motor
Product Details
Brand Name: | SCVE | Model Number: | SF92-M2 | Type: | Other, AC tubular motor, AC tubular motor |
Frequency: | 50Hz | Output Power: | 580-830 | Protect Feature: | Other, IP44 |
Phase: | Single-phase | Certification: | CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, TUV | AC Voltage: | 208-230 / 240 V |
Place of Origin: | Zhejiang, China | Efficiency: | Other |
Product Description

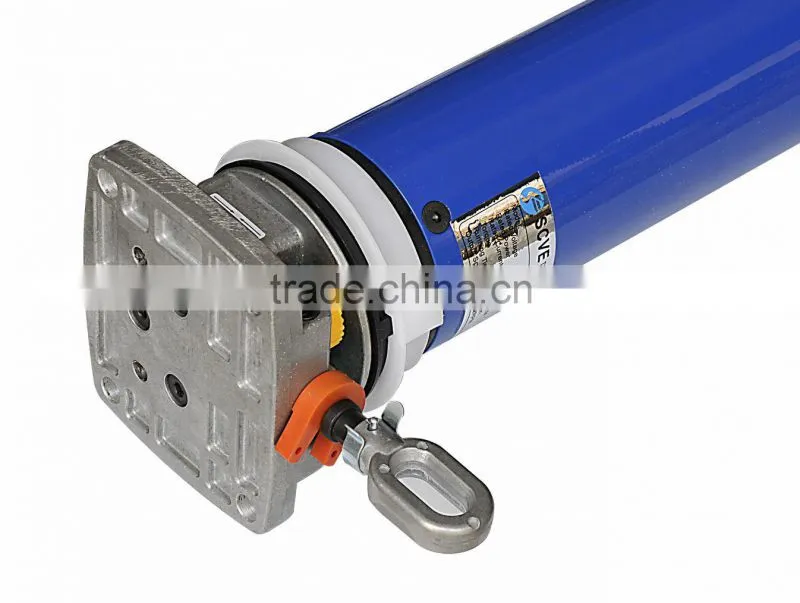

Tubular motor for industrial door and garage door,door opener,92mm tubular motor
The detail specifications:
Technical data | Torque | Power | Current | Voltage | Rpm | Thermal protect time(min) |
SF92-140M2 | 140Nm | 580W | 2.6A | 230V/50HZ | 12 | 4 |
SF92-180M2 | 180Nm | 626W | 2.8A | 230V/50HZ | 12 | 4 |
SF92-230M2 | 230Nm | 830W | 3.6A | 230V/50HZ | 12 | 4 |
SF92-300M2 | 300Nm | 880W | 3.8A | 230V/50HZ | 8 | 4 |
SF92-330M2 | 330Nm | 910W | 4.0A | 230V/50HZ | 8 | 4 |

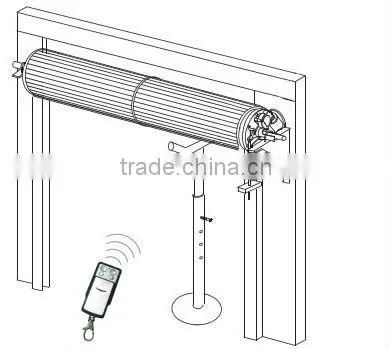

Range:garage door, Shops shutter,Awning, Movie screen.
Company Profile:
Zhejiang Huzhou SCVE Machine & Motor.Co.Ltd is a pefessional company in manufacturing and dealing with tubular motor& it's accessories in China.
payment terms
| T/T 30% in advance, T/T 70% at copy of B/L, Western Union |
delivery time
| 7 days from payment for sample, and 25days from payment for formal order |
packing
| box , carton |
loading port
| Shanghai |
