Tubular Motor & 92mm Tubular Motor & 330Nm Tubualr Motor&ac Tubular Motor
US$ 97 - 114
MOQ: 300 Pieces
Key Specifications
Get Latest Price
Brand Name:
SCVE
Model Number:
SF92-M
Frequency:
50Hz
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tubular Motor & 92mm Tubular Motor & Roller Shutter MotorUS$ 97 - 113MOQ: 100 Pieces -
Tubular MotorNegotiableMOQ: 200 Pieces
-
Tubular MotorNegotiableMOQ: 10 Pieces
-
Tubular Motor for Industrial Door and Garage Door,door Opener,92mm Tubular Motor,US$ 77 - 102MOQ: 50 Pieces
-
Tubular MotorNegotiableMOQ: 200 Pints
Brand Name
SCVE
Model Number
SF92-M
Frequency
50Hz
Output Power
580-910
Protect Feature
Totally Enclosed
Phase
Single-phase
Certification
CE, ROHS, UL, Other, CE, ROHS, UL, TUV
AC Voltage
208-230 / 240 V
Place of Origin
Zhejiang, China
Specifications
92mm tubular motor1)Outside limit switch
2)Lifting:159-437Kg
3)CE,TUV,ROHS,UL,CCC
4)Torque:8-10 rpm 5)Manual override
Tubular motor & 92mm tubular motor&330Nm tubular motor ,roller shutter motor

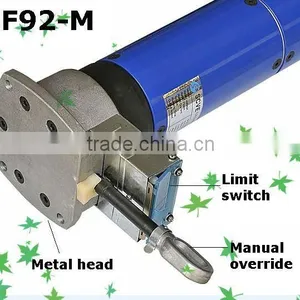

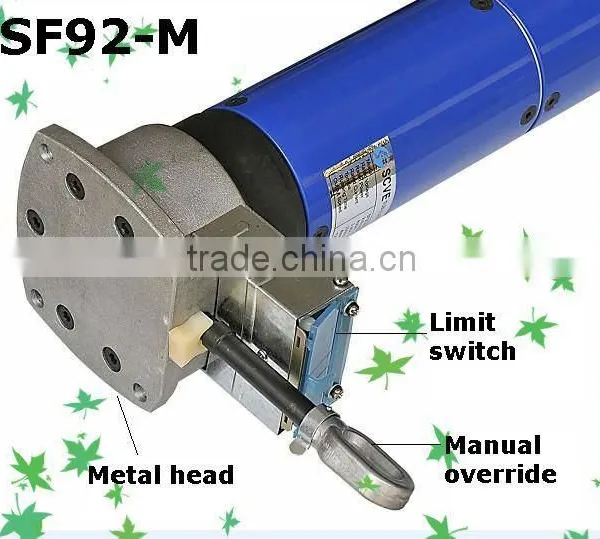

•Equipped with limit switch and manual override
•Can be controlled by radio and external receiver
•Excellent appearence (Color,crown and addapter)
•With metal head

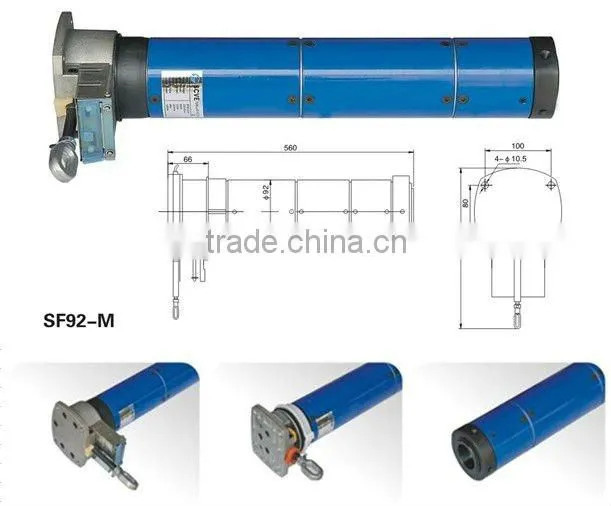

92mmTubular motor version
| 92mm Diameter Tubular Motor specification | ||||||||
| Model | (Nm) | (Rpm) | (V) | (Hz) | (W) | (A) | (Kg) | |
| 1 | SF92-140M | 140 | 12 | 230 | 50 | 580 | 2.6 | 13.5 |
| 2 | SF92-180M | 180 | 12 | 230 | 50 | 626 | 2.8 | 13.5 |
| 3 | SF92-230M | 230 | 12 | 230 | 50 | 830 | 3.8 | 13.5 |
| 4 | SF92-250M | 250 | 8 | 230 | 50 | 850 | 3.9 | 14.6 |
| 5 | SF92-280M | 280 | 8 | 230 | 50 | 778 | 4.1 | 14.6 |
| 6 | SF92-300M | 300 | 8 | 230 | 50 | 880 | 3.5 | 14.6 |
| 7 | SF92-330M | 330 | 8 | 230 | 50 | 910 | 4.0 | 14.6 |
We provide 5-year warranty
Certificate: TUV/UL/ CE/CCC/ GS/ ROHS/FCC |
Packaging:neutral box or gift box as your demands. |
Payment terms: T/T (with 30% deposit,70% B/L copy),L/C at sight |
Loading port: Shanghai |
Sample lead time: 5-7 days |
Order lead time: 25-30 days |
Offer quotation on FOB Shanghai or CIF port. |
