Tubular Motor & 92mm Tubular Motor & Roller Shutter Motor

Name: Tubular Motor & 92mm Tubular Motor & Roller Shutter Motor
Brand: SCVE
SKU: 125933085
Availability: InStock

US$ 97 - 113 MOQ: 100 Pieces

Key Specifications

Brand Name:

SCVE

Model Number:

SF92-W

Frequency:

50Hz

Zhejiang Huzhou SCVE Machine & Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SCVE

Model Number SF92-W

Frequency 50Hz

Output Power 580-830

Certification CCC, CE, ROHS, UL

AC Voltage 208-230 / 240 V

Place of Origin Zhejiang, China

Specifications

92mm tubular motor
1:230Volt/50Hz
2:Can be controlled by radio
3:with metal head and adapter
4:Provide 5-year warranty

92mm tubular motor & roller shutt motor,shutter tubular motor

•SCVE(Professional OEM for 8-year)

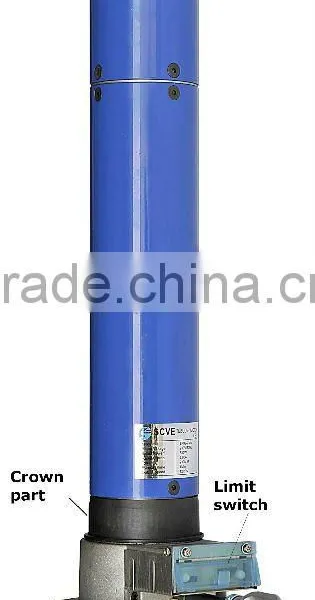

•Equipped with excellent limite switch

•Excellent include: Color,Crown,adapter

•Adapter diameter:(Ø97,Ø106,Ø120,Ø124,Ø127,Ø133)

•Can be control by radio and external receriver or switch

92mm tubular motor detail version

92mm Diameter Tubular Motor specification
	Model	(Nm)	(Rpm)	(V)	(Hz)	(W)	(A)	(Kg)
1	SF92-140M	140	12	230	50	580	2.6	13.5
2	SF92-180M	180	12	230	50	626	2.8	13.5
3	SF92-230M	230	12	230	50	830	3.8	13.5
4	SF92-250M	250	8	230	50	850	3.9	14.6
5	SF92-280M	280	8	230	50	778	4.1	14.6
6	SF92-300M	300	8	230	50	880	3.5	14.6
7	SF92-330M	330	8	230	50	910	4.0	14.6
