Home > Electrical & Electronics > Electric Motor > AC Motor > Tubular Motor & 92mm Tubular Motor & Roller Shutter Motor & ac Tubular Motor
Tubular Motor & 92mm Tubular Motor & Roller Shutter Motor & ac Tubular Motor
US$ 100 - 132
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
SCVE
Model Number:
SF92-N-M
Frequency:
50Hz
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tubular Motor & 92mm Roller Shutter Motor & Tubualr Motor for Garage DoorUS$ 97 - 114MOQ: 100 Pieces -
Tubular Motor & 92mm Tubular Motor & 330Nm Tubualr Motor&ac Tubular MotorUS$ 97 - 114MOQ: 300 Pieces
-
Tubular Motor & 92mm Tubular Motor & Roller Shutter MotorUS$ 97 - 113MOQ: 100 Pieces
-
Tubular MotorNegotiableMOQ: 200 Pieces
-
Tubular MotorNegotiableMOQ: 10 Pieces
Brand Name
SCVE
Model Number
SF92-N-M
Frequency
50Hz
Output Power
230W
Certification
CE, ROHS, UL
AC Voltage
208-230 / 240 V
Place of Origin
Zhejiang, China
Efficiency
Other
Specifications
92mm tubular motor1:Ball bearing limite adjust
2:Limit switch and external receiver
3:230V/50Hz
4:Crown:97mm
92mm tubular motor & ac tubular motor,roller shutter motor

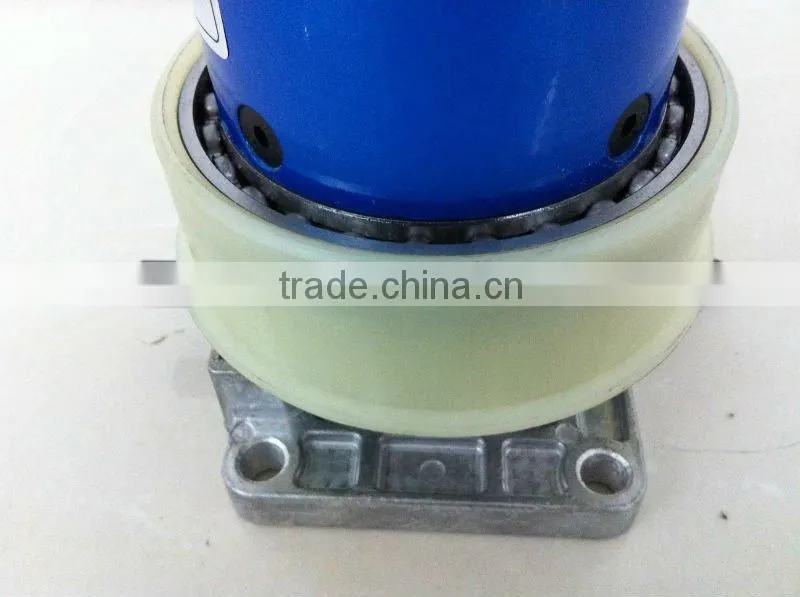

•Equipped with ball bearing to adjust the limit

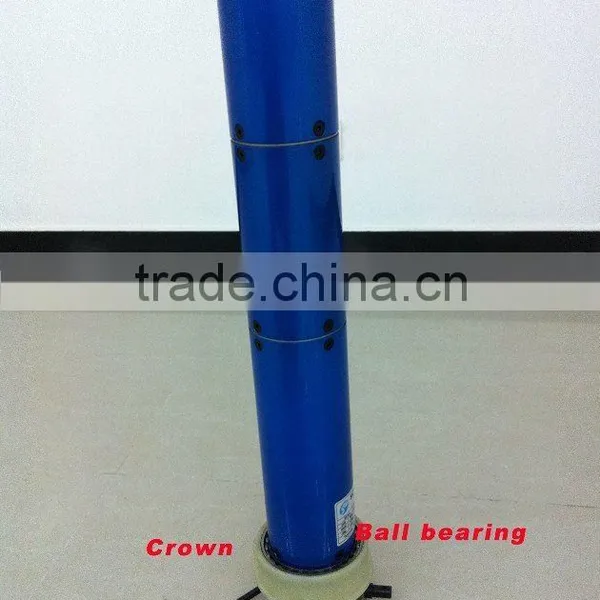

•Excellent appearence with metal dreive head and crown
•Precise limit switch ,repeat limiting precise degree
•With breaking, more reliable
•Can be radio control by adding external radio receiver
Detail Version
| 92mm Diameter Tubular Motor specification | ||||||||
| Model | (Nm) | (Rpm) | (V) | (Hz) | (W) | (A) | (Kg) | |
| 1 | SF92-N-140M | 140 | 12 | 230 | 50 | 580 | 2.6 | 13.5 |
| 2 | SF92-N-180M | 180 | 12 | 230 | 50 | 626 | 2.8 | 13.5 |
| 3 | SF92-N-230M | 230 | 12 | 230 | 50 | 830 | 3.6 | 13.5 |
| 4 | SF92-N-250M | 250 | 8 | 230 | 50 | 850 | 3.7 | 14.6 |
| 5 | SF92-N-280M | 280 | 8 | 230 | 50 | 860 | 3.8 | 14.6 |
| 6 | SF92-N-300M | 300 | 8 | 230 | 50 | 880 | 3.8 | 14.6 |
| 7 | SF92-N-330M | 330 | 8 | 230 | 50 | 910 | 4.0 | 14.6 |

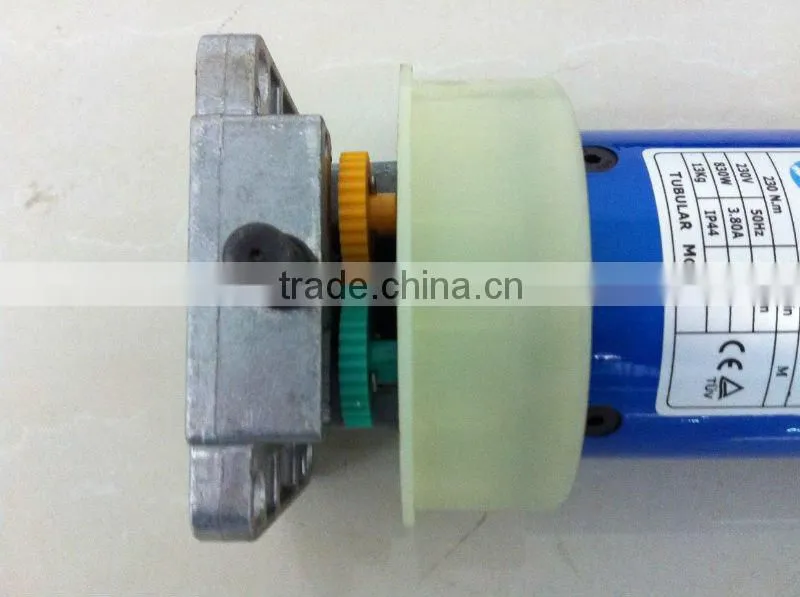

Picture part version
We provide 5-year warranty
Certificate:CE/CCC/TUV/ROHS/UL
Delivery time:25-30 days
Sample time:5-7 days
Payment:T/T or L/C
If you need to know more information about the quality and price that you can contact to us!
