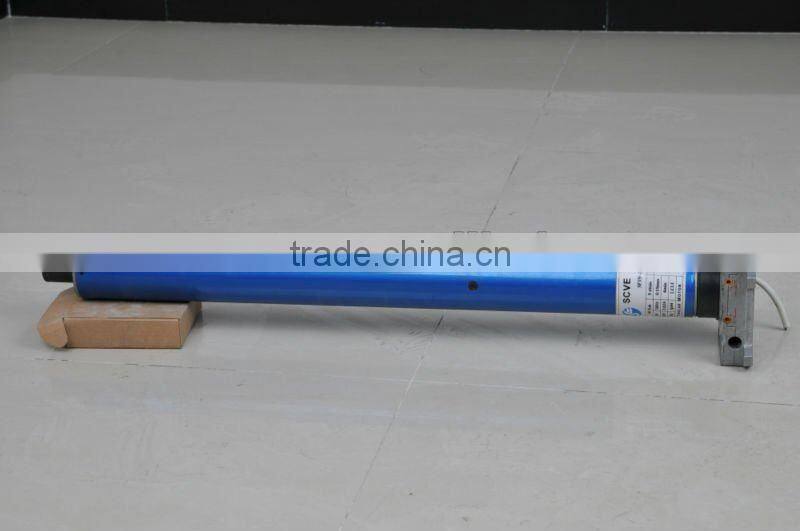

tubular motor 59mm with manual SF59M1

Specifications

The tubualr motor compact construction, fashion style, easy installation, flexible operation, amooth running.

Company Profile: Zhejiang Huzhou SCVE Machine & Motor.Co.Ltd is a pefessional company in manufacturing and dealing with tubular motor& it's accessories in China.



At preasent,SF series tubular motor already have the most complete models from 3Nm to 500N.m in diameter of 35mm(SF35 series),45mm(SF45 series),59mm(SF59 series),64mm(SF64 series),92mm(SF92 series),115mm(SF115 series).



With&without manual override for your various choices please refer to our website www.scvemotor.en.china.cn to learn more details about our products.



Range:garage door, Shops shutter,Awning, nivie screen.



                                                        SF59 M1 Manual overrid



Technical Data	Torque	Power	Current	Valtage	RPM	Thermal Protect  Time(Min)	L
SF59-60M1	60Nm	288W	1.25A	230V/50Hz 110V/60Hz	12	4	680mm
SF59-80M1	80Nm	350W	1.50A	230V/50Hz 110V/60Hz	12	4	680mm
SF59-100M1	100Nm	441W	1.92A	230V/50Hz 110V/60Hz	12	4	680mm
SF59-120M1	120Nm	450W	1.96A	230V/50Hz 110V/60Hz	12	4	680mm
SF59-140M1	140Nm	450W	1.96A	230V/50Hz 110V/60Hz	9	4	680mm





230V 50Hz Single phase motor

230V 50Hz

110V 60Hz Single phase motor

110V 60Hz

Supplied complete with limit adjuster tool

Silent running on operation

With manual override
