JP1325 Newest laser tile cutter
Technical parameters
Model |
1325 1625 1825 1530 1830 |
Working size |
1300*2500 1600*2500 1800*2500 1500*3000 1800*3000 |
Standard laser power |
80w/100w/130w/150w |
Laser type |
Co2 sealed laser tube ,water cooling |
Engraving speed |
0-1000mm/s |
Cutting speed |
0-600mm/s |
Resetting positioning accuracy |
<0.01mm |
Power supply |
220V±10% 50Hz or 110V±10% 60Hz |
Software supported |
ArtCut , PhotoShop (conversion output) CorelDraw ,AutoCAD(direct output) |
Main graphic format supported |
PLT/DXF/DST/BMP/AL ETC.( direct output) |
Standard parts |
1)Knife working table with funnel 2)big air pump 3)exhaust fans 4)standard cooling system 5)tool box |
Optional part |
1) honeycomb working table for soft material 2) Dust cover and automatic luberication for linear guide |
Running environment |
Temperature:0-45°,humidity:5%-95% |
Machine feature
1.With ball screw and oblique rack and belt suit for any materials
2.Openness of the platform to facilitate the processing of materials available
3.Strong steel structure machine body makes sure working stable and no noise .gear rack transmission with high precision.
4.Automatic lubricating device and auto smoking stable absorption system ,convenient for machine maintenance.
5.Imported linear rail guide with high durability ,precision.
6.DSP offline control system with USB interface. Software support windowsXP,window7,compatible with artcut, coreldraw,
photoshop, Auto CAD etc.
CNC Laser engraving Machine applicable Industries:
Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ paper-cutting
/cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/ shoemaking/ toy/ crystal/ packing & printing/ panel/mould/
decoration/upholster and other related industries
Samples:

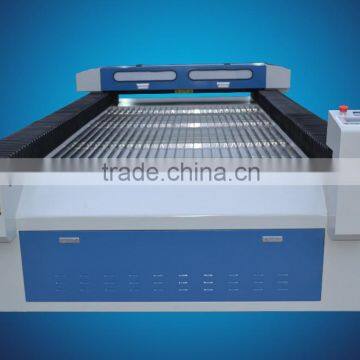

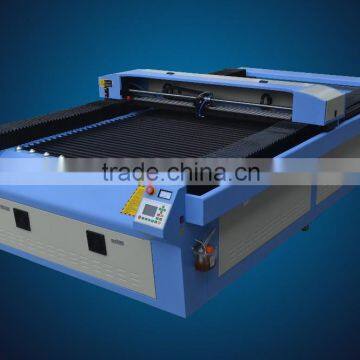

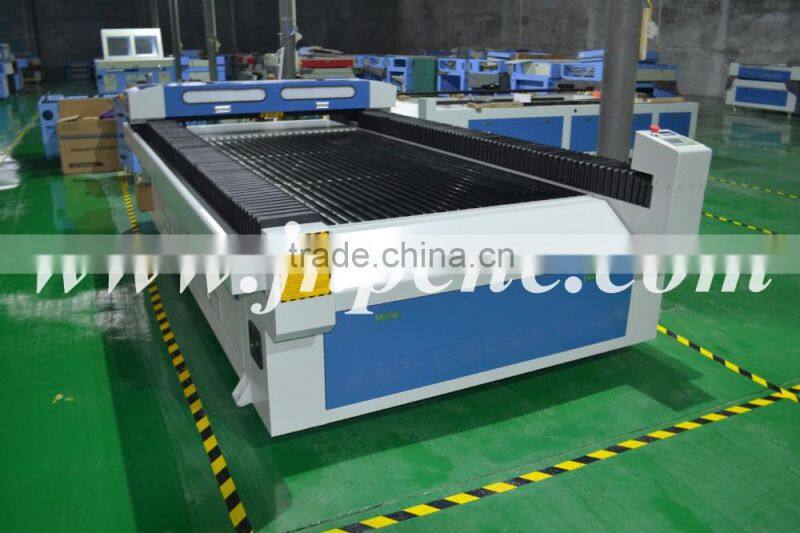

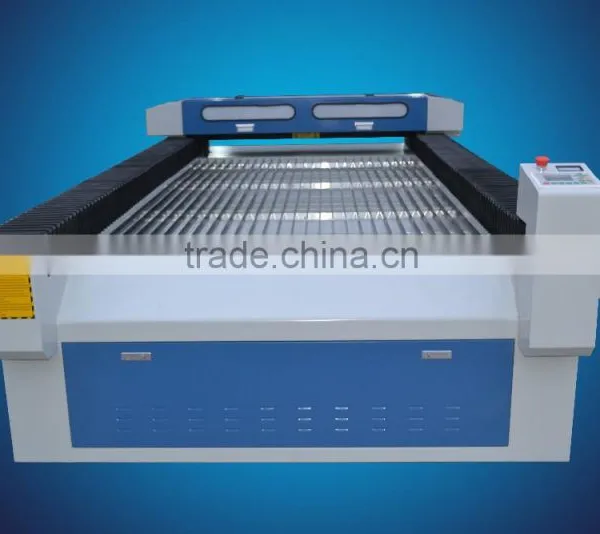

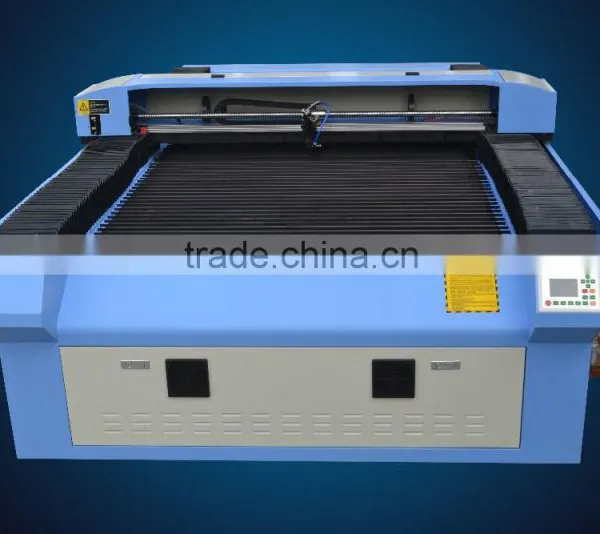

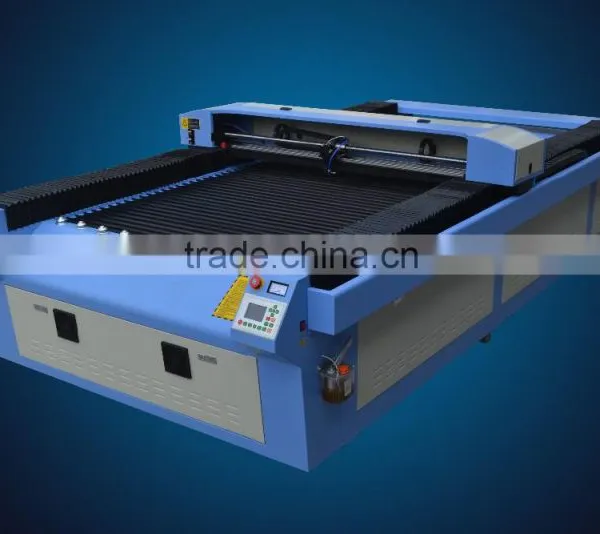

Machine detailed pictures:
1.Before-Sale:we will try to know your requests about what work you will do and help you choose the most suitable
machine specification & give you the best solution.
2.During Production: we will send photos of machines during production. so customers can know more details about
the procession of making their machines and give them suggestions.
4.After Shipping: we will give you the tracking information of the sea vessel so customers can know when it will arrive
at your port and make enough preparation.
6.About Training: there are some manual and video about how to install & use machine , if you have any questions
you can contact me any time, then i arrange our professional technicians to help you by video, pictures,call or email.
7. About Warranty: 24 months for the whole machine.Within 24 months under normal use and maintenance, if something
is wrong with the machine, you will get spare part for free.
8. Service In Life-Time: No matter how many years passed, you always can contact me, we can give you any technical
support in the future life-time.

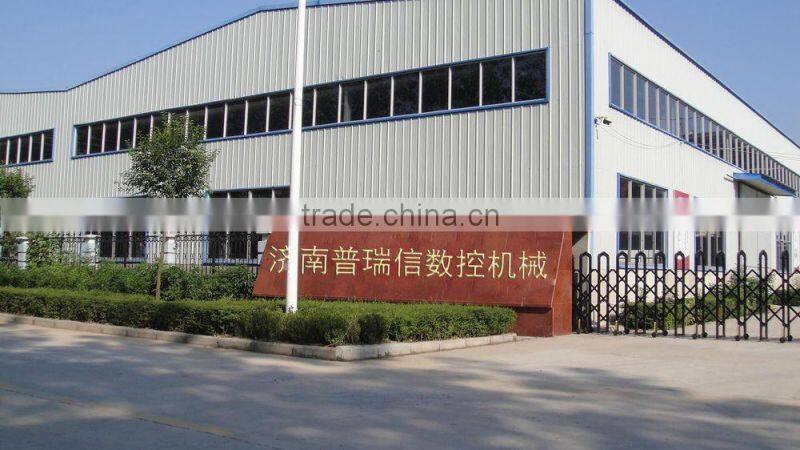

Jinan Precision Machinery is high-tech company which is specialized in Research and develop
various cutting and engraving machinery. We learn from foreign advanced technology, adopt
imported high quality spare parts to guarantee machine quality. Our products have approved
CE FDA certificates .
Main product: CO2 laser machine, Fiber laser machine, CNC router, Plasma cutting machine.
Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also
can making holes.
Q. is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine.
for the design files,
you can transfer the file with USB memory stick to the machine, Or can download it to the
machine directly with USB cable from computer.
Q. Can the machine be split so it can fit into my doors?
A. no, it can't.But when your order,you can tell us your door width,We will custom make
the machine according to your condition.
Q. How long the laser tube is working well?
A. It is about 10000 hours,but it is also depend on your work and maintain.
Q. Is spare parts available ?
A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normally enough
Q. How about the after sell service?
A. 2 years for the whole machine Free tech support for the whole life of the machine,
and 24 hours telephone support. Camera of MSN support by MSN or skype online
when you need.
