Parallel Twin Screw Extruder

Parallel Twin Screw Extruder photo-1
US$ 30,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Baichen
Model Number:
SJSH
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Baichen
Model Number SJSH

Specifications

Parallel twin screw extruder:
1.Suit for PP PE PET granulator line
2. Capacity:100-1000kg
3. Parallel
4. Twin screw extruder

Parallel twin screw extruder:



For PP PE PET granulator





Application:

This machine can be widely used in various thermoplastic plastics filling, compounding, improving modification, exhausting and vaporizing and also stabilizing drying and evening granular, it is an ideal equipment with multifunction and high efficiency for high polymer chemistry such as resin plant and plastics plant.



Features



This machine can assemble 5 types of screw according to different plastic process required by customers. The main engine employs over current and scissors pin protection, and the D.C motor used controllable silicon to stepless speed regulation. The temperature control system has realized auto regulation with accurage data display and high automation. Screw rod elements and barrels are both made of top quality nitrogensteel with surface hardness HV 950-1050 and layer of nitrogen casehardening more than 0.4mm.



Main technical parameters:

Model

SJSH30

SJSH35

SJSH50

SJSH60

SJSH65

SJSH75A

SJSH75B

SJSH92

Screw diameter mm

30

35.5

50.5

60

63

72

75

91

Screw speed  rpm

400



500

300/500

400/500

400/500

300/500

400

Main motor power  KW

7.5/11

11/15

30/45

45/55

55/75

75/110

110/140

220

L/D

32-40

32-48

32-48

32-48

32-48

32-48

32-48

32-48

Capacity

10-40

40-100

50-200

80-300

150-375

200-500

200-600

800-1000

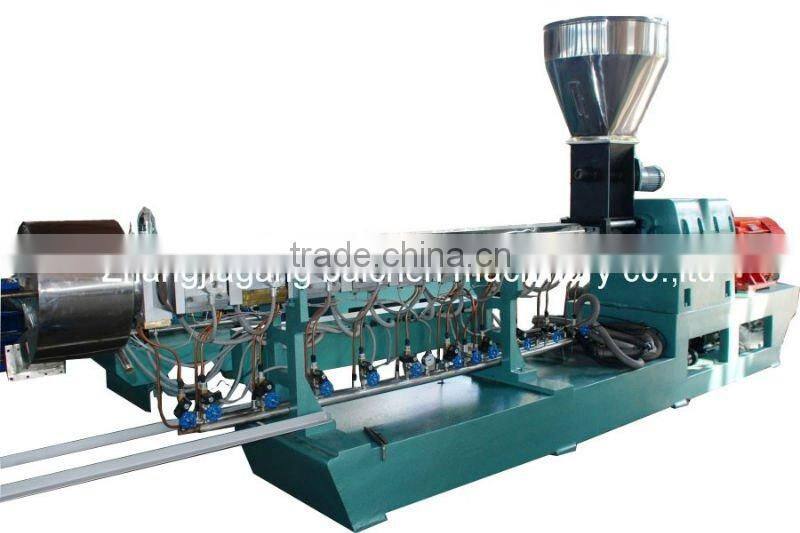

Photo:



 Parallel twin screw extruder
