Plastic mixer for PVC powder

Specifications

Plastic mixer for PVC powder
1. Plastic mixer
2. Model: SRL-Z 50/100
3. For PVC powder
4. CE certificate

Plastic mixer for PVC powder:

Plastic mixer:



Application & Features:

SRL-Z series plastic mixer is applicable for mixing, colouring and drying of various resin such as poly, PE,PP,PVC polypropylene, poly chloride etc.

The unit combines hot mixer and cooler mixer together .The materials after hot mixer can be getting into cooler mixer for cooling automatically ,exhausts remaining gases and avoids agglomeration. Through setting the time or temperature, the machine can be operated automatically.

 This unit is developed by importing and absorbing foreign advanced technology. By adopting PLC control, it features high automatic level, good mixing effect, complete function, compact structure and beautiful appearance. It is the ideal equipment for plastic mixing.



Main technical parameter:

Model	Total Volume	Effective Volume	REV speed of paddle	Power of motor and heating	Needed water	Needed gas	Method of heating	Method of unload	Dimension	Total weight	Mixing / cooling time
SRL-Z50/100	50/100	32/75	750/1500/180	7/11/5.5	3t/h	0.3	Electricity heating and Friction by itself	Handle or Pneumatic	2300/1800/1900	2.2T	6-10min/boiler
SRL-Z100/200	100/200	75/160	650/1300/180	14/22/5.5	3.5t/h	0.3			3780/1870/2250	3.2T
SRL-Z200/500	200/500	50/320	475/950/110	30/42/11	4.5t/h	0.4			4850/2240/2470	3.5T
SRL-Z300/600	300/600	200/360	475/950/110	40/55/11	5.0t/h	0.4			4680/240/2740	3.8T
SRL-Z500/1000	500/1000	375/640	430/260/50	55/75/15	5.8t/h	0.45			4980/2500/2470	4.2T
SRL-Z800/1600	800/1600	560/1120	400/800/80	70/90/15	6.5t/h	0.55			4600/3000/4050	7.8T

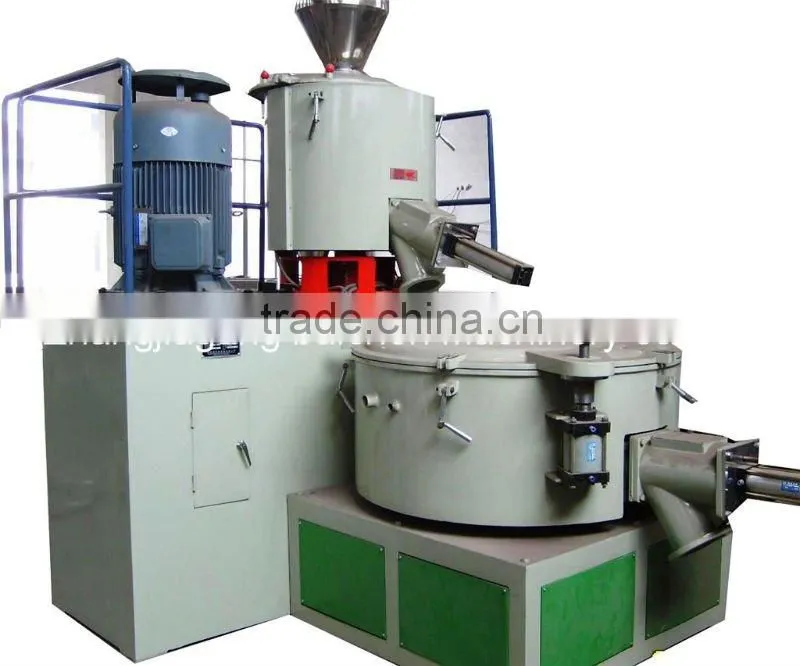

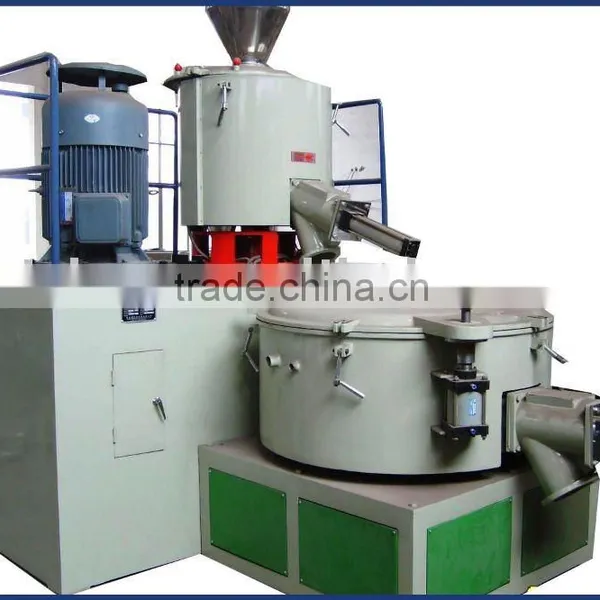

Photo:
