ac dc High Frequency Current/power Accuracy<0.03% Constant Current Full Wave Bridge IGBT 7000a12v Sapphire Growth Rectifier

ac dc High Frequency Current/power Accuracy<0.03% Constant Current Full Wave Bridge IGBT 7000a12v Sapphire Growth Rectifier thumbnail-1
ac dc High Frequency Current/power Accuracy<0.03% Constant Current Full Wave Bridge IGBT 7000a12v Sapphire Growth Rectifier photo-1
US$ 0.9 - 1.6 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Chunshu(52 years brand)
Model Number:
IGBS,IGBF
Contact Supplier Request Quote Chat Now
Beijing Chunshu Rectifier Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Chunshu(52 years brand)
Model Number IGBS,IGBF
Output Power Other, 0-84kw
Output Type Single
Size W/D/H:424/550/150-1750mm
Weight about 350Kg
Input Voltage 220V,380V,415V,480V
Output Voltage 0-12V
Type Other, AC to DC rectifier
Output Frequency 10-25KHz
Output Current 0-7000A

Specifications

1.IGBT and schottky diode module
2.power/current accuracy:<0.03%
3.save energy USD10000 per year
4.custom design

100% technical support

Honest Alibaba supplier

English operation manual and troubleshooting table



1. Application

  • Plating: Metals. Electrolytic metal treatment .All base metals, Non Metals and Plastics.
  • Hard Anodising.  Decorative Anodising.
  • Electrolysis. All major applications.
  • Water Purification, Electrowinning, and electrocoagulation.
  • Manufacture Silicon and Polysilicon.
  • Manufacture of Sapphires.
  • Back up for Power Plant applications and for battery charging.
  • All applications where continuous, stable DC current with reliable characteristic is needed.

2. Main technical parameters



AC input voltage

380V±10%, 3 phase, 50Hz±5%

Output voltage

0-12V

Output current

0-7000A

Regulation

Steady current and steady voltage, constant current and constant voltage

Output Current accuracy

≤0.03%

Output Voltage accuracy

≤0.03%

Voltage and current control range

0-100%

Efficiency

>88% (full load)

Cooling method

Water cooling, forced air cooling

Display

Digital meters

Remote control

Voltage and current display, on/off, adjustment of output value

Remote control connection

CAN/RS485

Protection grade

IP50(water cooling), IP30(forced air cooling)

Load grade

I

Insulation grade

B

Inbuilt Protection.

Phase loss, input under voltage, overvoltage, output under-voltage, overcurrent, overheat, short circuit

Cabinet

Single cabinet, sealed from corrosive dust and moisture

Working mode

24 hours long time full load continuous operation

Warranty

2 years from delivery against manufacturing defects, material defects and workmanship fails. Warranty does not cover mishandling, misuse and any operation outside working conditions



3. Cooling method

  •  Water cooling

ac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifier

  • Wind cooling/forced air cooling
  • Oil cooling

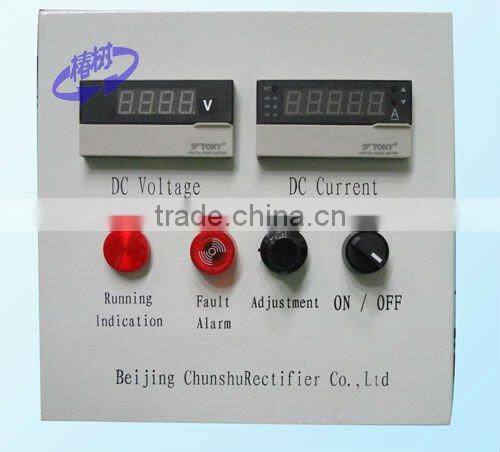

4. Control and display

  • DSP digital control, applied software copyright
  • Constant current/constant voltage
  • Local/remote control
  • Touch screen for better human-machine interfaceac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifier

 ac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifierac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifier

  • Soft start function
  • Full interface to external PLC(RS485, CAN bus) ac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifier

5. IGBT rectifier advantages



  • IGBT Switch mode rectifier is cheaper by 22 percent in actual power consumption due to low conversion loss of 8 to 12% only. Power saved is Power earned.
  • Weight:IGBT power supplies weigh a franction of the tranditional type.
  • Size: IGBT power supplies occupy a franction of the space occupied by traditional type.
  • Reliability: IGBT power supplies by our company (Beijing Chunshu Rectifier Co.,Ltd) work at full rated value 24 hours 365 days without failure. Proven high reliability.
  • Humanity Design: touch screen option for more convenience. It shows output value, fault type, history record, output waveform etc.

6. Package picture



Strong Plywood package, suitable for export and long distance shipping, Forklift Tyne entry available
ac dc high frequency current/power accuracy<0.03% constant current full wave bridge IGBT 7000a12v sapphire growth rectifier
