Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Energy Saving 20% High Accuracy<0.03% 400A100V IGBT High Frequency Switching Power Supply
Energy Saving 20% High Accuracy<0.03% 400A100V IGBT High Frequency Switching Power Supply
US$ 1 - 2
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Chunshu(52 years brand)
Model Number:
IGBS,IGBF
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Full Protection Function 8000a15v Sapphire Growth Power Supply SystemUS$ 0.15 - 0.3MOQ: 1 Unit -
Remote Control 8000a15v Sapphire Rectifier SystemUS$ 0.15 - 0.3MOQ: 1 Unit
-
Best Seal Performance 9000a14v Sapphire Crystal Power Supply SystemUS$ 0.15 - 0.3MOQ: 1 Unit
-
With Communication Interface 9000a Sapphire Growth Power Supply SystemUS$ 0.15 - 0.3MOQ: 1 Unit
-
Full Protection Function 9000a Sapphire Crystal Power Supply SystemUS$ 0.15 - 0.3MOQ: 1 Unit
Place of Origin
Beijing, China
Brand Name
Chunshu(52 years brand)
Model Number
IGBS,IGBF
Output Power
Other, 0-40Kw
Output Type
Single
Input Voltage
Other, 220V, 380V, 415V, 440V, 480V
Output Voltage
0-100V
Output Frequency
10-25KHz
Output Current
0-400A
Specifications
1. high accuracy2. saving energy 15-20%
3. good load adaptability
4. current, power accuracy<0.03%
5. modular design
3 years gold supplier on Alibaba
Top 2 rectifier manufacuturer in China
1. Main technical parameters
Input |
230~500V 50~60Hz, 3 phase |
Rated output current |
0~400A |
Rated output voltage |
0~100V |
Regulation |
current and voltage constant |
Efficiency |
90%-96% |
Control range |
0~100% |
Operation mode |
Continuously long time |
Ripple |
<3% |
Relatively humidity |
≤30%(20±5°C) |
Finishing |
RAL7032 |
Voltage regulation mode |
Thyristor phase shift at secondary of rectifier transformer |
Precision |
1% |

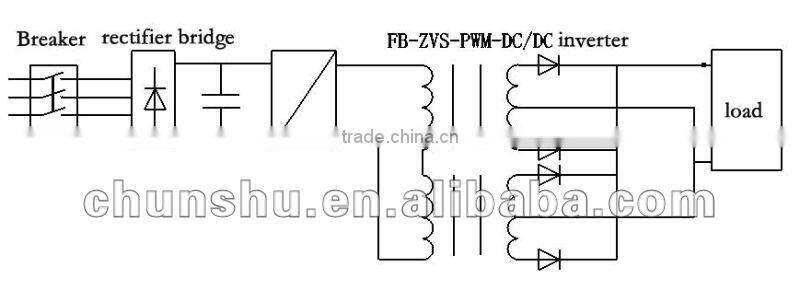

2. Working principle

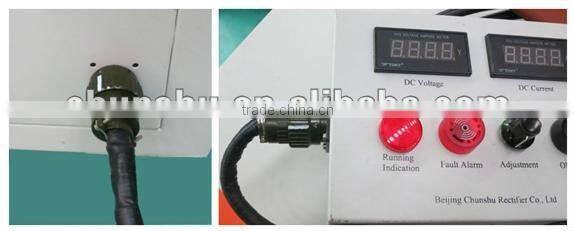

3.Control and display
- DSP digital control, software copyright approved
- CC/CV control
- Local/remote control
- Touch screen for better human-machine interface
- Soft start function
- Full interface to external PLC(RS485, CAN bus)

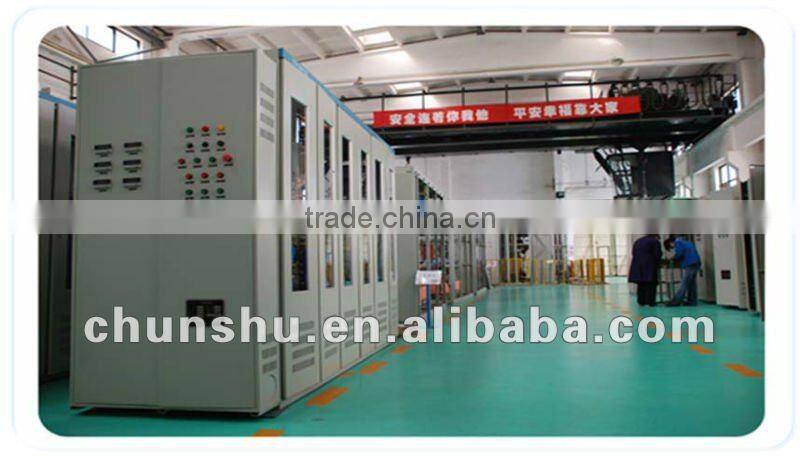

4. Workshop
- 2800m2 Anti-static power supply workshop which could achieve 300 million RMB revenue annually
- Clean room 10000 to 1000 grade take up approximately 2000 m2
