Specifications
1.Flotation Equipment2.Competitive Price
3.Top quality
4.Reliable Performance
5.ISO & CE

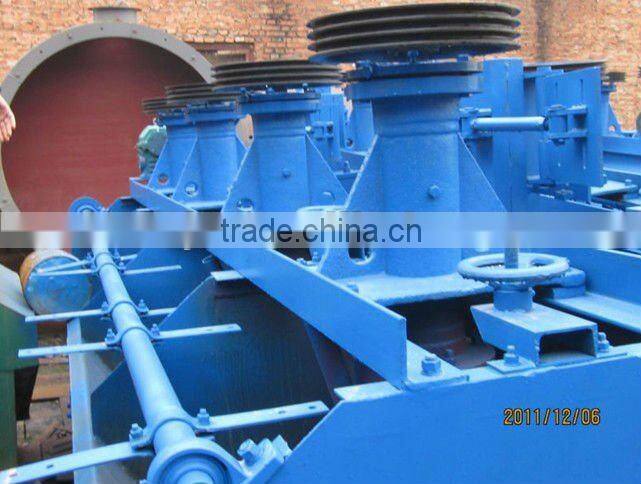

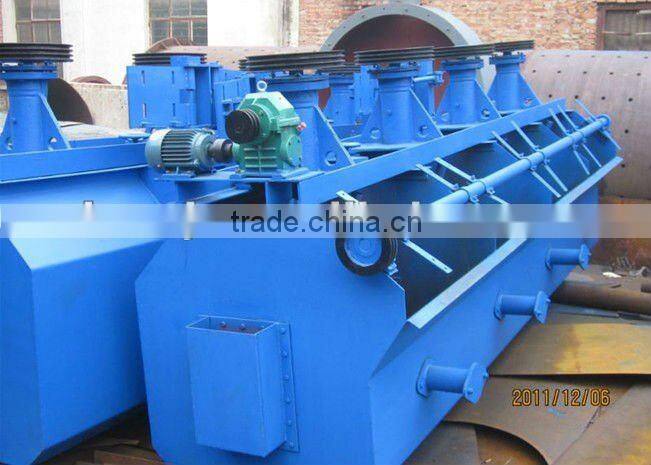

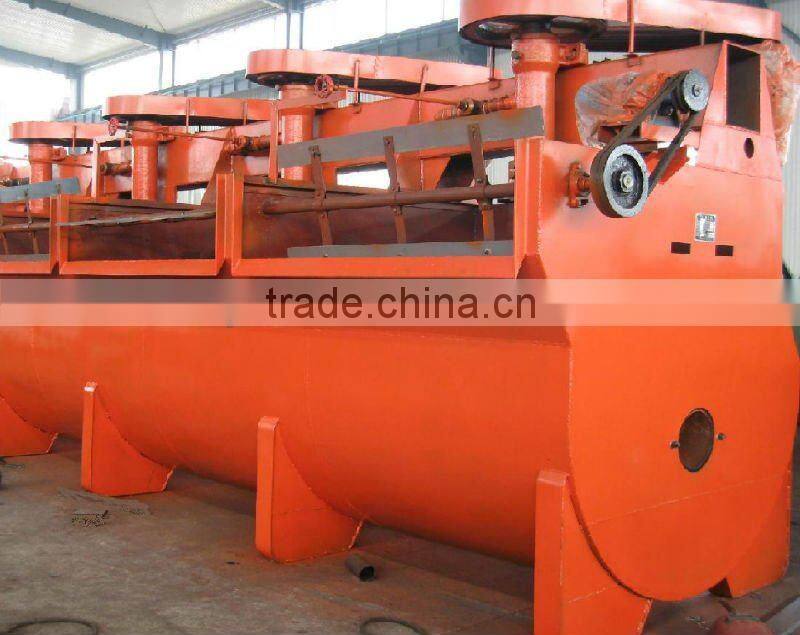

High Performance And Low Cost Flotation Equipment With ISO Certificate
The mineral floatation machine widely applies to rough selection, secondary selection and counter-floatation process work, such as the copper, the lead, the zink, the nickel, the molybdenum and so on non-ferrous metal, ferrous metal and nonmetal.
Flotation separator is an important device for sorting minerals by flotation. After grinding in wet, the minerals being liberated basically are made to ore pulp of certain density. In the stirred tank, they are mixed with the chemicals for flotation and then sent to the flotation separator. There through air charging and stirring, the minerals we want come up to the bubbles above and form foam layer, which are scraped by the scraper blade or overflow themselves. These foam products are the concentrate we desire. The non-foam products are discharged from the bottom of the tank.
1. Three functions of each tank individually: air absorption, slurry absorption, and floatation separation.
2.The single tank forms a floatation separation circle by itself without any auxiliary equipment, and the tanks are allocated horizontally, which benefits the change of flow.
3.The circulation of mineral slurry is reasonable and effective, which reduce the disposition of tailings to the largest extent.
4.Self-control device on the surface of mineral slurry makes it easy to control and adjust the machine.
5.The impeller has backward upper and lower vanes, which generates upper and lower circulation of mineral slurry respectively.
| Type | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | XJK-5.8(7A) |
| Effective Capacity(m3/tank) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 |
| Production Capacity(m3/min) | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 |
| Rotation Speed(r/min) | 470 | 400 | 330 | 280 | 240 |
| Impeller Diameter(mm) | 300 | 350 | 500 | 600 | 750 |
| Motor Type(Rotor) | Y90L-4 | Y100L-4 | Y132M-6 | Y160L-6 | Y200L-6(255M-6) |
| Motor Power(Rotor) | 1.5 | 3 | 5.5 | 11 | 22(30) |
| Motor Type(Scraping Plate) | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 |
| Motor Power(Scraping Plate) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 |
| Weight(t/tank) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 |
1.We are Factory(Not Dealer)
All machines from Henan Zhongcheng Machinery CO., LTD are made by ourselves with lower price, good quality and we assure full after service. So please buy machine from our factory.
2. Traning & Service
Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
Sale services: Profession
Skilled technicians are sent to the worksite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
After-sale service: Loyalty
To establish long term friendship, we will regularly pay return visit to customers. In addition, we provide one-year warrantee to make sure your machine runs properly. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business, we will help you.
Many thanks for your trust. Based on your demands and the conditions of working spot, we can provide you with design scheme for whole production lines, and the service of spot inspection and operator training. We can also help you choose the right equipment.
4. We'd like to recommend a suitable type for you and send you a best quotation.
