secondary grade tinplate sheets and coils
Specifications:
Thickness:0.18mm-0.50mm
Width:200mm-1050mm
Tin Coating: 1.1g/m2-8.4g/m2
Specification of tinplate :
1) Capacity: about 58,000 tons per year for tin plate products.
2) Standard: Passiviation 300 & 311, EN10202, EN10203, JIS G3303, ASTM A624, ASTM626
3) Raw material: MR, SPCC
4) Thickness: from 0.18mm to 0.50mm, all available
5) Width: from 200mm to 1050mm, all available
6) Hardnss:T2, T3&T4
7) Tin coating weight: 1.1g/m2-8.4g/m2
8) Surface: bright finish, stone, super stone, matte, silver
9) Min trial order: 5 tons per each thickness, 1x20' per delivery Steel Type
10) Steel Type
| Type | Descriptions |
| MR | Base steel low in residual elements that has excellent corrosion resistance. It widely used in general applications. |
| L | Base steel extremely low in residual elements such as Cu, Ni, Co, and Mo that has excellent corrosion resistance to certain types of food products. |
| D | Aluminum-killed base steel used in applications involving deep drawing or other types of severe forming that tend to give rise to Lueder's lines. |
Facility of tinplate :
Tin Coating Weight:
| Designation of coating weight | Normal coating weight (g/m2) | Min. average coating weight | |
| Equal Coating Weight (E) | 1.1/1.1 | 1.1/1.1 | 2.05 |
| 2.8/2.8 | 2.8/2.8 | 4.9 | |
| 5.6/5.6 | 5.6/5.6 | 10.5 | |
| 8.4/8.4 | 8.4/8.4 | 15.7 | |
| 11.2/11.2 | 11.2/11.2 | 20.2 | |
| Differential Coating Weight (D or A) | 5.6/2.8 | 5.6/2.8 | 5.05/2.25 |
| 8.4/2.8 | 8.4/2.8 | 7.85/2.25 | |
| 8.4/5.6 | 8.4/5.6 | 7.85/5.05 | |
| 11.2/2.8 | 11.2/2.8 | 10.1/2.25 | |
| 11.2/5.6 | 11.2/5.6 | 10.1/5.05 | |
| 11.2/8.4 | 11.2/8.4 | 10.1/7.85 | |
| 15.1/5.6 | 15.1/5.6 | 13.9/5.05 |
*Notes:
1. A slash of normal coating weight distinguishing the difference of tin coating weights on both sides. The left number of a slash means the top side coating weight of tinplate; the right number of a slash means the bottom side coating weight of tinplate.
2. The following designations and marking are used for differentially coated tinplate.
a) A: stands for the thick side of tinplate, eg. 2.8/5.6A means tin coating weight is 5.6g/m2 on the thick and bottom side.
b) D: stands for thin side of tinplate, eg. D2.8/5.6 means tin coating weight is 2.8g/m2 on the thin and topside.
Coating Structure:
Features of tinplate coil:
- Beautiful Appearance:
- Excellent Paintability & Printability
- Excellent Formability & Strength
- Excellent Corrosion Resistance
- Excellent Solderability & Weldability
Applications of tinplate:
- Cans and Containers: cans for foods and beverages, containers for oils, grease, paints, polishes, chemicals, aerosol and many other products.
- Electronics: electrodes, cable tape, magnetic screen covers, etc.
- Engineering: automotive oil filters, automotive air filters, gaskets, etc.
- Constructions: Gas meter internal components, heat exchangers, cookware, shelving, etc.

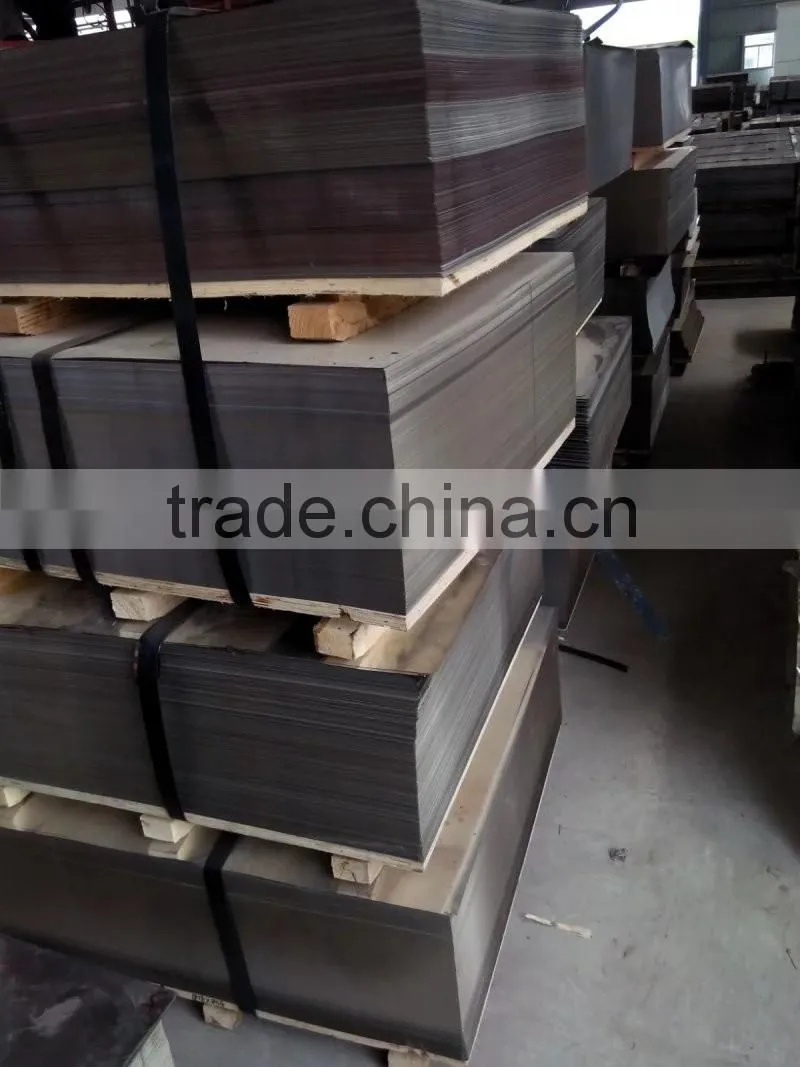

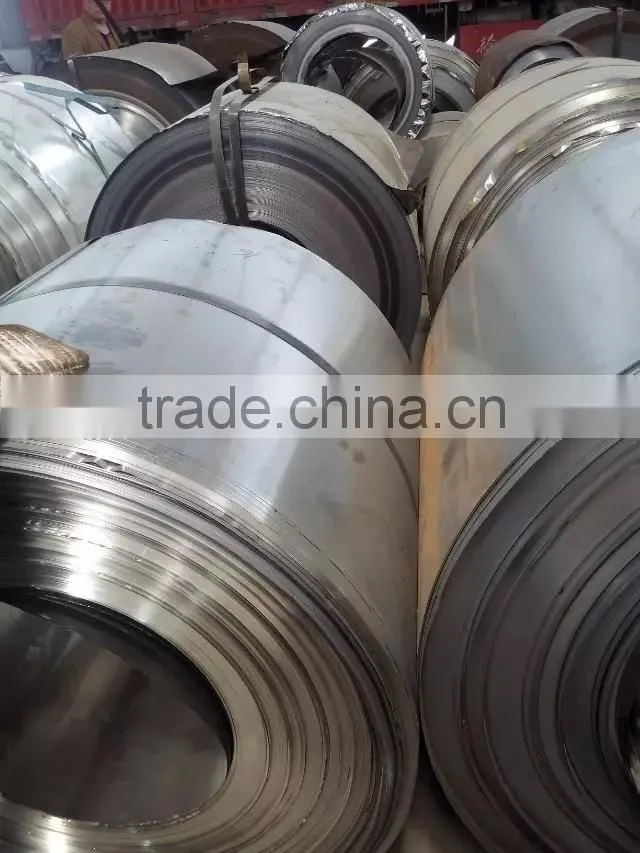

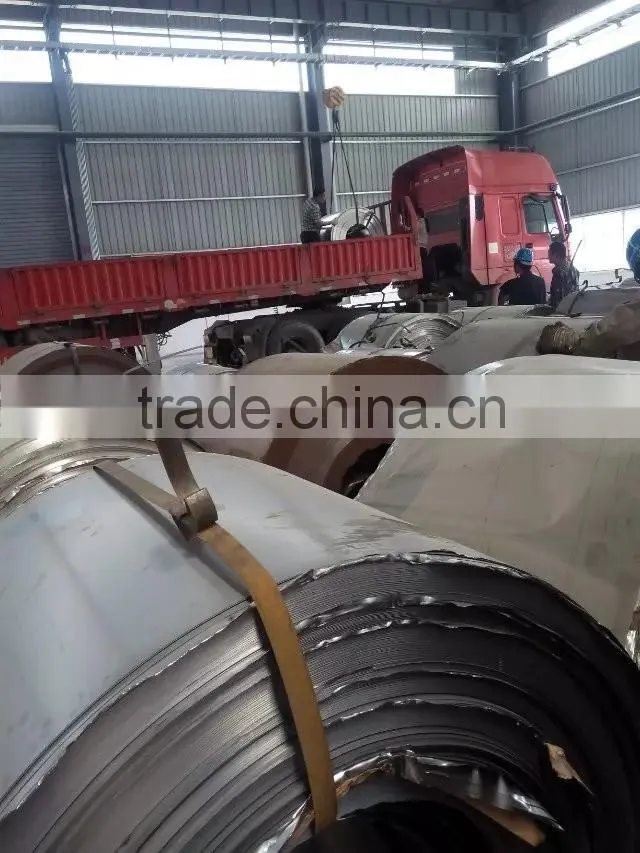

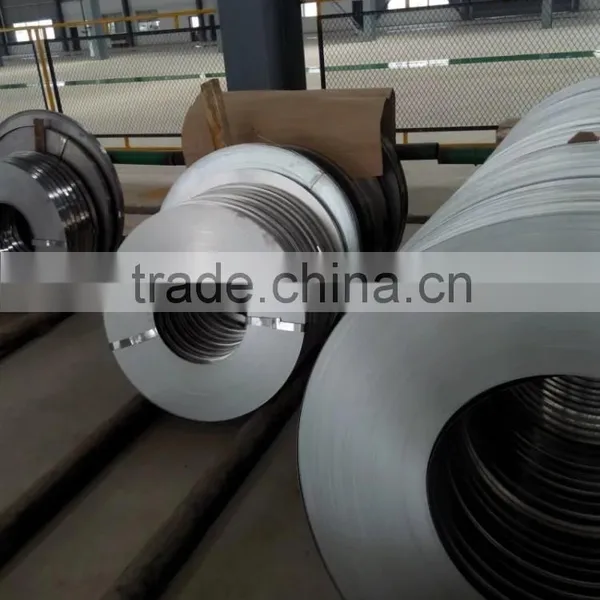

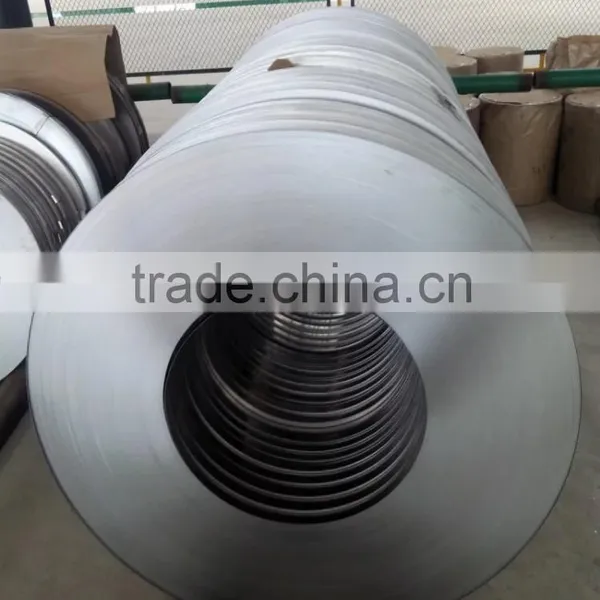

Our secondary Tinplate Products & its packing :
IF YOU NEED, PLS CONTACT ME ANY TIME:
MOBILE/WHATSAPP: +8615838391223
