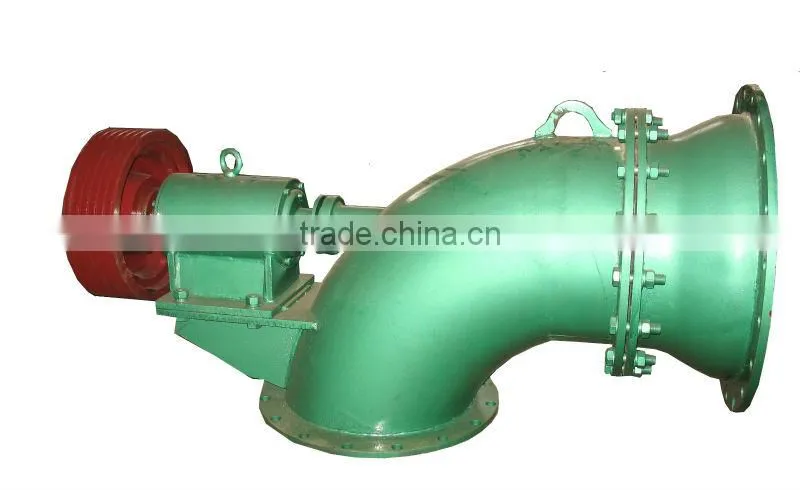

Shaft-extension Tubular Turbine
Tubular turbine is applicable for the hydropower station with strong and low hydraulic head, the applicable hydraulic head is commonly from 4 to 25m.The structure is simple,maintenance is easy. because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages. Tubular turbine has been widely used at plains and the tidal power generation of coastal areas.
The advantages of the tubular turbine generators
Compared with the same scale turbine.
1)The building projects of tubular turbine is less about 20%
2)The efficiency is more than about 30%
3)The electrical equipment budget saving about 15%.
4)Because the construction is convenient, construction period is short.
The parameter of shaft-extension tubular turbine for reference

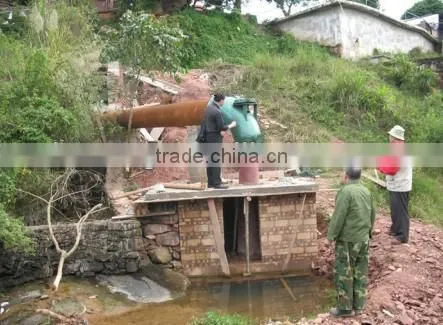

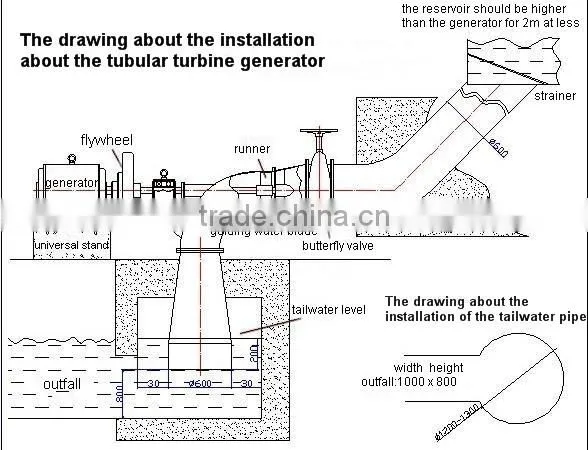

The installation of shaft-extension tubular turbine for reference

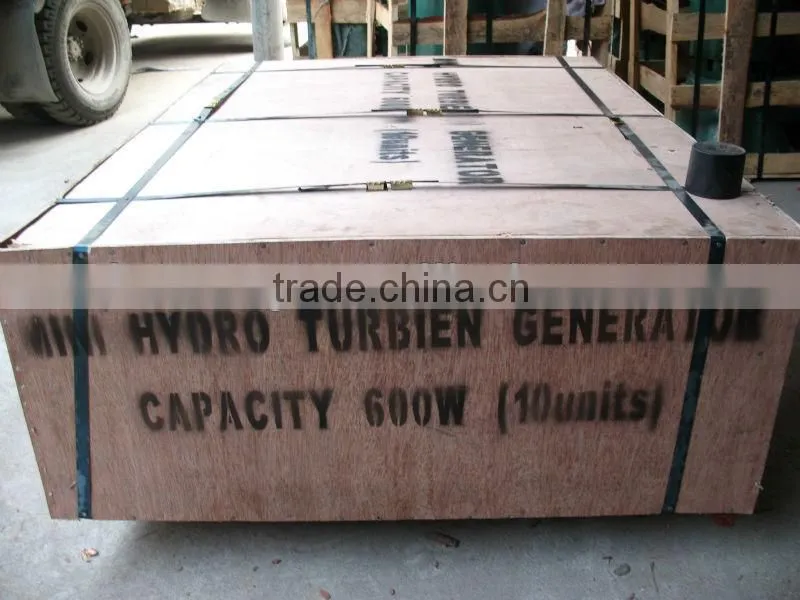

The packing of shaft-extension tubular water turbine generators

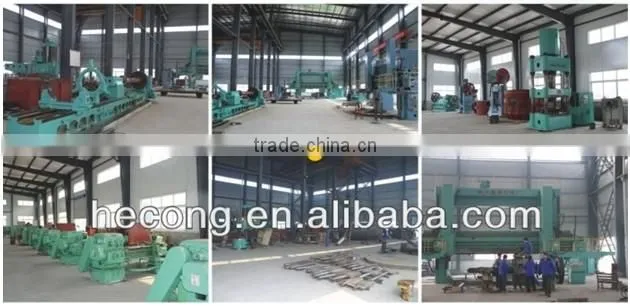

Our manufacture equipment
