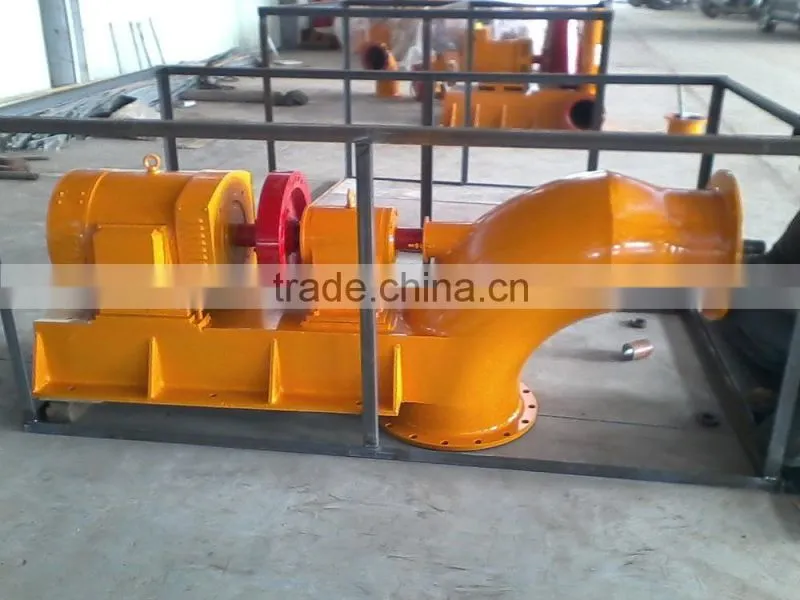

Tubular hydroelectric generators
Tubular turbine is applicable for the hydropower station with strong and low hydraulic head, the applicable hydraulic head is commonly from 4 to 25m.The structure is simple,maintenance is easy.
It has been widely used at plains and the tidal power generation of coastal areas.
The advantages of tubular hydroelectric generators
Because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages.
1) The building projects of tubular turbine is less about 20%
2) The efficiency is more than about 30%
3) The electrical equipment budget saving about 15%.
4) Because the construction is convenient, construction period is short.
The parameter of mini tubular hydroelectric generators for reference
| Output power (kw) | Design head (m) | Design flow (cbm/s) | Rotary speed (RPM) |
| 10 | 3 | 0.42 | 750 |
| 20 | 4 | 0.64 | 750 |
| 35 | 5 | 0.91 | 750 |
| 55 | 6.5 | 1.03 | 750 |
| 75 | 7 | 1.32 | 750 |
| 90 | 8 | 1.41 | 750 |
| 100 | 8.5 | 1.46 | 750 |
| 120 | 8.5 | 1.76 | 750 |
| 155 | 9 | 2.16 | 750 |
| 180 | 10 | 2.28 | 750 |
| 200 | 10.5 | 2.33 | 750 |
| 255 | 12.5 | 2.55 | 750 |
| 275 | 13 | 2.6 | 1000 |
| 320 | 14.5 | 2.74 | 1000 |
| 375 | 16 | 2.88 | 1000 |

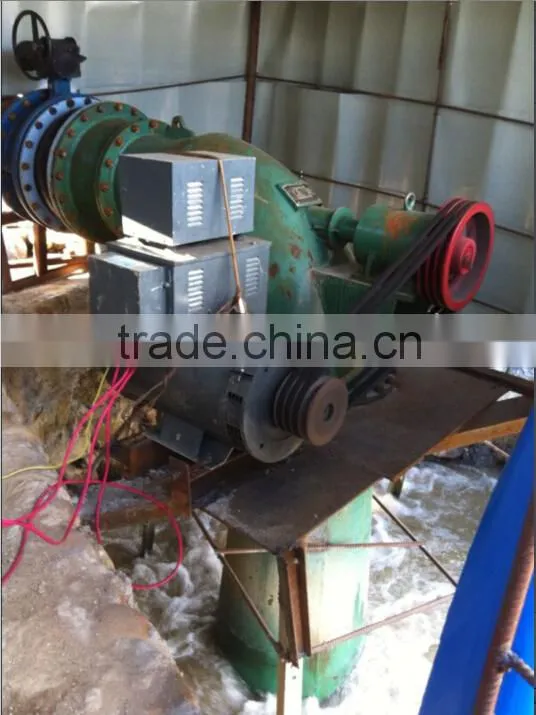

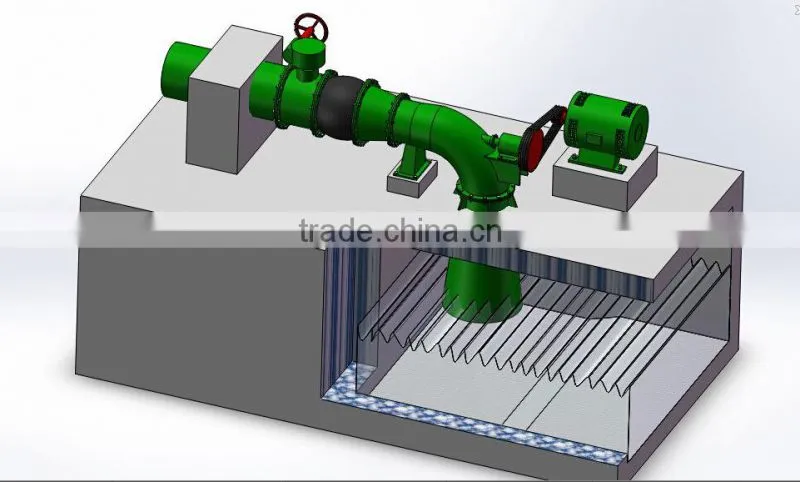

The installation of horizontal tubular hydroelectric generators for reference

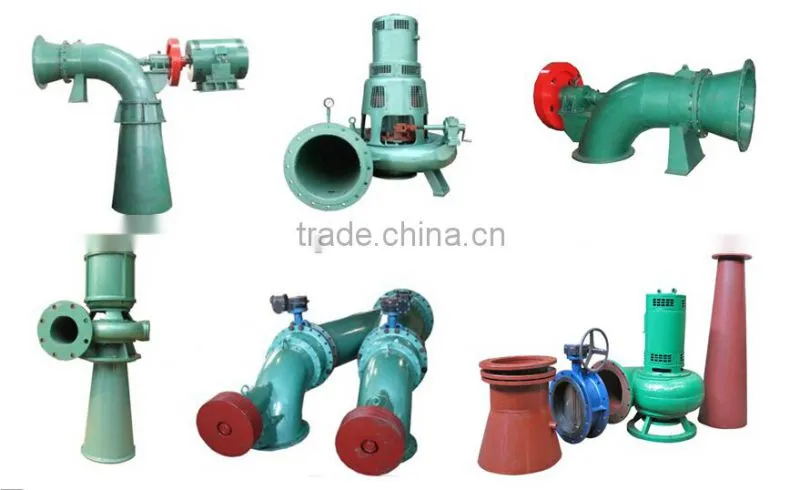

We also provide other type hydro turbines to meet your different water conditions.
For example:
Low water head :axial flow type. tubular type, axial-vortex-shell-flwo type
High water head : inclined jet type,impact type,Francis type
If you are interested in our hydro turbine,please tell us your water head and flow,we will t design the best model according to your water conditions.

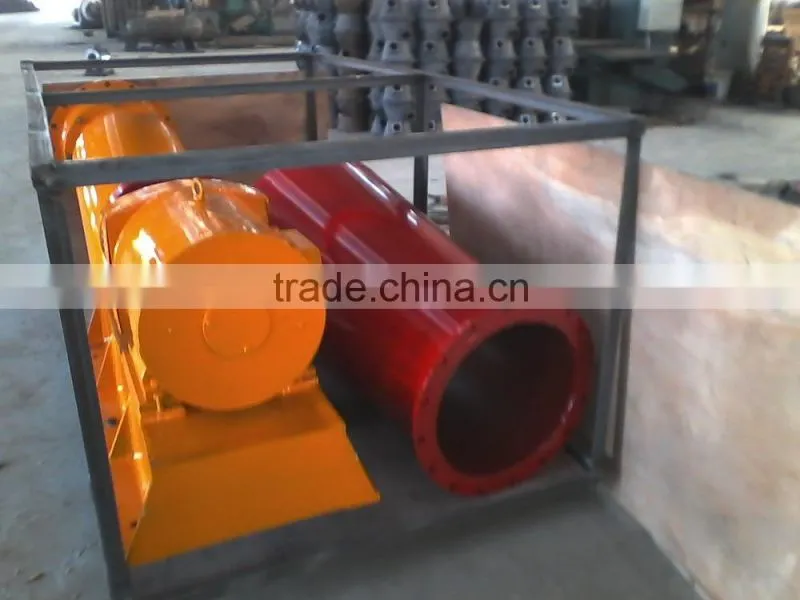

The packing of tubular water turbine generators

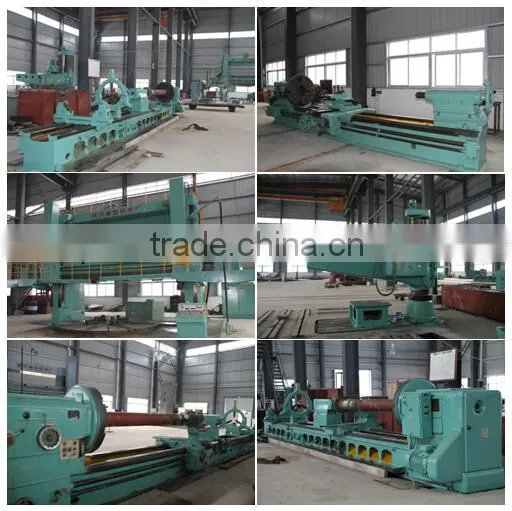

About our factory
