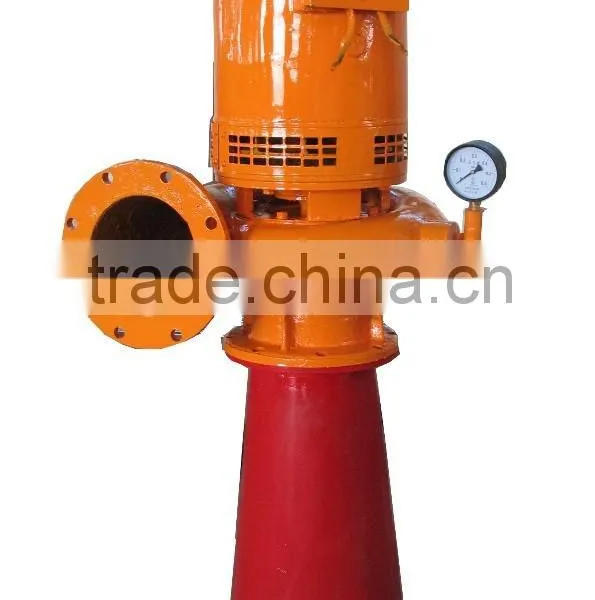

Mini through-flow turbine generators / tubular turbine generators
Through-flow turbine is also named tubular turbine,it's applicable for the hydropower station with strong and low hydraulic head, the applicable hydraulic head is commonly from 4 to 25m.The structure is simple,maintenance is easy. It has been widely used at plains and the tidal power generation of coastal areas.
The Advantages Of Mini Through-flow Turbine Generators
Because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages.
1) The building projects of tubular turbine is less about 20%
2) The efficiency is more than about 30%
3) The electrical equipment budget saving about 15%.
4) Because the construction is convenient, construction period is short.
The parameter of mini through-flow turbine generators for reference
| Output power (kw) | Design head (m) | Rated flow (cbm/s) |
Rotary speed (RPM) |
| 12 | 7 | 0.86 | 750 |
| 15 | 8 | 0.92 | 750 |
| 20 | 8.5 | 0.94 | 750 |
| 25 | 9.5 | 1 | 750 |
| 30 | 10 | 1.02 | 1000 |
| 35 | 11 | 1.07 | 1000 |
| 40 | 11.5 | 1.1 | 1000 |
| 45 | 12 | 1.12 | 1000 |
Theinstallation of mini through-flow turbine generators for reference
