Specifications
tubular turbine generator1)Sinple structure and durable
2)Easy to intall and operate
3)Rust proofing
4)Low head,hot sale

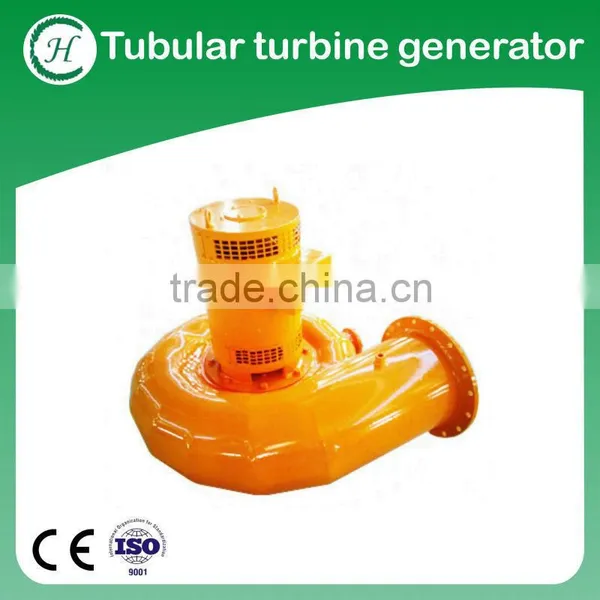

Tubular turbine generator mini hydro power plant
Tubular turbine is applicable for the hydropower station with strong and low hydraulic head, the applicable hydraulic head is commonly from 4 to 25m.
It has been widely used at plains and the tidal power generation of coastal areas.
The advantages of this model
The structure is simple,maintenance is easy. because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages.
1) The building projects of tubular turbine is less about 20%
2) The efficiency is more than about 30%
3) The electrical equipment budget saving about 15%.
4) Because the construction is convenient, construction period is short.
The parameter of tubular turbine generator mini hydro power plant for your reference
| Output power (KW) | Rated head (m) | Rated flow (cbm/s) | Rotor speed (RPM) | Pipe diameter (mm) |
| 80 | 8.5 | 1.17 | 750 | 600~700 |
| 90 | 9 | 1.2 | 750 | 600~700 |
| 95 | 9.5 | 1.23 | 750 | 600~700 |
| 105 | 10 | 1.26 | 750 | 600~700 |
| 110 | 10.5 | 1.3 | 750 | 600~700 |
| 120 | 11 | 1.33 | 750 | 600~700 |
| 130 | 11.5 | 1.36 | 750 | 600~700 |
| 135 | 12 | 1.39 | 1000 | 600~700 |
| 145 | 12.5 | 1.41 | 1000 | 600~700 |
| 155 | 13 | 1.44 | 1000 | 600~700 |
| 165 | 13.5 | 1.47 | 1000 | 600~700 |
| 175 | 14 | 1.5 | 1000 | 600~700 |
| 180 | 14.5 | 1.52 | 1000 | 600~700 |

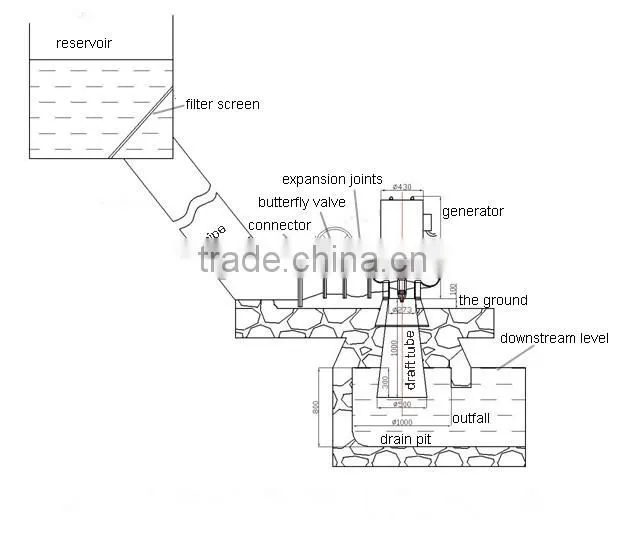

The installation of tubular turbine generator mini hydro power plant for your referene
Success case
The packing of tubular turbine generator mini hydro power plant

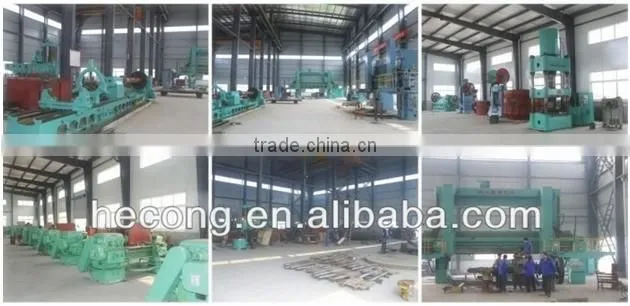

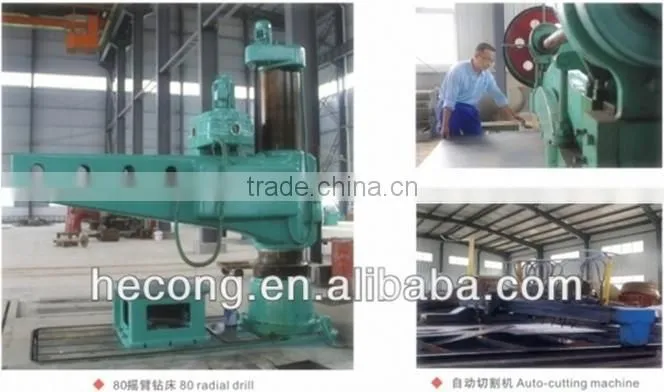

Welcome to visit our factory
