Specifications
hydro generator1)Output power:0.6kw-6kw
2)Water head:4-10m
3)Water flow:0.05-0.9cbm/s
4)Long service life
Hydro Generators
This model is also named tubular turbine and through flow turbin,it's applicable for the hydropower station with strong and low hydraulic head, the applicable hydraulic head is commonly from 4 to 25m.
It has been widely used at plains and the tidal power generation of coastal areas.
The advantages of this model
The structure is simple,maintenance is easy. because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages.
1) The building projects of tubular turbine is less about 20%
2) The efficiency is more than about 30%
3) The electrical equipment budget saving about 15%.
4) Because the construction is convenient, construction period is short.

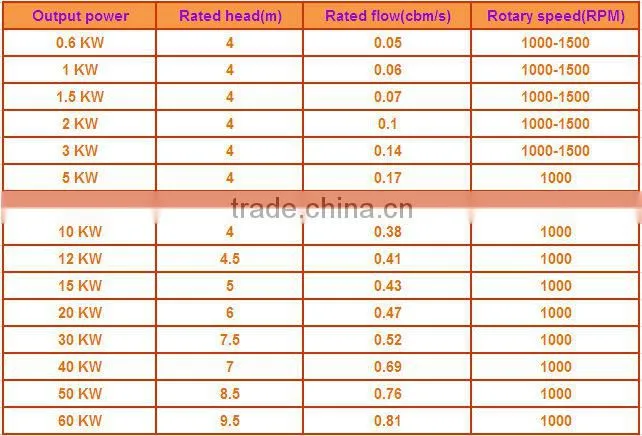

The parameter of hydro turbine generators for reference

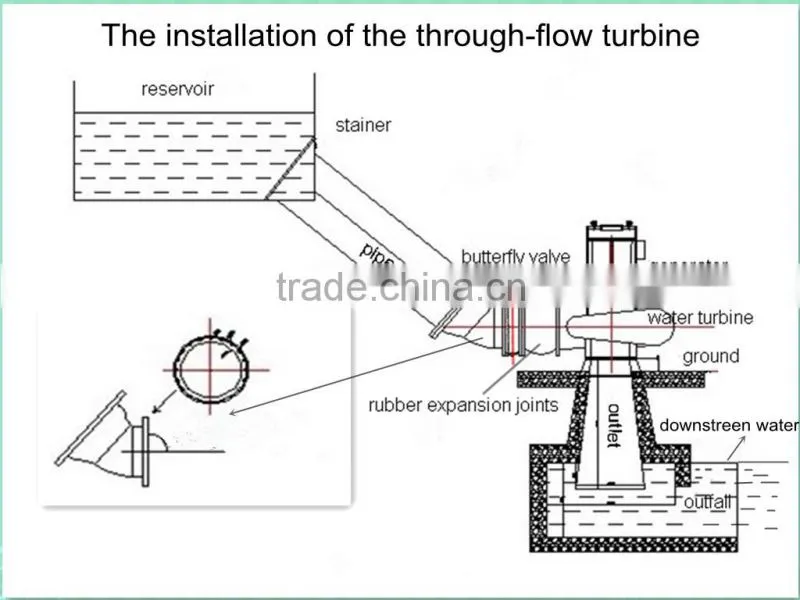

The installation of hydro turbine generators for referene
Success case
The packing of hydro turbine generators
