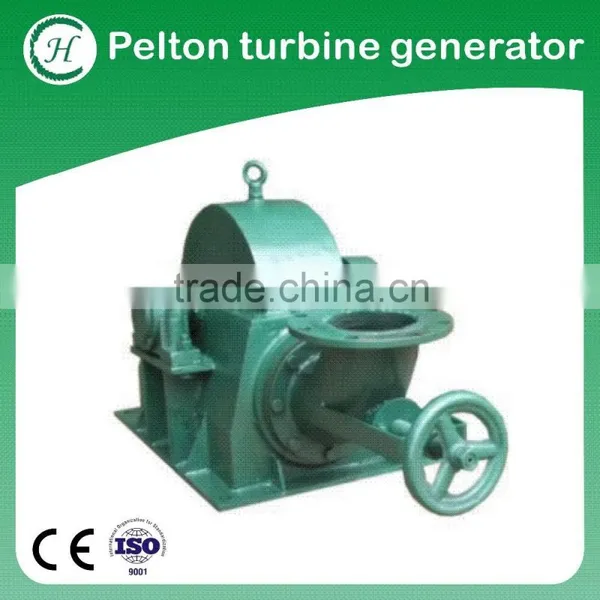

Pelton hydro power turbine/mini water turbine for small power plant in mountain areas
Pelton hydro power turbine generator is applicable for the power station with great load change,
stabilized water flow.Small-sized model are applicable for the water head range of 40-250m, and
large-sized model are applicable for the power station with the water head range of 400-450m.
The advantages of this model
1)Simple structure
2)Easily to install and operate
3)Rust proofing
4)Durable and long service life
5)High efficiency
6)Very popular in mountain areas

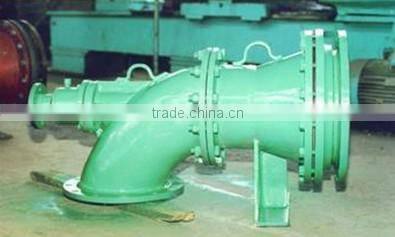

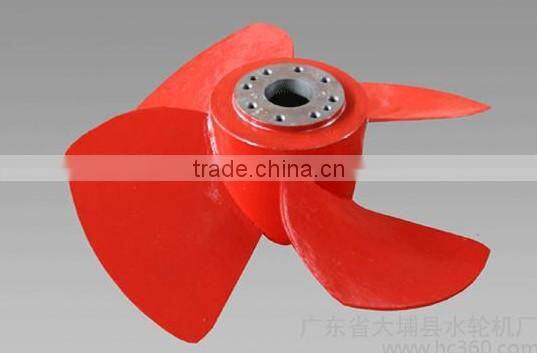

About the parts of our turbine generator
The parameters of the pelton hydro power turbine/mini turbine for small power plant
| Output power (KW) | Design head (m) | Design flow (cbm/s) | Rotor speed (RPM) |
| 26 | 60 | 0.06 | 1000 |
| 40 | 70 | 0.065 | 750 |
| 55 | 90 | 0.078 | 750 |
| 75 | 110 | 0.082 | 1000 |
| 100 | 150 | 0.095 | 1000 |
| 125 | 170 | 0.102 | 1000 |
| 160 | 170 | 0.1317 | 1000 |
| 200 | 180 | 0.1356 | 1000 |
| 250 | 220 | 0.1499 | 1000 |
The installation of hydro power turbine pelton type for reference
About our factory manufacture equipment
