2kw mini dynamo generator

Specifications

2kw mini dynamo generator
turbine power: 1kw.3kw.5kw.10kw.15kw
Flow: 0.021M3/S to 0. 2M3/S
Head: 1M to 6m

                                           Description of 2kw mini dynamo generator


The micro hydro power axial flow (vertical axis) turbine generator unit consists of a whole generator and turbine with non-adjustable blades on a common shaft. It’s suitable for places with low head and small flow, for example, the bank of a small river or near the base of a small dam. It requires 1 meter and 6 meters of head (vertical drop) to operate.





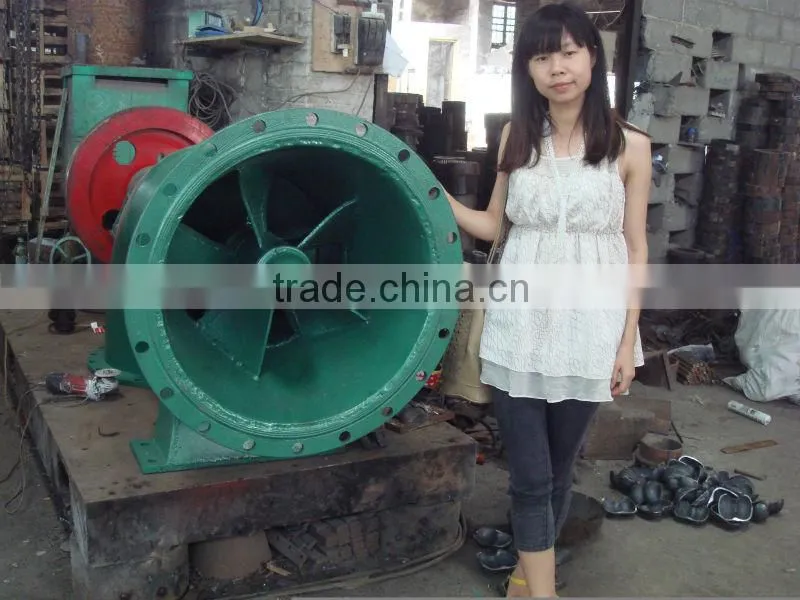

Picture of 2kw mini dynamo generator

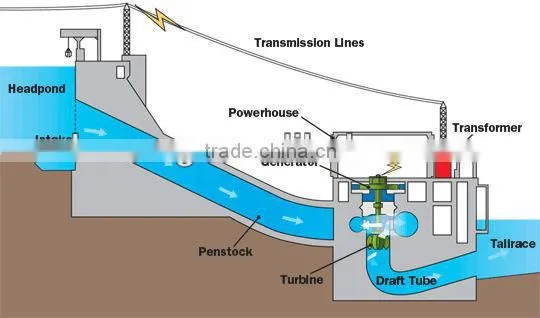

Working principle of  2kw mini dynamo generator


The channel brings the water from the dam to the turbine, then the turbine blades are funded by the water. After the water has given up its energy to the turbine, it drops down into the draft tube (made by iron or concrete). So it's the sucking of the water that spins the blades to convert the energy of flowing water into mechanical energy. The mechanical energy moves the generator to produce electricity.



The greater the head of the water above the turbine, the more energy the water can use to spin a turbine (which in turn drives a generator). The greater the quantity of water, the greater the turbine may be spun, and the greater the power output of the generator.





                            Technical Parameter of  2kw mini dynamo generator


Model	Items	Parameters
	Water turbine
HC-S03	Power Output (w)	300	500	600	1000	1500	2000	3000	5000
	Rated Head (m)	5-15	7-15	9-18	10-25	12-28	15-30	18-40	20-40
	Rated Flow(cbm/s)	0.007-0.01	0.007-0.011	0.0079-0.012	0.009-0.015	0.01-0.018	0.01140-0.023	0.0124-0.0135	0.012-0.0156
	Nozzle Diameter(cm)	1.8	1.8	2.0	2.6	2.6	3.0	3.0	5.0
	Pipe Diameter(cm)	8	8	8	9	9	10	10	15
	Generator
	Type	Permanent magnet
	Power Output (w)	300	500	600	1000	1500	2000	3000	5000
	Voltage(V)	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220 Alternating Current	220               Alternating Current
	Current(A)	1.37	2.27	2.73	4.55	6.82	9.09	13.64	22.73
	Frequency(HZ)	50	50	50	50	50	50	50	50
	Rotary Speed(RPM)	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500	500-1500
	Phase	single	single	single	single	single	single	single	single
	Weight(kgs)       (without packing)	15	17	21	28	30	37.5	48	133
Packing	Length(cm)	36	36	44	45	45	45	47	65
	Width(cm)	27	27	34	34	38	38	40	49
	Height(cm)	26	28	38	38	43	43	50	78





Packaging & Shipping of  2kw mini dynamo generator

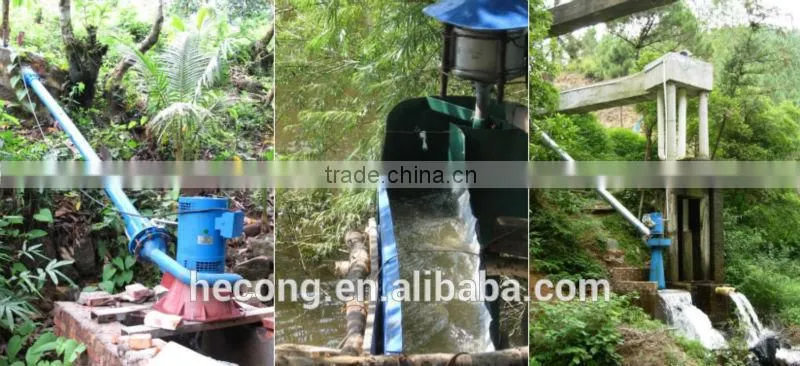

Use case of  mini dynamo generator
