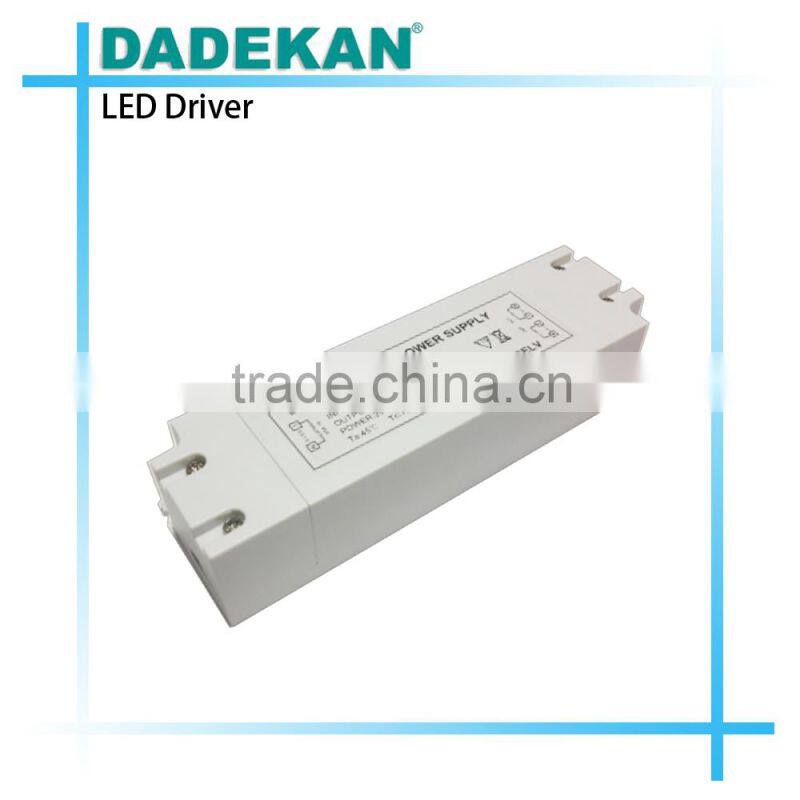

750ma Triac Dimmable Led Driver Power Supply for Spot Light

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	DADEKAN
Model Number	DEK-CI35B-450075	Output Power	Other, 20.3~33.8W
Output Type	Other, Single, triac dimmable led driver	Input Voltage	Other, 90VAC~305VAC
Output Voltage	27V~45V	Output Frequency	47-63HZ
Output Current	750mA

750ma triac dimmable led driver power supply for spot light

1. 0~10v triac dimmable led driver.

2. External LED driver with mounted hole , Easy to be mounted.

3. High efficiency, Low THD, Low loss.

4. Dimming from 10% to 100%, and no stroboflash.

Input Voltage	90VAC~305VAC
Input Current	0.45A
Output Voltage	27V~45V
Output Current	750mA
Output Power	20.3~33.8W
Efficiency	87%
Type	triac dimmable led driver
Protection	Low Voltage, Over Voltage, No-load Shorted Circuit, Over Temperature
Dimensions	145.5mm X 43.5mm X 29mm;±1mm

750ma triac dimmable led driver power supply for spot light.

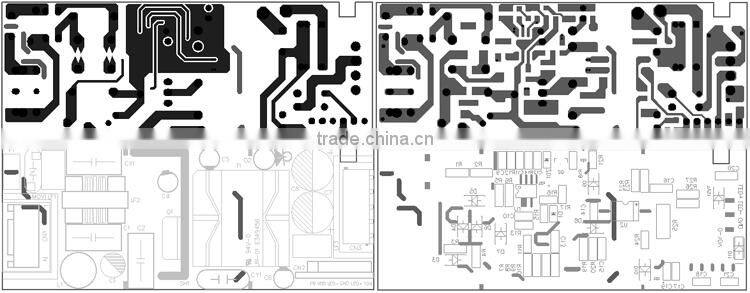

PCB Drawing:

Why choosing DADEKAN LED Power Supply

1. 30 R&D staffs with more than 5 years experience in LED driver development.

2. All products are made with strict ISO system, 100% Burn-in tested.

3. Inquiry Replied within 12 hours.

4. Sample delivered in 1-3 days, batch product delivered in 3-15 days.
