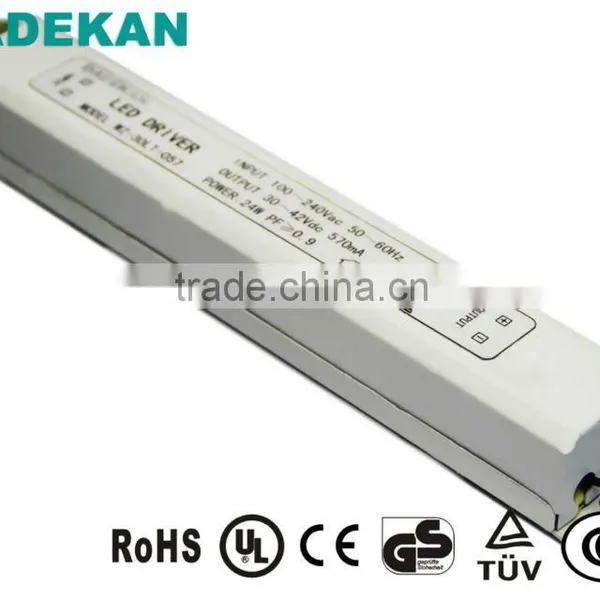

Help CenterWaterproof IP67 High Quality External LED Driver With Constant Current 36W
Related Products
MODEL |
WZ-30LT057AU-PF |
||||
Input |
Input Voltage |
90VAC~264VAC |
|||
Voltage Range |
100VAC~240VAC |
||||
Start-up Voltage(-25~70°C) |
90VAC |
||||
Frequency Range |
47Hz~63Hz |
||||
Power Factor(@25°C) |
>0.95@220VAC, Full Load |
||||
AC Current (@25°C) |
0.310A Max. |
||||
Inrush Current (@ 25°C) |
20A Max. |
||||
Output |
Output Voltage Range |
30V~42V |
|||
Output Current |
570mA |
||||
Output Power |
30~42W |
||||
Conversion Efficiency (@25°C) |
89% @220VAC, Full Load |
||||
No-load Output Voltage |
54V Max. |
||||
Line Regulation (@-25~70°C) |
±5% |
||||
Accuracy Constant(@-25~70°C) |
±5% |
||||
Set-up Time(@25°C) |
<1S@220VAC, <2S@110VAC |
||||
Temperature Coefficient(@-25~70°C) |
±0.03%/°C |
||||
Overshoot (@-25~70°C) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
0<Ta≤70°C |
940mVP-P |
|||
-25≤Ta≤0°C |
1900mVP-P |
||||
|
Protection (-25~70°C)
|
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
Constant Voltage |
||||
Over Temperature Protection |
/ |
||||
Environmental Requirement |
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes |
|||
Impact |
20G/11mS pulse,3times at each X, Y, Z axes |
||||
Storage Temp. & Hum. |
-40°C~85°C; 10%~95%RH No condensing |
||||
Operating amb. Temp. & Hum. |
-40°C~60°C; 20%~90%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
Safety &. EMC |
Isolation Resistance |
Input--out: 100M OHMS |
|||
Withstand Voltage |
Input--out: 3KVAC/10mA |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMI |
CE |
EN55015 Class B/FCC Part15 B |
|||
RE |
EN55015 Class B/FCC Part15 B |
||||
Harmonic Current |
EN6100-3-2, Class C |
||||
EMS |
CS |
EN61000-4-6 Level 2 Class B |
|||
RS |
EN61000-4-3 Level 2Class B |
||||
ESD |
EN61000-4-2 Level 2 |
||||
Surge |
EN61000-4-2 Level 2 |
||||
Power Frequency Harassment |
EN61000-4-8 Level 2 |
||||
EFT |
EN61000-4-4 Level 2 |
||||
Other |
Dimensions (L * W * H) |
117mm X 34mm X 26.2mm |
|||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
|||
Design MTBF |
50,000Hrs @25°C, MIL-HDBK-217 Method 2 Components Stress Method |
||||
Design Electrolytic Capacitor Life |
17520Hrs @50°C Full load and units continuously working. |
||||
Note |
Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 °C. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
