Help CenterExternal LED Driver
Related Products
MODEL |
WZ-25D1 |
||||
Input |
Input Voltage |
180VAC~240VAC |
|||
Voltage Range |
220Va /50HZ |
||||
Start-up Voltage(-25~70°C) |
180VAC |
||||
Frequency Range |
47HZ~60HZ |
||||
Power Factor(@25°C) |
>0.75@220VAC, Full Load. |
||||
AC Current (@25°C) |
120mA@25°C,50HZ 220Vac |
||||
Inrush Current (@ 25°C) |
10A Max. |
||||
Output |
Output Voltage Range |
25V~30V |
|||
Output Current |
700mA ± 20mA (@25°C 680mA – 720mA)/50HZ |
||||
Output Power |
22W |
||||
Conversion Efficiency (@25°C) |
85% @full load ,220Vac |
||||
No-load Output Voltage |
37VMax. |
||||
Accuracy Constant(@-25~70°C) |
±10mA |
||||
Set-up Time(@25°C) |
<1S@220VAC |
||||
Temperature Coefficient(@-25~70°C) |
±0.03%/°C |
||||
Surge |
Combination: Min, 1.0 KV Ring wave :Min 2.5KV ,7times (100KHZ) |
||||
Overshoot (@-25~70°C) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
|
|
|||
-25≤Ta≤50°C |
5V( @Peak-to-Peak )@220VAC/50Hz |
||||
|
Protection (-25~70°C) |
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
/ |
||||
Over Temperature Protection |
/ |
||||
Environmental Requirement |
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes |
|||
|
Impact |
20G/11mS pulse,3times at each X, Y, Z axes |
|||
Storage Temp. & Hum. |
-40°C~85°C; 10%~95%RH No condensing |
||||
Operating amb. Temp. & Hum. |
-40°C~50°C; 35%~80%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
Safety &. EMC |
Isolation Resistance |
Input--out: 100M OHMS |
|||
Withstand Voltage |
Input--out: 3KVAC/10mA |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMC |
KS C IEC15, KS C IEC 61547 |
||||
Harmonic Current |
EN6100-3-2, Class C |
||||
EMS |
CS |
EN61000-4-6 Level 2 Class B |
|||
RS |
EN61000-4-3 Level 2Class B |
||||
ESD |
EN61000-4-2 Level 2 |
||||
SURGE |
EN61000-4-2 Level 2 |
||||
Power Frequency Harassment |
EN61000-4-8 Level 2 |
||||
EFT |
EN61000-4-4 Level 2 |
||||
Other |

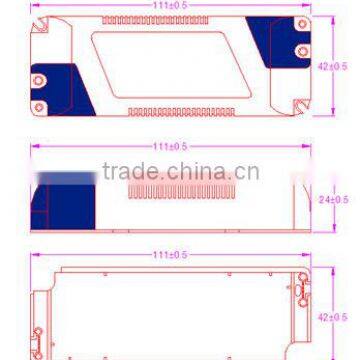

Dimensions (D* H) |
111mm X 42mm X 25mm ;±0.5mm |
|||
Weight |
100g ;±5g |
||||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
|||
Design MTBF |
50,000Hrs @25°C, MIL-HDBK-217 Method 2 Components Stress Method |
||||
Design electrolytic capacitor life |
17520Hrs @50°C Full load and units continuously working |
||||
Note |
Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 °C. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
