Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > External LED Driver

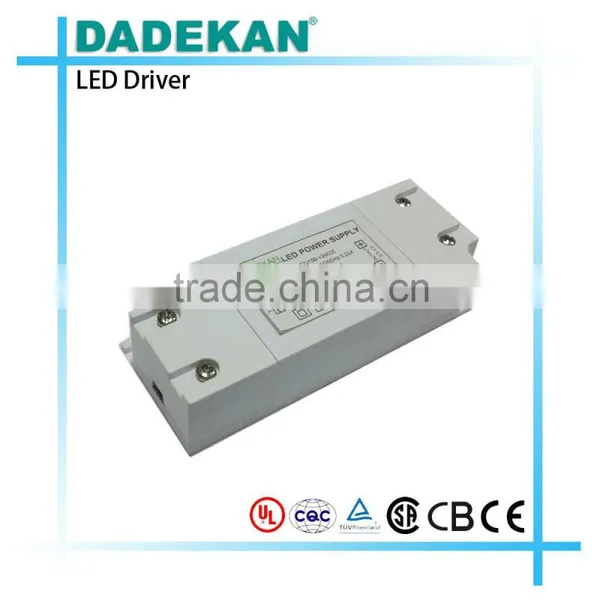

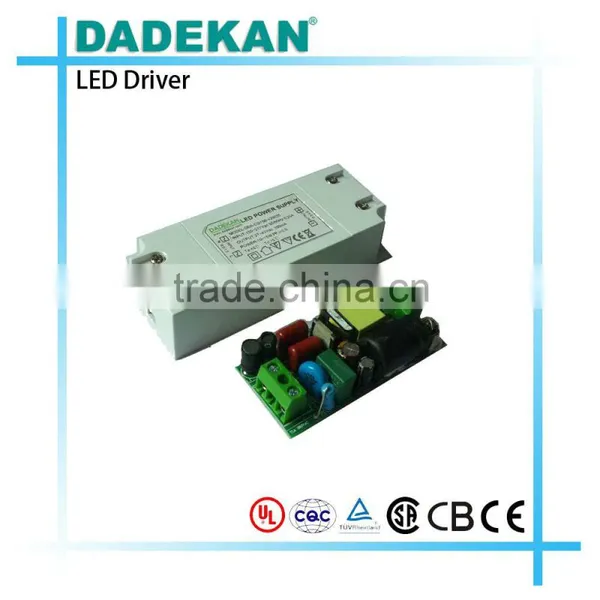

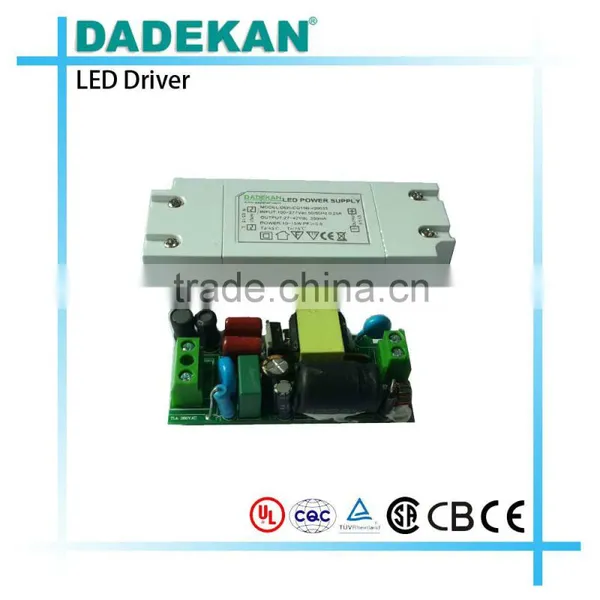

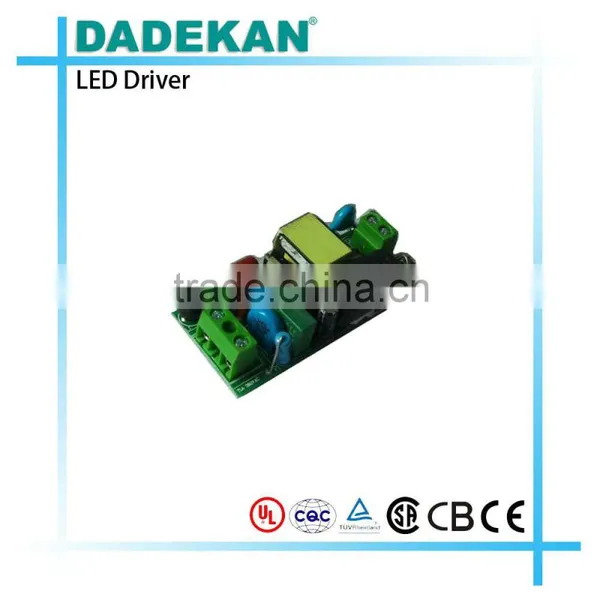

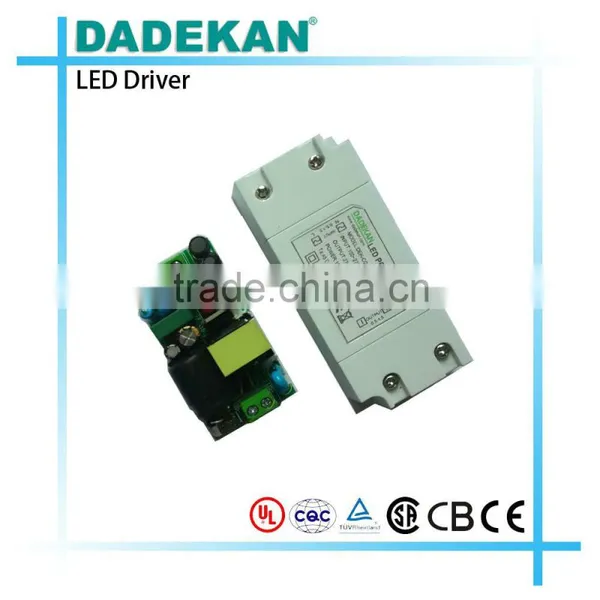

External LED Driver

Name: External LED Driver
Brand: DADEKAN
SKU: 125786923
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

DADEKAN

Model Number:

DEK-CG15B-280042

Contact Supplier Request Quote Chat Now

Shenzhen Dadekan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name DADEKAN

Model Number DEK-CG15B-280042

Output Power Other, 6~12.3W

Output Type Single

Input Voltage Other, 90VAC~305VAC

Output Voltage 15V~28V

Output Current 420mA

Product Name: External LED Driver

Application

External LED driver for LED Panel light, LED Down lamp, LED Fluorescent lamps.

MODEL					DEK-CG15B-280042
Input	Input Voltage				90VAC~305VAC
	Voltage Range				100VAC~277VAC
	Start-up Voltage(-25~70℃)				90VAC
	Frequency Range				47Hz~63Hz
	Power Factor(@25℃)				>0.9@220VAC, Full Load
	AC Current (@25℃)				0.25A @100VAC Full Load
	Inrush Current (@ 25℃)				50A @277VAC Full Load
Output	Output Voltage Range				15V~28V
	Output Current				420mA
	Output Power				6~12.3W
	Conversion Efficiency (@25℃)				85% @220VAC, Full Load
	No-load Output Voltage				30V Max.
	Line Regulation (@-25~70℃)				±5%
	Accuracy Constant(@-25~70℃)				±5%
	Set-up Time(@25℃)				2S Max.@100~277VAC, Full Load
	Temperature Coefficient(@-25~70℃)				±0.03%/℃
	Overshoot (@-25~70℃)				±5% No-load Rated Voltage
	Output Ripple & Noise			0<Ta≤70℃	≤4.0VP-P
				-25≤Ta≤0℃	/
Protection (-25~70℃)	Input Electrical		Low Voltage Protection		/
			Over Voltage Protection		/
	Output Electrical		Shorted Circuit Protection		Hiccup, Auto Recovery
			No-load Protection		Constant Voltage
	Over Temperature Protection				/
Environmental Requirement	Storage Temp. & Hum.				-20℃~70℃; 10%~95%RH No condensing
	Operating amb. Temp. & Hum.				-10℃~45℃; 20%~90%RH No condensing
	Altitude				3000m
	IPX				/
EMC	Isolation Resistance				Input--out: 50M OHMS
	Withstand Voltage				Input--out: 3KVAC/5mA
	Ground Impedance				/
	Safety Standards				IEC 61347-2-13/GB19510.14/UL8750
	EMI	CE			EN 55015:1998,+A1:2000 +A2:2003,CLASS B
		RE			EN 55015:1998,+A1:2000 +A2:2003,CLASS B
	Harmonic Current				EN6100-3-2
	EMS	CS			EN61000-4-6
		RS			EN61000-4-3
		SURGE			EN61000-4-5 Test: Power Line to Line:500V
		Voltage fluctuations&flicker			EN61000-3-3
		Power Frequency Harassment			EN61000-4-8
		EFT			EN61000-4-4
Other	Dimensions (L * W * H)				96.8mm X 37.8mm X 22mm;±1mm
	Weight				/
	Package				/
	Cooling Method				Ventilation Cooling
Reliability	Burn-in				The power supply shall go a minimum of 4 Hours burn-in test under full load condition.
	Design MTBF				20,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method
	Design electrolytic capacitor life				17520Hrs @50℃ Full load and units continuously working
Note	1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
Minimum Negative Load Requirements	None
Accessories	/
