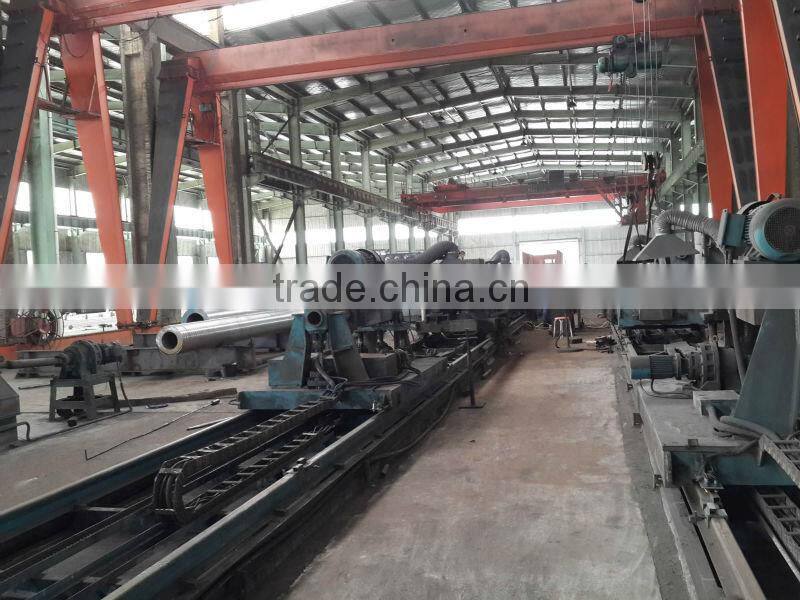

Steel Pipe Internal Grinding Machine for Carbon Steel Pipe
- 3 Set / Sets per Month
- Tianjin
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Gold selection equipment Mobile gold cart Job site
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | YAXING | Model Number: | MGN-II |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Steel pipe Internal Grinding Machine
Main technical parameters
1,Grinding Wheel Specification:
outer diameter×inner diameter×Thickness=Φ140~350mm(400)×Φ38~50(127)mm×30~100mm,grinding wheel granular 10#~36# thousand impeller (wire wheel).
2,Grinding steel pipe diameter range:Φ219~1420mm;
Grinding steel pipe length:5~14m.
3,Grinding head singl3 arm length(Long rod of grinding wheel spindle):length 6.5m~7.5(8)m.
4,Overall dimensions:28m×2m×2m(L×W×H).
5,Heavy model pipe inner grinding machine :Grinding head wheel grinding pressure controlled by the air pressure of PLC programme.Grinding head wheel go up and down electrically controlled by elevator.
6,Light model pipe inner grinding machine :Grinding head wheel grinding pressure, are controlled by a spring and balance weight.Grinding head wheel go up and down electrically controlled by elevator
7,Steel pipe inner circular grinding machine model is divided into three specifications :heavy, medium,and light .
(1)Heavy model:Long rod grinding wheel spindle diameter φ168mm;
(2)Medium model:Long rod grinding wheel spindle diameter φ140mm;
(3)Light model:Long rod grinding wheel spindle diameter φ86mm;
Remarks:Above the three kinds of main spindle of long rod grinding wheel the maximum length is 8 m.
Rating of machine:
No. | Usage | Motor type | Power/KW | Revolving speed r/min |
1 | Heavy model | Y-4(2)grade | 7.5,15,22,30,45 | 1400(2800) |
Medium model | ||||
Light model | ||||
2 | Grinding head move | Y-4 grade | 1.5~3 | 1400 Frequency modulation device |
3 | Steel pipe roller spindle rotation | Y-4 grade | 3~5.5 | 1400 Frequency modulation device |
According to the customer request :Room equipped with sound insulation dust removal,Dry type centrifugal suction dust removal device or Special centrifugal wet dust removal device(This device can effectively clear all kinds of fly ash).
We also engaged in tube testing machine, elbow pushing machine, pipe beveling machine, pipe internal and external grinding machine with patent too. All of them are the best quality with reasonable price. Welcome to visit our factory.
