Specifications
1.rigid electrical conduit elbow with ul approval2.Standard: UL 6/ ANSI C80.1
3.Hot dip galvanized
4.Threaded(NPT) both en

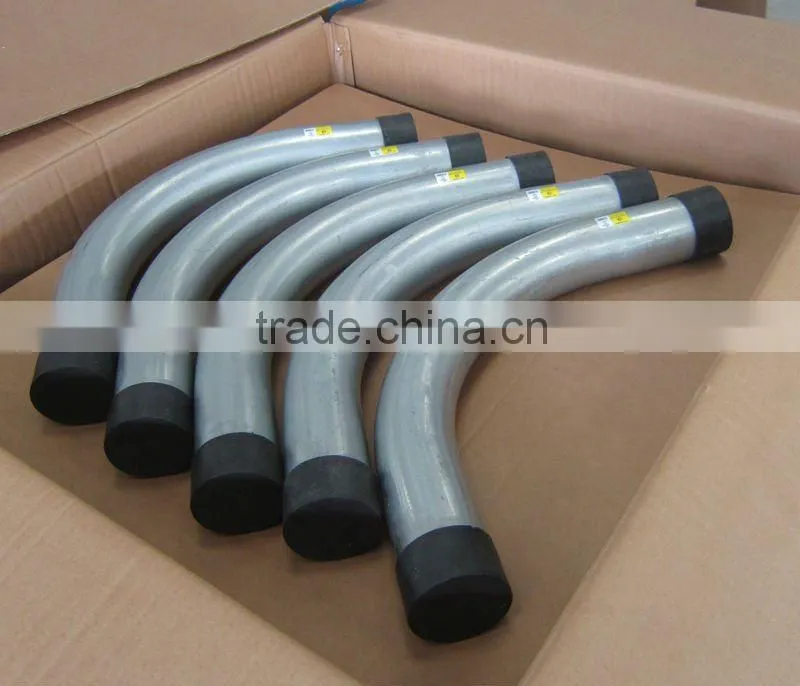

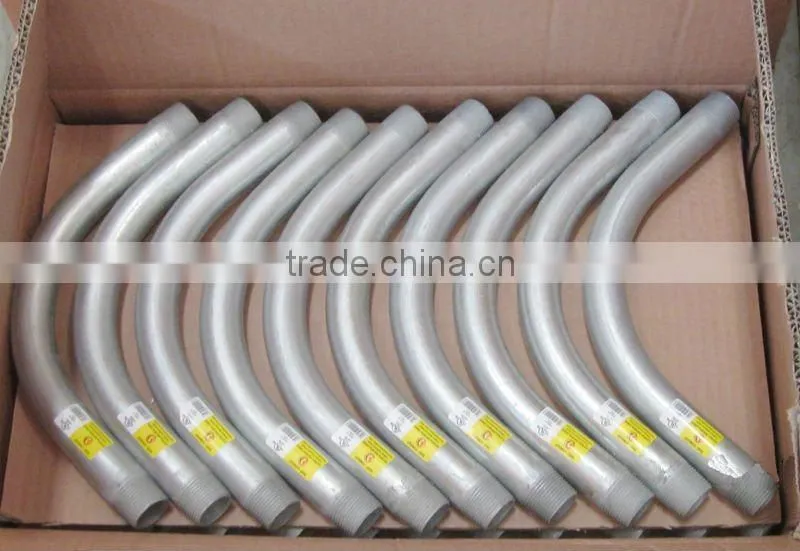

1.Product Name: rigid electrical conduit elbow with ul approval
2.Standard: UL 6/ ANSI C80.1
3.Tade Size : from 1/2” to 6”
90 deg/60deg / 45 deg/ 30 deg/ 22.5deg /15deg
4.Both ends: threaded both ends with plastic caps
5.Usage: for rigid conduit(RMC) connection
6.Surface finished: Hot dip galvanized(HDG).
7.Material : carbon steel coil
8.Package: carton
9.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
10.Payment Term: L/C at sight or T/T
Dimension Chart
Pipe Size(in) |
Minimum Centerline Radius |
UNBENT LENGHTS |
STANDARD CARTON PCS |
|
1/2" |
4" |
2-7/8" |
50 |
|
3/4" |
4-1/2" |
2-7/8" |
50 |
|
1" |
5-3/4" |
3-1/2" |
20 |
|
1-1/4" |
7-1/4" |
3-1/4" |
20 |
|
1-1/2" |
8-1/4" |
3-5/8" |
20 |
|
2" |
9-1/2" |
4-1/2" |
10 |
|
2-1/2" |
10-1/2" |
5-1/2" |
100 |
|
3" |
13" |
6-1/8" |
50 |
|
3-1/2" |
15" |
7-1/8" |
35 |
|
4" |
16" |
7-1/8" |
25 |
|
5" |
24" |
11" |
BLK |
|
6" |
30" |
12" |
BLK |
|
REMARK:Elbows special threading or special radius available upon request
CONTACT INFORMATION:
TEL:+86-536-8187056
FAX:+86-536-8051503
