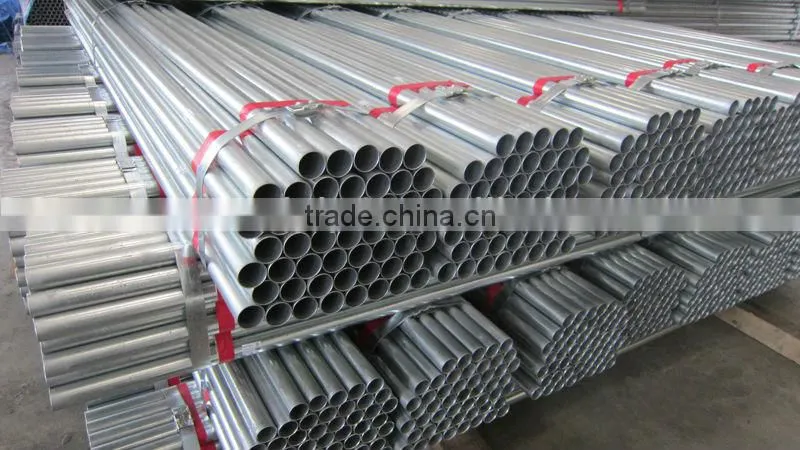

Help CenterGalvanized EMT Tubing
Related Products
Specifications
1.Galvanized EMT Tubing:Standard: UL797 & ANSI C80.32.UL certificate
3.Hot dip galvanized
1.Standard:UL797 & ANSI C80.3
2.Tade Size : from 1/2” to 4”
3.Length: 3050mm or according to customer’s requirement
4.Usage: through the electrical wires with the purpose of protection for the electrical raceway system
5.Surface finished: Hot dip galvanized(HDG).
6.Material : carbon steel coil
7.Package: the conduits coverd with pvc paper then tied with steel straps
8.Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
9.Payment Term: L/C at sight or T/T
Dimension and Weight Chart
Trade Size |
Nominal Wt. per 100Ft(30.5M) |
Nominal Outside Diameter |
Nominal Wall Thickness |
||||
U.S. |
Metric |
Lbs |
Kg |
In. |
mm |
In. |
mm |
1/2 |
16 |
30 |
13.5 |
0.706 |
17.93 |
0.042 |
1.07 |
3/4 |
21 |
46 |
20.7 |
0.922 |
23.42 |
0.049 |
1.24 |
1 |
27 |
67 |
30.6 |
1.163 |
29.54 |
0.057 |
1.45 |
1-1/4 |
35 |
101 |
45.6 |
1.510 |
38.35 |
0.065 |
1.65 |
1-1/2 |
41 |
116 |
52.8 |
1.740 |
44.20 |
0.065 |
1.65 |
2 |
53 |
148 |
67.2 |
2.197 |
55.80 |
0.065 |
1.65 |
2-1/2 |
63 |
216 |
97.9 |
2.875 |
73.03 |
0.072 |
1.83 |
3 |
78 |
265 |
120.0 |
3.500 |
88.90 |
0.072 |
1.83 |
3-1/2 |
91 |
348 |
158.0 |
4.000 |
101.60 |
0.083 |
2.11 |
4 |
103 |
392 |
178.0 |
4.500 |
114.30 |
0.083 |
2.11 |
Applicable Tolerances:
Length: 10Ft (3.05m) ± ¼” (±6.35mm).
Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51mm)
