Plastic film blowing machine/pe film blowing machine/film blowing machine
Ⅰ.Technical parameters and Configuration

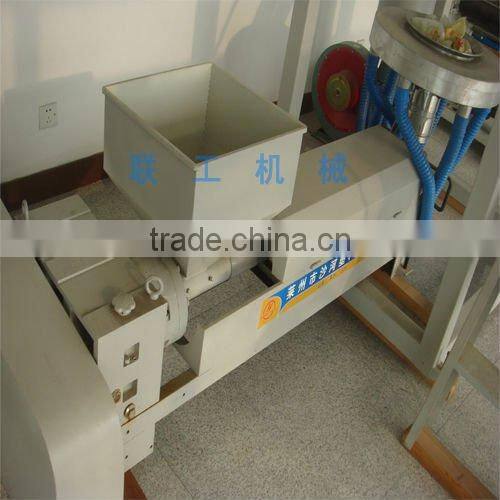

1.Extrusion machine part
Screw diameter:50mm
Screw L/D ratio:28/1

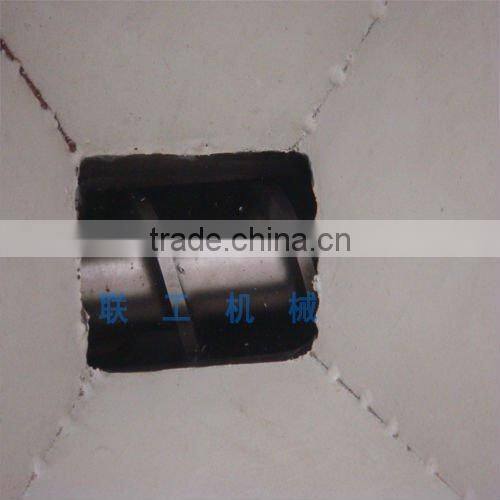

Form of structure:Undulation with the mixing head screw
Screw material: the material use the 38CrMoAlA
Processing craft: normalizing-tempering-stress relief-nitriding
Screw max. rotating speed:100M/MIN
Cylinder heating area quantity:3 area
Heater form:stainless steel heater
Cylinder cooling air machine:(total 1 set)
Structure and form:Inner use the cast-aluminium circle,outer use the stainless steel heating coil.
Reducer box material:matched the hard tooth face gear box.
Gear box lubricating method:Oil circulation lubrication
Host motor power:11KW;The motor frequency conversion control

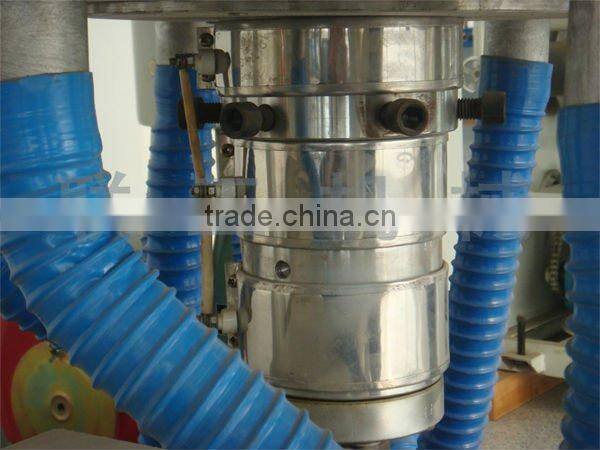

2. Mould head parts
Mould head diameter:40-120(Optional 1 )
Mould head gap:1.2-2.0MM
Heater: stainless steel heater
Nose material:45#;The nose inner flow pipeline plates the hard chromium.

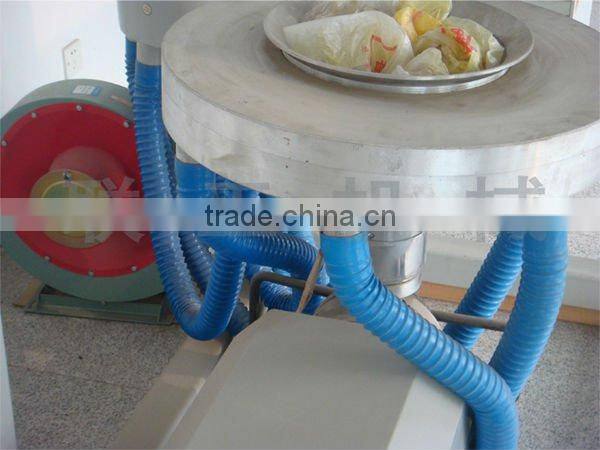

3. Cooling device
Material:cast aluminium wind link(air cooling)
Wind link cooling air machine power:1.1KW
4. Pulling system
Steel frame structure:equipped with the safe operation platform and the security guard rail
Pulling height:3.6M
Pulling roll length:700MM
Pulling roll material:rubber roll
Pulling motor:1.1KW; The motor frequency conversion control

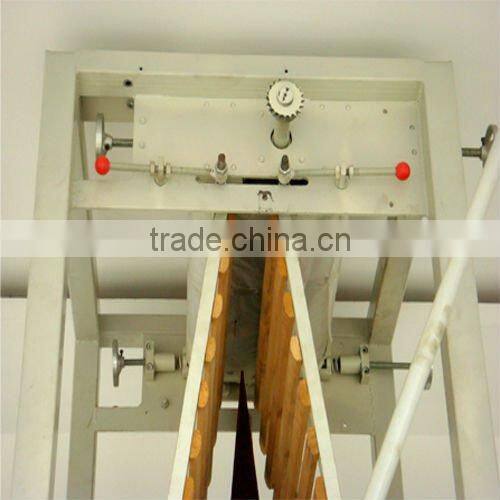

Herringbone board installment material:quadrate steel structure frame
The frame of machine uses quadrate steel type,the staircase uses the staircase with a handrail type.
Winding form:Friction type single winding;controlled by torque motor.
Winding motor:10N.M torque motor
Winding speed:10-60M/MIN
Ⅱ.Effective blowing specification
Blowing width:100-600MM(folding diameter)
Blowing thickness:0.008-0.08mm
Suitable material:LDPE ,HDPE.LLDPE
Max. production capacity:40KG/H
