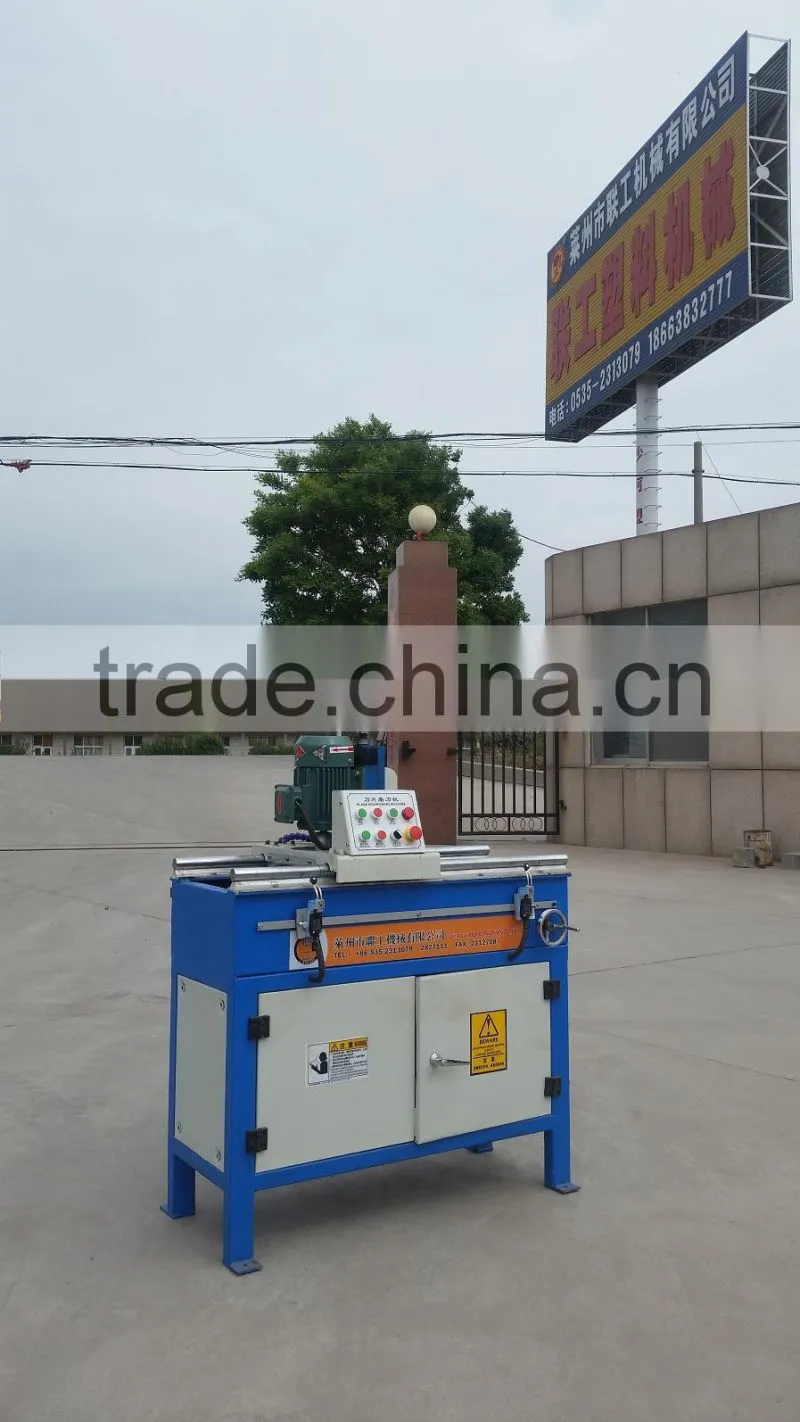

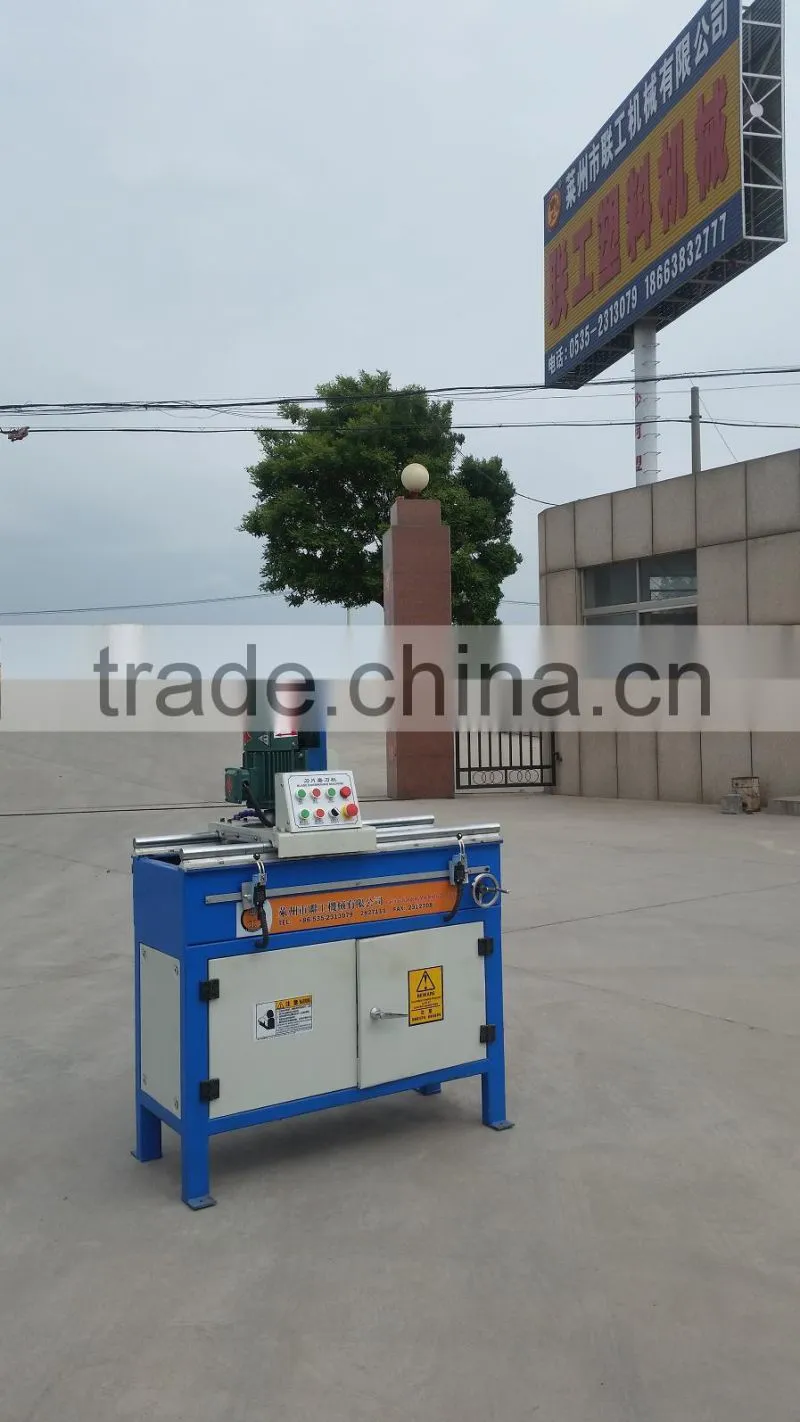

China Knife Grinding Machine/Knife Grinder/Blade Sharpener Supplier
- 1000 Set / Sets per Month
- Qingdao
- T/T
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | liangong |
| Model Number: | LGSJ | Voltage: | 380V | Power(W): | 0.55 |
| Dimension(L*W*H): | 2200*850*1450MM | Weight: | 1.7T | Certification: | CE/BV |
| Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China Knife Grinding Machine/Knife Grinder/Blade Sharpener Supplier
Knife Grinding Machine, Knife Grinder/Blade Sharpener is nation-grade new product developed by our factory. It is applicable to grinding blades of imported Kolbus, Wohhenberg, Sulby, Bona and Snad. It is a renewal product for the advantages of small volume and energy-saving as well as sharp knife-edge at any angle grinded by this machine. Its technical standard has been up to the advanced level in 1990s at home and it has well received by the customers from Southeast Asia, Africaand Europe, etc., through further selling.
| No. | Description | Specification & Type | ||
| MSQ-1650E | MSQ-2200E | |||
| 1 | Max. grinding length | 1700mm | 2200mm | |
| 2 | Grinding Wheel Speed | 1400rpm | ||
| 3 | Size of polishing disc | 140mmX6 | ||
| 4 | Width of grinding blade | 180mm | ||
| 5 | Rotation angle of worktable | 0~± 90° | ||
| 6 | Moving speed of grinding-head | 2-15M/minute | ||
| 7 | Grinding wheel attached Specification. | |||
| A. Type and Code | White corundum(GB) | |||
| B. Hardness | Soft 3, J(R3) | |||
| C. Granularity | 46#/60# | |||
| D. Size of grinding wheel | 200X100X100 | |||
| 8 | Max. sunction of magnetic disc | 10T | ||
| 10 | Power of grinding motor | 3kw | ||
| 11 | Power of polishing motor | 055kw/1440r/min. | ||
| 12 | Power of pump | 125W | ||
| 13 | Automatic blade-feeding amount | Fine grinding | 0.0075-0.03mm | |
| Coarse grinding | 0.0075-0.03mm | |||
| 14 | Weight | 1.8T | 2.2T | |
| 15 | Outside dimensions (LengthxWidthxHeight ) | 3060x850x1450mm | 3580X850X1450mm | |
