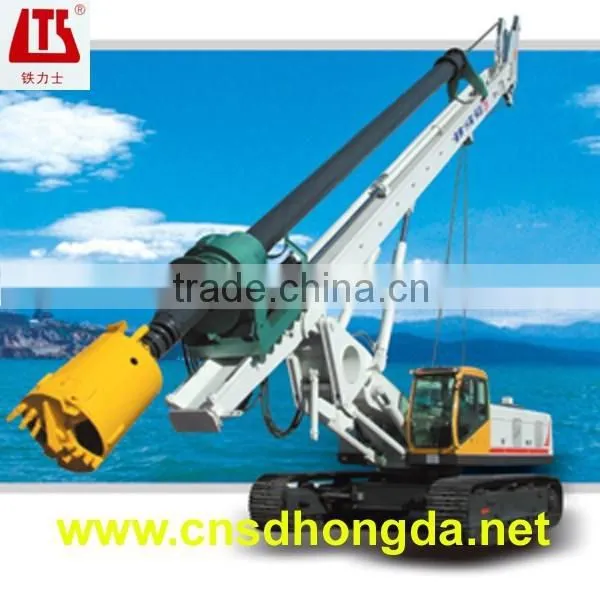

Rotary Drilling Rig HDR230 20-40-60m (piling Machinery) photo-2

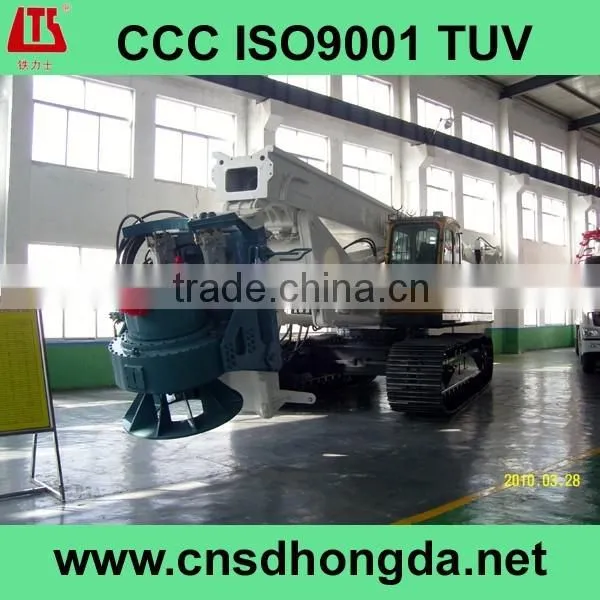

Rotary Drilling Rig HDR230 20-40-60m (piling Machinery) photo-3

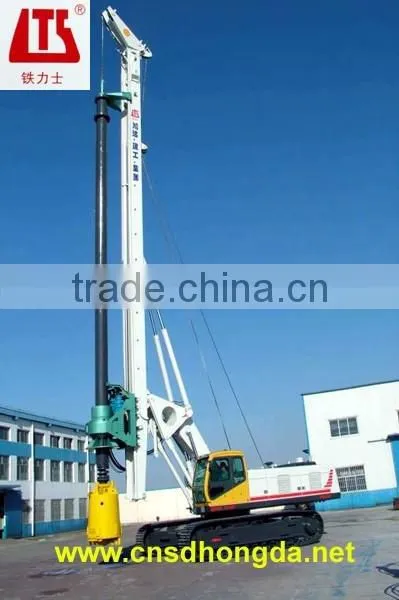

Rotary Drilling Rig HDR230 20-40-60m (piling Machinery) photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Shandong Hongda Construction Machinery Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Shandong, China
Brand Name TLS (Iron Giant)
Model Number HDR230
Usage Other, piling machine
Voltage 380
Power(W) 246KW
Dimension(L*W*H) 10.5m*4.3m*20.6m
Weight 65T
Certification CCC/ISO9001/TUV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

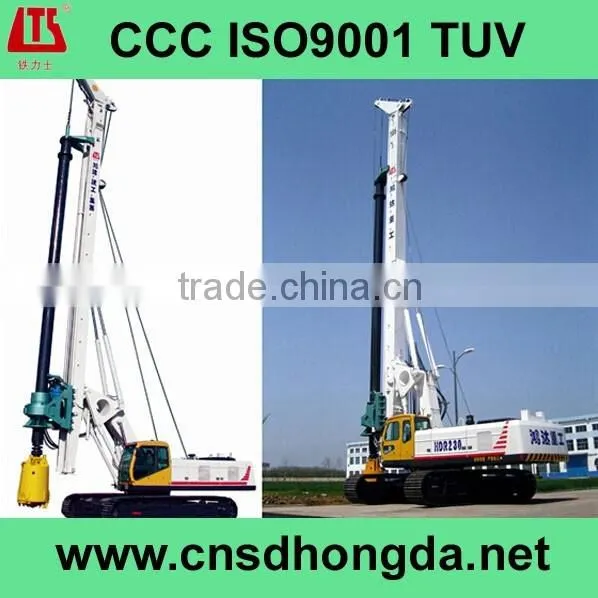

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)
TLS(Iron Giant) Brand, Famous Trademark of China
CCC/ISO9001/TUV Certified

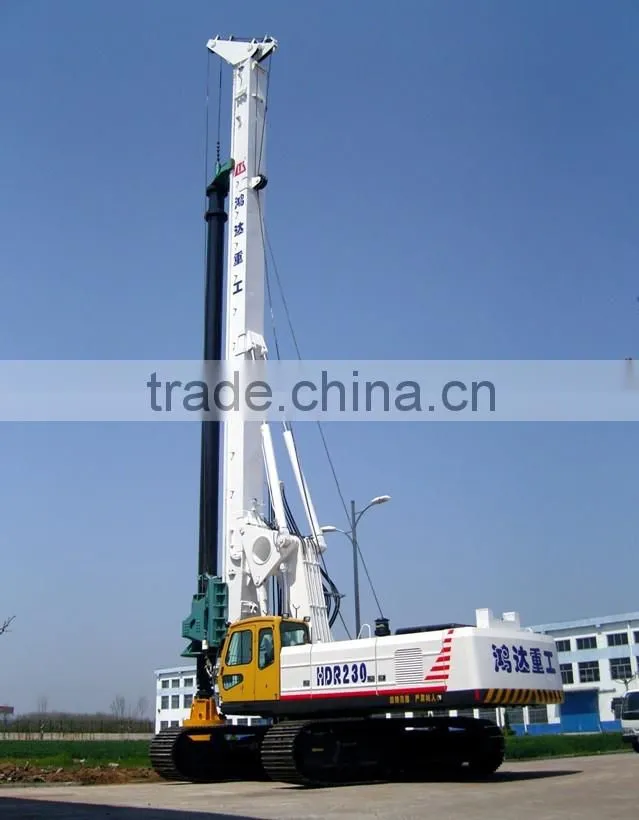

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)
 Rotary Drilling Rig HDR230 20-40-60m (piling machinery)

I. Uses of Rotary Drilling Rig
HONGDA ZJ40  piling rig is an efficient boring rig in big-bore pile-base project construction, which mainly applies to such base constructions as railway,road,bridge, public works bridge and large building,etc.

II. Main technical parameters of Rotary Drilling Rig
Max. drilling torque 200 kN.m
Max. drilling diameter 2m
Max. drilling depth 60m
Max. lifting capacity of main windlass 210KN
Max. lifting speed of main windlass 76m/min
Max. lifting capacity of assistant windlass 98KN
Max. lifting speed of assistant windlass 60m/min
Driving force of pressurizing system 180KN
Max. climbing grade 40%
Engine rated power 246kw
Engine rated rotating speed
Overall weight 65t


III. Technical advantages of Rotary Drilling Rig

3.1 Efficient and energy-saving engine limit power regulating system suppliDrawing force of pressurizing system 200KN

Pressurizing stroke 5000mm
Max. driving speed 1.5km/h

es strong power.
3.2 Double motor high-low speed power head ensures efficient drilling-in.
3.3 Frictional and interlocking drilling rod are equipped with all kinds of slewing bucket and short or long optional helical bore and have drilling rod auto-assemble function.
3.4Retractable caterpillar chassis facilitates improving drilling work’s stability and reducing transport width.
3.5 Self-spelling folding drilling mast can realize conversion between working and transport condition without employing external force.
3.6Main and assistant windlass are arranged on turn table to improve its overall stability.
3.7 Comprehensive numerical control slewing platform combined with parallelogram amplitude varying device makes boring tool position rapidly and accurately.
3.8 Drilling depth and single drilling footage can automatically measure and display.
3.9 A new drilling mast auto-adjusting electric control system not only control drilling mast’s working position but also control its rising-and-falling process.
3.10 Unique assistant windlass mechanism improves system’s working efficiency,guarantees accuracy of drilling depth measuring, and makes mast rising-and-falling process smooth and fluent.
3.11 A large and bright cabin is equipped with air-conditioner to create a comfortable operating environment.
3.12 A large and bright cabin is equipped with air-conditioner to create a comfortable operating environment.
3.13 It has a simple and handy control device.
3.14 An adequate linkage control and error-proof operating system.
3.15 Engine,hydraulic pump, hydraulic motor, hydraulic valve, reductor,chassis part,electronic control device,and other key parts all adopt international top brand.


IV. Main configuration parts of Rotary Drilling Rig

1,Engine--imported original AMRICA CUMMINGS M11-C330 type.
2,Hydraulic parts--imported original GERMANY REXROTH(the machine’s all hydraulic pump,hydraulic motor,hydraulic valve).
3,Chassis parts—from ITALY BERCO S.P.A.(including caterpillar assembly,driving roller, guiding roller,track roller,carrier roller,etc.).
4,Power head—main body from SHANGHAI SAIDA TRANSMISSION EQUIPMENT COMPANY equipped with ITALY BREVINI double speed reductor and with GERMANY REXROTH variable hydraulic motor.
5,Main and assistant windlass—from GERMANY REXROTH COMPANY(BEIJING) (including reductor and drum and equipped with imported REXROTH variable hydraulic motor).
6,Walking reductor—from GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).
7,Slewing reductor—from GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).



Total equipment

Out dimension-work

m

10.5*4.3*20.6

Out dimension-transportation

m

15.5*3.2*3.45

Total weight

T

65

Total weight in transportation

T

55

Telescopic chassis

Max. speed

Km/h

1.5

Max. grade ability

%

40

Min. group clearance

mm

468

Diesel engine

Model

Cummins M11-C330

Rated power

kw

246

Rated rotation speed

rpm

2100

Fuel tank volume

L

450

Hydraulic system

Oil pump flow speed

L/min

210*2+90

Rated working pressure

Mpa

30

Hydraulic oil tank volume

L

800

Main windlass

Max. lifting capacity

KN

210

Steel rope diameter

mm

28

Max. lifting speed

m/min

76

Steel rope length

m

90

Assistant windlass

Max. lifting capacity

KN

98

Steel rope diameter

mm

20

Max. lifting speed

m/min

60

Drill head

Rotate torque

KNm

200

Drill speed

rpm

0~25

Earth-throwing off speed

rpm

110

Max. drilling hole diameter-with bushing

mm

1500

Max. drilling hole diameter-without bushing

mm

2000

Compression system

Oil cylinder stroke

mm

5000

Max. adding force

KN

180

Max. pulling force

KN

200

Telescopic drill pipe

Friction mode (Max. depth)

m

5*13(60)

Inner-locking mode (Max. depth)

m

4*13(47)

Working arm obliquity

Front

.

5

Rear

.

15

Left & Right

.

±5

Rotate platform

Rotate degree

.

360

Rotate speed

r/min

2.5



V. Brief Introduction to Our Company

We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:

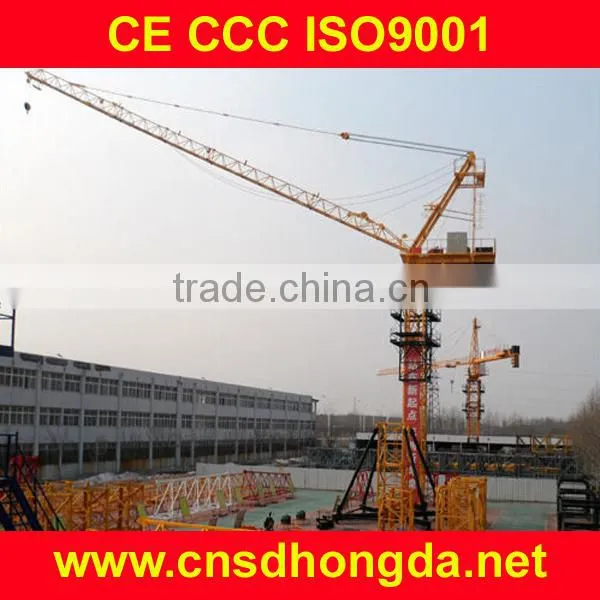

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

https://img13.fr-trading.com/product-detail/Tower-Cranes-QTZ80-QTZ125_498888777.html

https://img13.fr-trading.com/product-detail/QTZ500-QTZ160-Tower-Cranes_497987336.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



2. Construction Elevators(multi-speed, stepless-speed);

https://img13.fr-trading.com/product-detail/Construction-Hoist-SC100-100-_227791020.html

https://img13.fr-trading.com/product-detail/High-Efficiency-Professional-SC200-200-Construction_223958370.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

https://img13.fr-trading.com/product-detail/Double-horizontal-shaft-Concrete-Mixer-JS750-_222290944.html

https://img13.fr-trading.com/product-detail/China-Made-TLS-Brand-Portable-Concrete_2006285971.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



4. Concrete Batchers;

https://img13.fr-trading.com/product-detail/PLD1200C-Concrete-Batcher-with-CCC-ISO9001_1991130583.html

https://img13.fr-trading.com/product-detail/PLD1600C-Concrete-Batcher-on-Sale-concrete_1990878829.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)

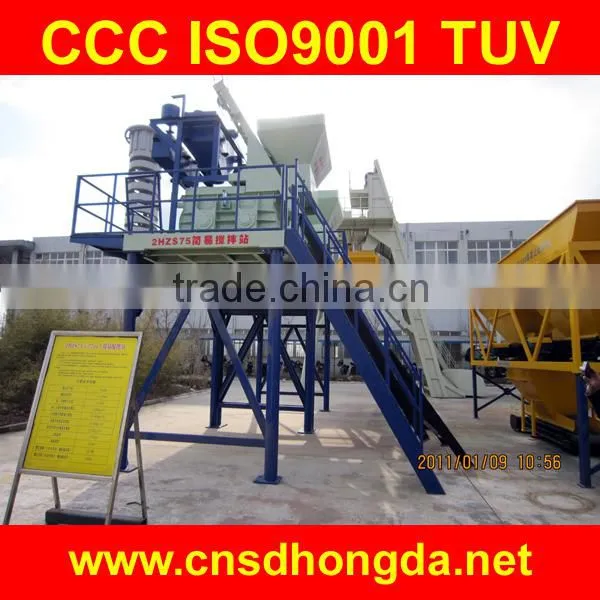

5. Concrete Mixing/BatchingPlants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

https://img13.fr-trading.com/product-detail/Hot-Selling-Professional-HZS35-Concrete-Mixing_519625264.html

https://img13.fr-trading.com/product-detail/HZSX120-Concrete-Mixing-Plant-120m3-h_1962180437.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



6. Concrete Truck Mixers (6-16m3);

https://img13.fr-trading.com/product-detail/6m3-Concrete-Transit-Mixer-2014-New_2022266528.html

https://img13.fr-trading.com/product-detail/CCC-ISO9001-TUV-Certified-Hot-Selling_2022204316.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



7. Truck-mounted Concrete Pumps (diesel, electric);

https://img13.fr-trading.com/product-detail/2014-New-Designed-HDT5120THB-Truck-mounted_2023195646.html

https://img13.fr-trading.com/product-detail/Truck-mounted-Concrete-Pump-2014-new_222860643.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)



8. Trailer-mountedConcrete Pumps (diesel, electric);

https://img13.fr-trading.com/product-detail/CCC-ISO9001-Approved-Hot-Selling-HBT60S1816_2023118123.html

https://img13.fr-trading.com/product-detail/2014-New-Designed-HBT60S1816-145R-Trailer_1983822516.html

Rotary Drilling Rig HDR230 20-40-60m (piling machinery)

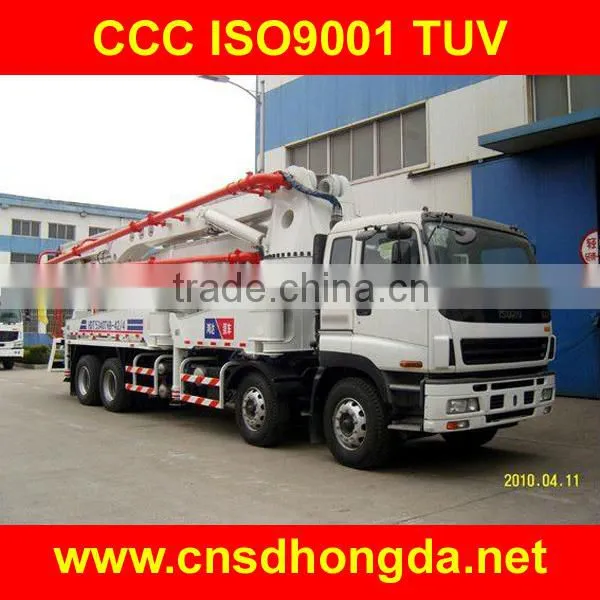

9.Concrete Pump Trucks (with 24-52m booms);
