Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale

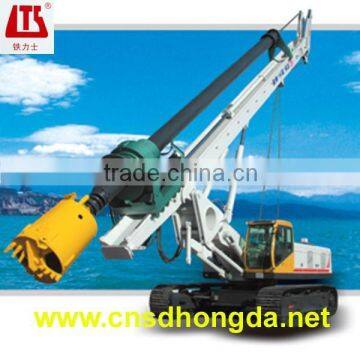

Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale photo-1

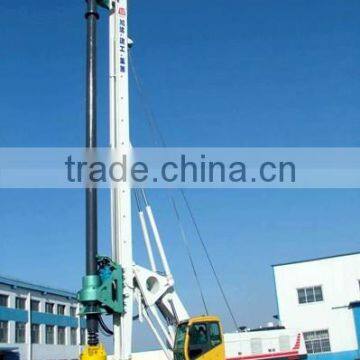

Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale photo-2

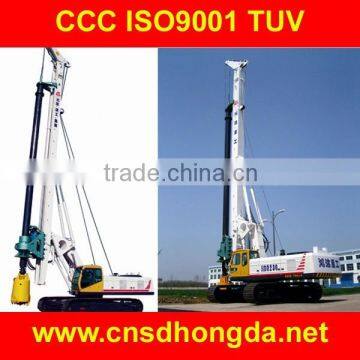

Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale photo-3

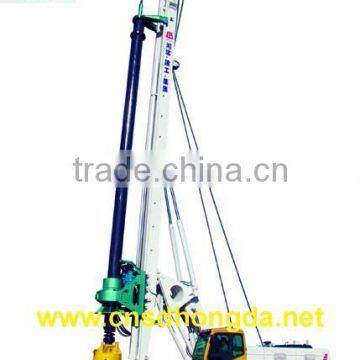

Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale photo-4
Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Electric
Place of Origin Shandong, China
Brand Name Tie Li Shi (Iron Giant), Famous Trademark of China
Model Number HDR230
Usage Other, piling machine
Voltage 380V
Power(W) 246
Dimension(L*W*H) 15.5*3.283.45
Weight 65T
Certification CCC/ISO9001
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

 Rotary Drilling Rig HDR230 (65T) 60m-70m-500m-1000m



The  Shandong HONGDA HDR230 All-hydraulic Rotary Drilling Rig is an efficient drilling rig in large-caliber pile foundation projects, such as the base construction of railway bridges, road bridges, public works bridges and large buildings.



 Main technical parameters

Total Machine



Overall Dimension (At Work)

m

10.5×4.3×20.6

In Transportation

m

15.5×3.2×3.45

Total Weight

T

65

Total Weight in Transportation

T

55

Telescopic Chassis



Max. Traveling Speed

km/h

1.5

Max. Grade Ability

%

40

Min. Ground Clearance

mm

468

Diesel Engine



Model

Cummins M11-C330

Rated Power

kw

246

Rated Rotating Speed

rpm

2100

Fuel Tank Volume

L

450

Hydraulic System



Hydraulic Oil Pump Flow

L/min

210×2+90

Rated Working Pressure

Mpa

30

Hydraulic Oil Tank Volume

L

800

Main Windlass



Max. Lifting Capacity

KN

210

Steel Rope Diameter

mm

28

Max. Lifting Speed

m/min

76

Steel Rope Length

m

90

Assistant Windlass





Max. Lifting Capacity

KN

98

Steel Rope Diameter

mm

20

Max. Lifting Speed

m/min

60

Drill Head



Rotary Torque

KNm

230

Max Drilling Depth

m

70

Drilling Speed

rpm

0-25

Earth-throwing-out Speed

rpm

110

Max. Drilling Hole Diameter

----With Bushing

mm

1500

----Without Bushing

mm

2000

Compression System



Oil Cylinder Stroke

mm

5000

Max. Force Added

KN

180

Max. Pulling Force

KN

200

Telescopic Drill Pipe



Friction Mode Drill Pipe (Max. Depth)

m

5×1360

Inner-locking mode (Max. Depth)

m

4×1347

Working Arm Obliquity



Front

°

5

Rear

°

15

Left & Right

°

±5

Rotating Platform





Rotating Degree

°

360

Rotating Speed

r/min

2.5





We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 30 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”. Our products have passed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

2. Construction Elevators (multi-speed, stepless-speed);

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

4. Concrete Batchers;

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

6. Concrete Truck Mixers (6-16m3);

7. Truck-mounted Concrete Pumps (diesel, electric);

8. Trailer-mounted Concrete Pumps (diesel, electric);

9. Concrete Pump Trucks (with 24-52m booms);

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);

11. Stabilized Soil Mixing Plants;

12. Rotary Drilling Rigs...
