JZM350 JZM500 JZM750
(25-480m3/h) mobile Concrete Batching Plant,
Concrete Mixing Plant, Beton Mixing Plant
Specifications
1.Manufactory of construction machinery in China Since 1984.
2.Advanced Production Technology.
prehensive after-sales servis
- Company Profile
- Established in 1984, Shandong Hongda Construction Machinery Group Co., Ltd. . is a professional manufacturer of construction engineering machinery. Covering an area of 27,000 square meters, we have our own team of research, design, production and sale. Insisting on the business philosophy of "being existence by quality, getting development by variety, winning reputation by service", our company has a long-standing development. Our products, from design, purchase, production and test to sale, are regulated according to the international quality management system, which guarantees the machinery to be perfect.
- Specifically, the main products
The JZ series of reverse discharge cone concrete mixer has the featrues of compact structure,highefficiency, stable quality, good exchangeability, high reliability and beautiful layout. it can be used in mixing dry hardness, plastic light aggregate concrete with ash, line mortat widely used in building sites, roads, btidges and concrete component factories.

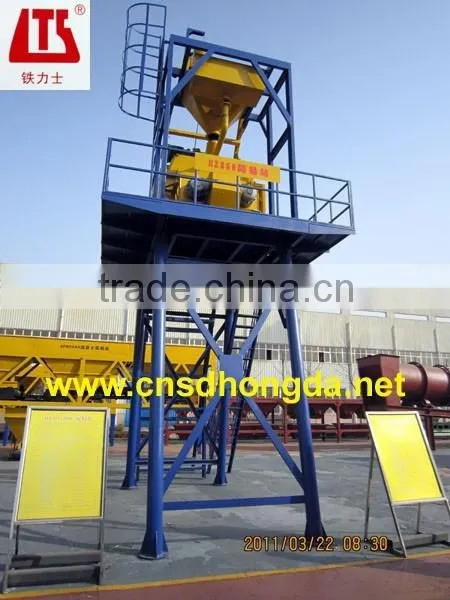

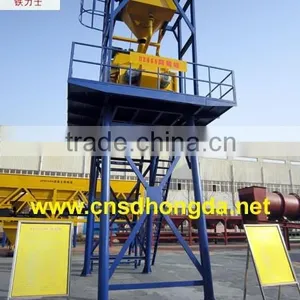

Concrete batching plant
Concrete batcher series is an automatic batching equipment matched with mixer.it can automaticly complete batching of sand,pebble and other materials according to the mixing ratio set by users and adopts electronic balance,digital display .It has the features of accurate weighing,fast speed,high control and simple operation and can be matched with mixer to form a concrete mixing plant.
JZM350 JZM500 JZM750
modle |
JZM350
|
JZM750 |
JZM500 |
Discharge Capacity(L) |
350 |
750 |
500 |
Charge Cpacity(L) |
560 |
1200 |
800 |
Productuvity(m3/h) |
11 |
25 |
15 |
Max Aggregate Diameter(mm) |
60 |
80 |
80 |
Mixing Motor Power(kw) |
5.5 |
2x7.5 |
11 |
Lifting Motor Power(kw) |
/ |
7.5 |
5.5 |
Pump Moter Power(kw) |
0.55 |
0.75 |
0.75 |
Mixing Barrel Rotation(r/min) |
14 |
13 |
14 |
Mixing Period(s) |
40 |
50 |
40 |
Total Weight(kg) |
1830 |
4370 |
3500 |
Overall Dimension(LxWxH)mm |
2727x2094x3154 |
4180x2030x2940 |
3445x2120x2825 |
HZS25/35/50/75/120
| Modle | HZS25 | HZS35 | HZS50 | HZS75 | HZS120 | |
| Total System | Theoretical Productivity(m3/h) | 25 | 35 | 50 | 75 | 100 |
| Discharge Height(m) |
1.5/2.5 /3.8 |
1.8/2.5 /3.8 |
3.8 | 3.8 | 3.8 | |
| Main Mixer | Modle | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Mixing Motor Power (kw) | 18.5 | 30 | 37 | 2x30 | 2x37 | |
| Charge Capacity(L) | 800 | 1200 | 1600 | 2400 | 3200 | |
| Disharge Capacity(L) | 500 | 750 | 1000 | 1500 | 2000 | |
|
Max Aggregate Size(mm) grave/pebble |
40/60 | 40/60 | 40/60 | 60/80 | 80/100 | |
| Weighing system | Aggregate Weighing Scope and Accuracy | 1800±2% | 2500 ±2% | 3000 ±2% | 4000 ±2% | 5000 ±2% |
| Granule Weighing Scope and Accuracy | (90~300) ±1% | (150~500) ±1% | (180~600) ±1% | (300~1000) ±1% | (360~1200) ±1% | |
| Water Weighing Scope and Accuracy | Accoring to custormers' requirements | (120~400) ±1% | (150~500) ±1% | |||
| Additive Weighing Scope and Accuracy | Accoring to custormers' requirements | (9~30) ±1% | (15~50) ±1% | |||
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
https://img13.fr-trading.com/product-detail/40m-boom-2-5T-tip-load_60005608128.html
https://img13.fr-trading.com/product-detail/High-Efficiency-Low-Energy-Consumption-QTZ31_2001302483.html

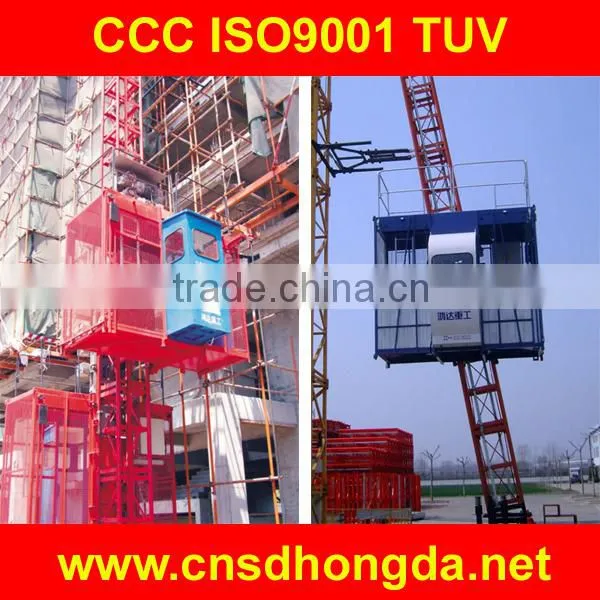

2. Construction Elevators (multi-speed, stepless-speed);
https://img13.fr-trading.com/product-detail/Best-Price-Professional-China-Made-Elevation_2017657255.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-CCC-ISO9001-Certified-Elevation_2016755142.html
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
https://img13.fr-trading.com/product-detail/2014-New-Designed-Hot-Selling-JS350_2023372188.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-Professional-JS500-Self-Loading_60009721152.html

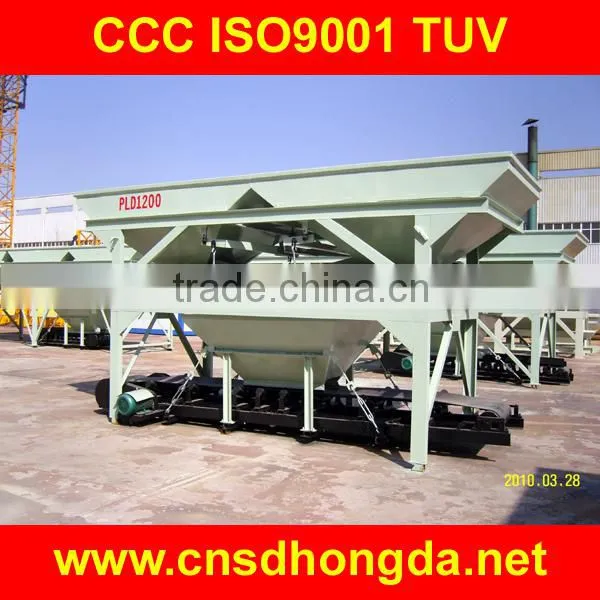

4. Concrete Batchers;
https://img13.fr-trading.com/product-detail/PLD1200C-Concrete-Batcher-with-CCC-ISO9001_1991130583.html
https://img13.fr-trading.com/product-detail/PLD1600C-Concrete-Batcher-on-Sale-concrete_1990878829.html

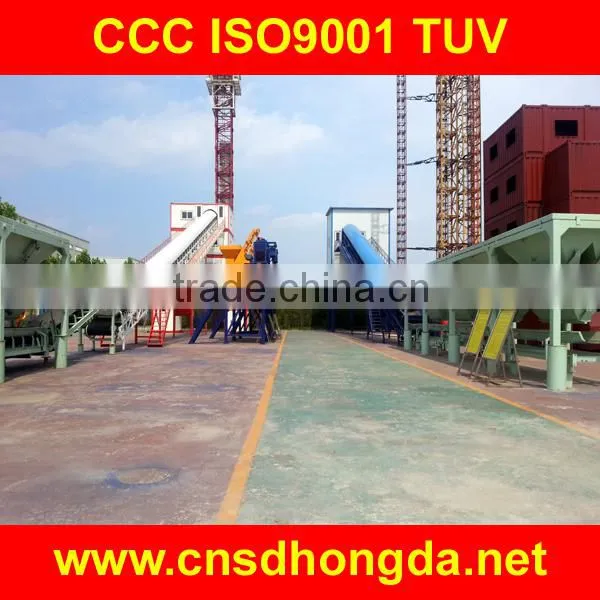

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
https://img13.fr-trading.com/product-detail/High-Efficiency-Professional-YHZS50-60-Concrete_522442779.html
https://img13.fr-trading.com/product-detail/Hot-Selling-Professional-HZS180-Concrete-Batching_1979859025.html

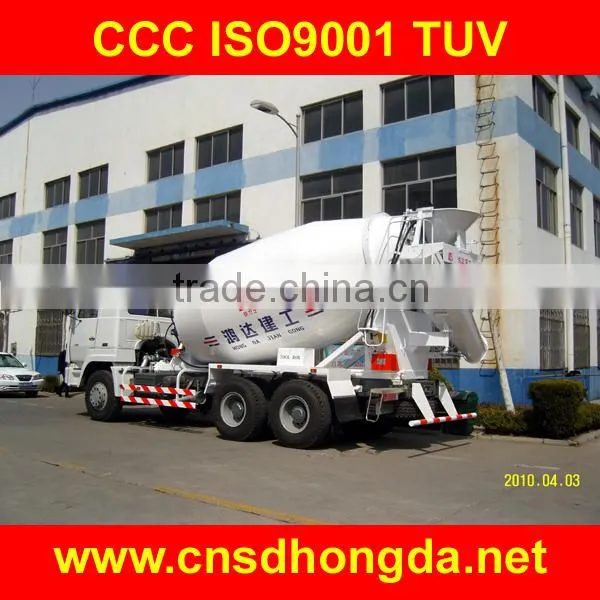

6. Concrete Truck Mixers (6-16m3);
https://img13.fr-trading.com/product-detail/6m3-8m3-9m3-10m3-12m3-14m3_348371644.html
https://img13.fr-trading.com/product-detail/16m3-Concrete-Mixer-Truck-with-CCC_60009332582.html
7. Truck-mounted Concrete Pumps (diesel, electric);
https://img13.fr-trading.com/product-detail/Excellent-Performance-HDT5120THB-Truck-mounted-Concrete_2023158081.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-HDT5120THB-Truck-mounted-Concrete_2023097893.html

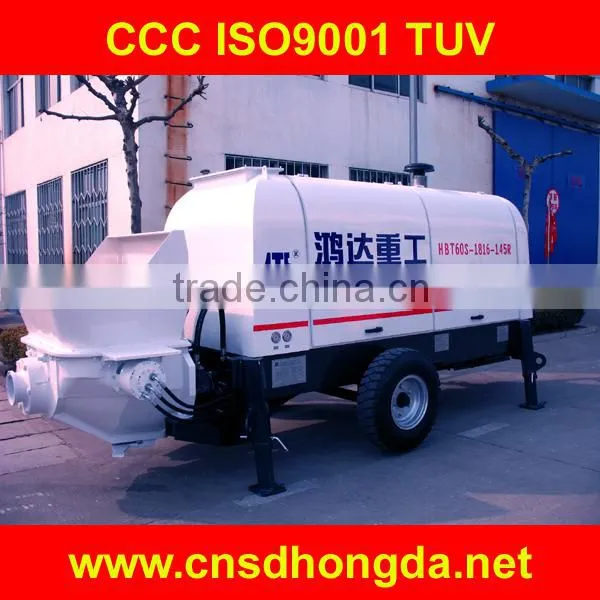

8. Trailer-mounted Concrete Pumps (diesel, electric);
https://img13.fr-trading.com/product-detail/2014-New-Designed-HBT60S1816-145R-Trailer_1983822516.html
https://img13.fr-trading.com/product-detail/CCC-ISO9001-Approved-HBT60S1816-145R-Trailer_2022979285.html

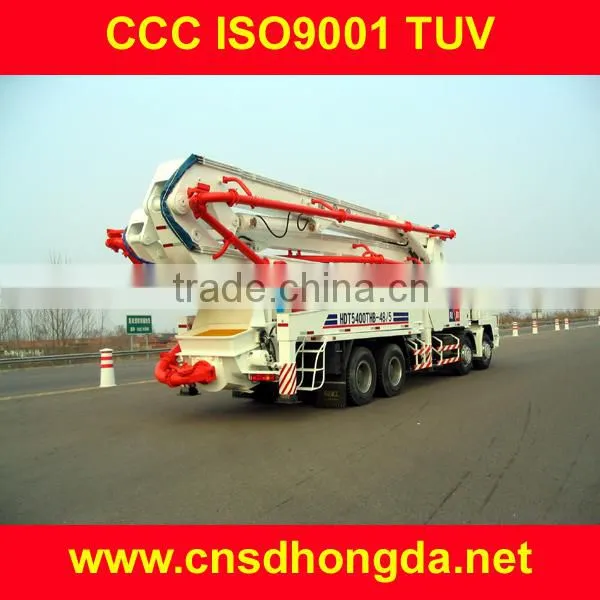

9. Concrete Pump Trucks (with 24-52m booms);
https://img13.fr-trading.com/product-detail/2014-New-Hot-Selling-39m-boom_2015711527.html
https://img13.fr-trading.com/product-detail/48m-24m-37m-39m-42m-45m_980982169.html

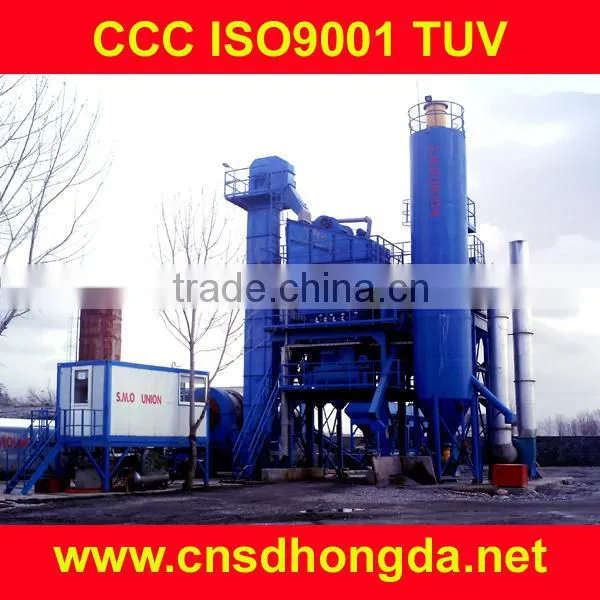

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
https://img13.fr-trading.com/product-detail/Excellent-Performance-China-Made-Asphalt-Batching_345381450.html
https://img13.fr-trading.com/product-detail/-40-60-80-120-160_345380328.html
11. Stabilized Soil Mixing Plants;
https://img13.fr-trading.com/product-detail/2014-New-Modular-Designed-WCB400-Stabilized_224681722.html
https://img13.fr-trading.com/product-detail/Excellent-Performance-2014-new-Designed-Stabilized_224681266.html
12. Rotary Drilling Rigs...
https://img13.fr-trading.com/product-detail/Excellent-Performance-HDR200-Rotary-Drilling-Rig_1986332579.html
https://img13.fr-trading.com/product-detail/2014-New-Designed-Professional-HDR200-Rotary_60006211732.html
Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
Why Choose TLS?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on Concrete Batching Plant according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
1.Is the price you offer is best price?
The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.
2.What's your Delivery Time?
It depends on your special requirements. Normally the delivery time is 25- 35 working days.
3.Do you want to know more about this company before you make a deal? Request an Assessment Report.
Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.
4.How long is your Warranty period?
12 months since delivery the machine .
More information can be get by contact with HONGDA Group.
You are warmly welcomed to visit our products!
If you have any question, please feel free to contact us.
