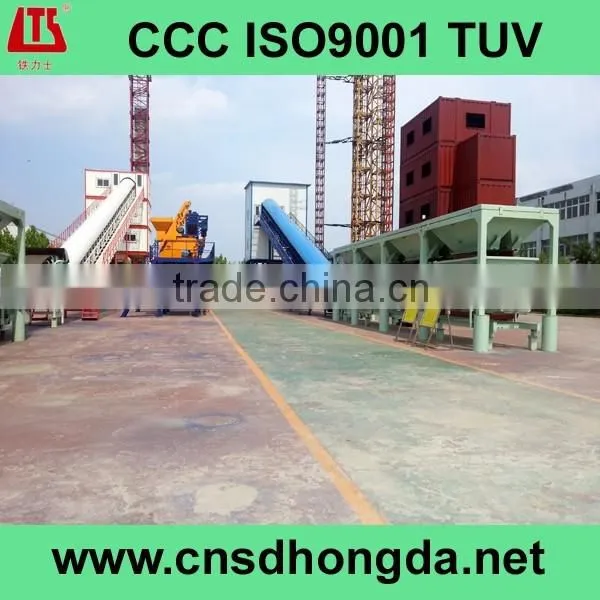

Help CenterConcrete Mixing Plants /Batching Plants(25m3/h-480m3/h) CCC, ISO9001
Related Products
-
2015 New Designed Professional HONGDA Concrete Mixing Plant HZS90 PriceNegotiableMOQ: 1 Set -
JZM350 JZM500 JZM750 HZS25/35/50/75/120/180 Concrete Batching Plant, Concrete Mixing Plant, Beton Mixing Plant(25-480m3/h )NegotiableMOQ: 1 Set
-
25-40-50-60-75-90-120-180-240-360m3/h Mobile Concrete Plant, Mobile Concrete Batching Plant, Mobile Concrete Mixing PlantNegotiableMOQ: 1 Set
-
Professional 60-240m3/h HZS60/90/120/180/240 Concrete Batching Plant on SaleNegotiableMOQ: 1 Set
-
48m 24m-37m-39m-42m-45m-52m-56m Concrete Pump Trucks on SaleNegotiableMOQ: 1 Set
Tie Li Shi (Iron Giant) Brand
CCC/ISO9001 Approved

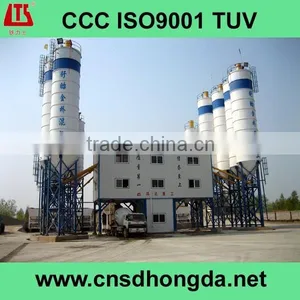

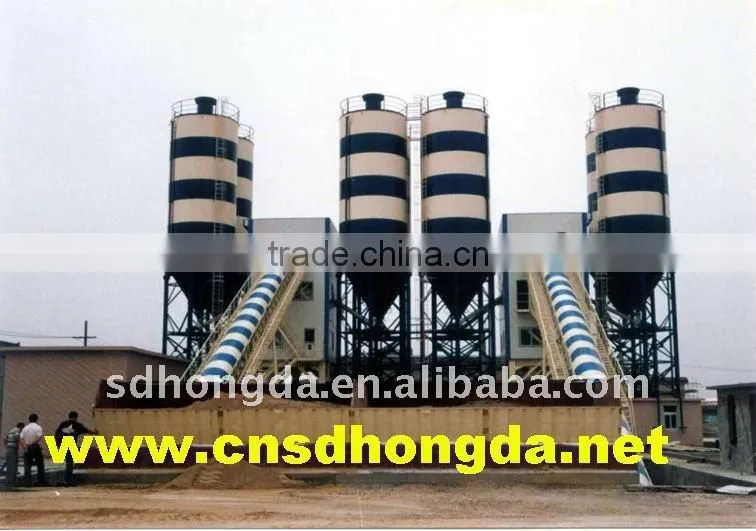

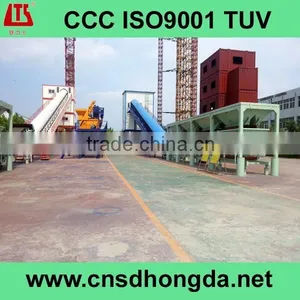

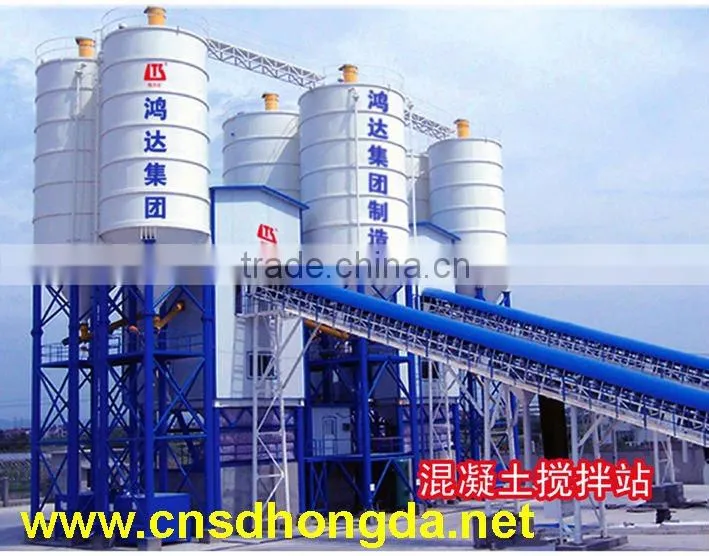

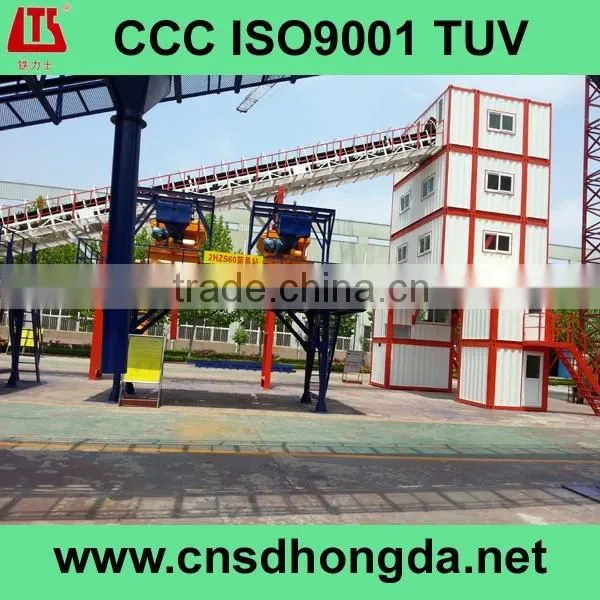

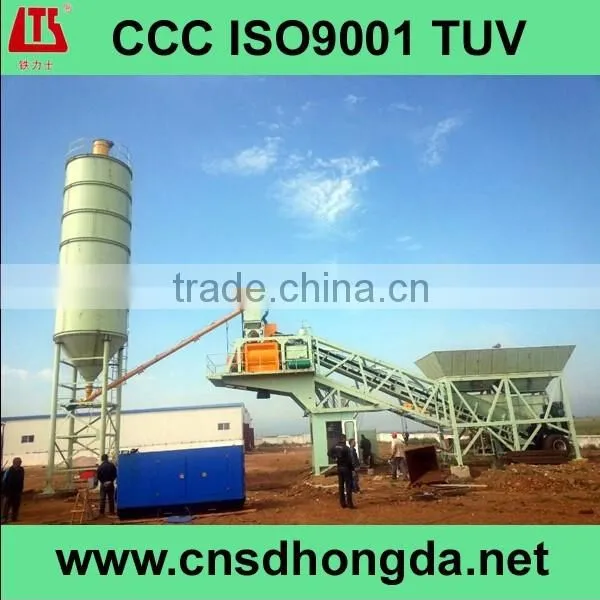

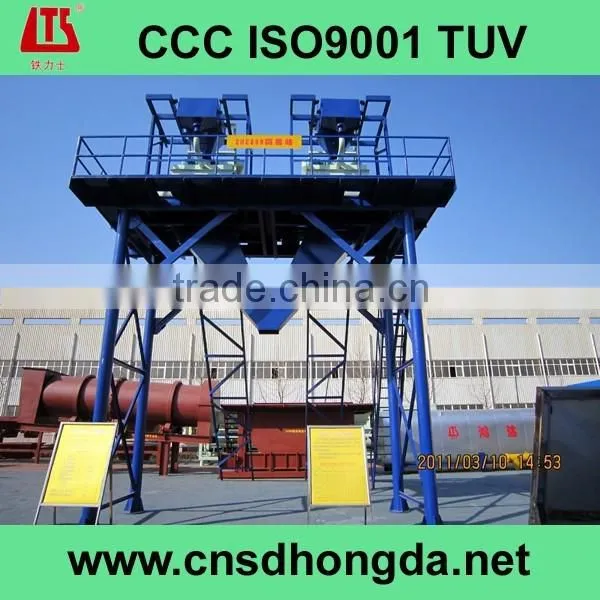

HZS Series of Concrete Mixing Plants
The HZS/HLS series of concrete mixing plants/towers (HZS/HLS40-180) are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
Concrete Mixing Plants ( Main Technical Parameters)
Model |
HZS/HLS60 |
HZS/HLS90 |
HZS/HLS120 |
HZS/HLS180 |
HZS/HLS240 |
|
Theoretical Production |
60 |
90 |
120 |
180 |
240 |
|
Main Mixer |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS4000 |
|
Measuring Scope & Precision |
Stone(kg) |
2000±2% |
2500±2% |
3000±2% |
4000±2% |
5000±2% |
Cobble(kg) |
2000±2% |
2500±2% |
3000±2% |
4000±2% |
5000±2% |
|
Cement(kg) |
600±1% |
900±1% |
1200±1% |
1800±1% |
2400±1% |
|
Mingled materials(kg) |
300±1% |
500±1% |
600±1% |
900±1% |
1200±1% |
|
Water(kg) |
300±1% |
400±1% |
500±1% |
800±1% |
1000±1% |
|
Additives(kg) |
30±1% |
30±1% |
50±1% |
80±1% |
100±1% |
|

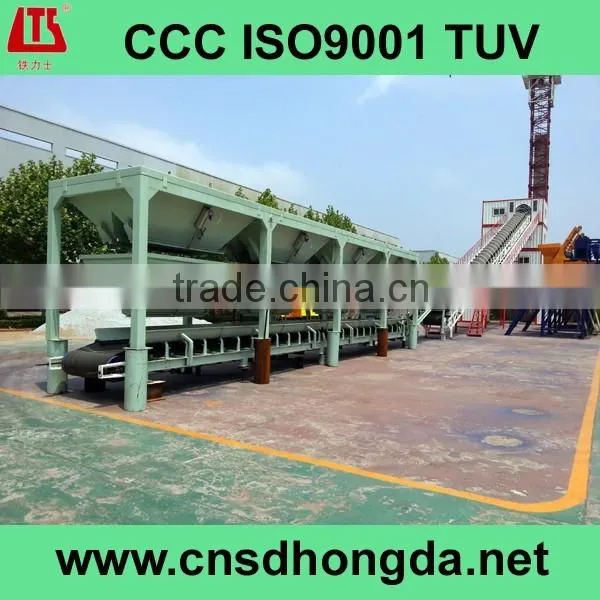

Batching Unit |
The number and capacity of batching bins as well as their installation forms can be regulated according to customers’ demands. |
|||||
Powder Silo |
The capacity and number of powder silos as well as the accessories vary with customers’ demands. |
|||||
General Power (kw) |
80 |
105 |
125 |
175 |
220 |
|
Discharging Height(m) |
3.8 |
3.8 |
3.8 |
3.8 |
3.8 |
|
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) ”.Our productshavepassed CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.Our main products are:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators(multi-speed, stepless-speed);
3. Concrete Mixers(rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/BatchingPlants(25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers(6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mountedConcrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning) ;
11. Stabilized SoilMixing Plants;
12. Rotary Drilling Rigs...
