Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Injection Moulding Machine KSML650

Injection Moulding Machine KSML650

Injection Moulding Machine KSML650 photo-1

Injection Moulding Machine KSML650 photo-2

US$ 19,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Preform Injection

Style:

Horizontal

Contact Supplier Request Quote Chat Now

Shanghai Panxun Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Preform Injection

Style Horizontal

Brand Name KSM

Model Number KSML650

Place of Origin Zhejiang, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 2096g-2901g

Injection Rate 532-737g/s

Clamping Force 6500KN

Opening Stroke 930mm

Power(W) 30+30KW

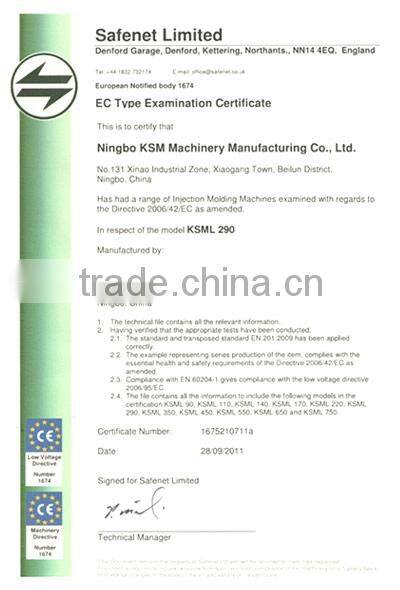

Certification ISO9001:2000 ,CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Advanced controller
2.Automatic mould adjust
3.Arched bridge structure

KSM Company Introduce

Ningbo KSM Machinery Manufacturing Co., Ltd. can be, is a professional production and technical cooperation with the Italian manufacturer of high-end plastic injection molding of high-tech enterprises. The company has established a perfect quality assurance system standards, passed the ISO9001: 2000 quality system certification and CE safety certification. The major products supporting line with the EU ROHS standards, the majority of purchased parts by the Chinese CQC, American UL and CUL, German VDE and TUY other related argument.

Main technical parameter

Specification

Model

KSML650

Unit

Injection unit

Screw Diameter

100

Screw L/D Ratio

l/d

22.3

19.9

18.9

Theoretical Shot Size

cm3

2303

2582

2877

3188

Shot Weight (PS)

2096

2350

2618

2901

Injection Rate

g/s

532

597

665

737

Injection Pressure

Mpa

206

184

164

149

Screw Speed

rpm

125

Clamping unit

Clamping Force

6500

Opening Stroke

930

Space Between Tie Bars

960*880

Mold Thickness (min.-max.)

350-900

Ejection Stroke

260

Ejection Force

200

Others

Pump Pressure

Mpa

Pump Motor Power

30+30

Heater Power

37.2

Number of heating Segment

unit

5+1

Machine Dimension(L*W*H)

9.6*2.4*2.7

Oil tank cubage

1200

Machine weight

Ton

High Security

KSM series injection molding machine ,attaches great importance to the machine when the usera use the safety performance and ease of maintenance ,to ensure that every detail from to guard agaibst possible accidental injury accidents.

-Prefect operating space for safty protection .

-Reliable safty protection for machenical clamping ,which avoided excident cliping when clamping

-Multipul safty protection device for electric ,which avoided electric equipment accident

-Multipul safty protection device for hydraulic system ,which avoided damage caused by clamping or oil tank bursting

-Safty protection from splashing during injection,which protected operators from injuring by splashing of thr high temperature plastic when injection

-Reliable protection for insulation and leakage of electrin

-Standard low pressure protection for mold,which widely prevented from striking and damage

-Repeat precision of stopping position after standard molding opening ,Can euqiup with visable mold monitor system,It realizes full automatic injection of precise industry electrical parts

High Precision

KSM series injection molding machine for stable precision injection molding,made more apecial design,so as to ensure the user repeatedly get the required precision plastic parts .

-Five-point double toggle diagonal structure,tempalate design by computer optimization

-Mechanic,electronic&hydraulic triple interlock safty protection function

-Sensitive low-pressure mold protection device-eject

-Multilpe stages control for mold opening clamping pressure

-Hydraulic motor-driving gear mold adjustment

-Special technique treatment ,reliable strength

-Automatic centralized lubrication system

-Mold open and clamping,eject position controlled by Lnear

-Automatic mould adjustment function

-Robbotic pincher posotioning interface

-Core pulling dence is suitable for the complicate struture mould

Easy Usage

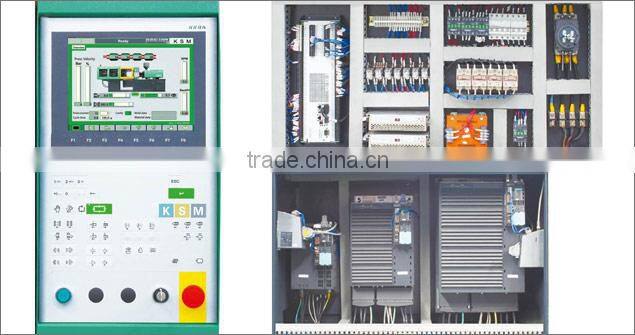

Compared with common injection molding machine of caculation speed of less than 32MHZ,it is more than 400MHZ with the precise ,which are of high request in respons and very functional ,Easy operation for all users with large color screen and friendly operation interface

-Special PLC computer controller for plastic injection machine use ,control and display relatively independent with high reliability

-Technical parameters pre-setting and storage function

-Parameters infoemation protection function

-Charging barrel temperature deviation automatic adjustment function

-Abnormal alarm function

-Front and back door emergency stop button

-Timely monitoring can display the condition of each motion

-Electrical motor safety protection device

-Robotic pincher interface

-Material feeding photoelectric swith

-System hardware I/Q detection function

-Charging barrel temperature is controlled accurately by computer setting and PID closed-loop manner

-Screen protection function ,prolong the life of screen using

-Full-enclosed electrical-controller box,electrical components are neatly arranged,never interfere with each other

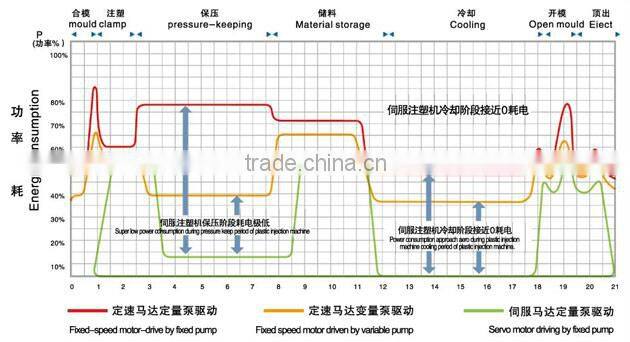

Energy Saving

Servo energy-saving injection molding machine ,there is no extra energy consumption due to output volume changes according to load.the cooling motor doesn't work and consumes no energy ,Servo energy-saving injection molding machines will save 20%-80% energy and bring you prominent economic.
