Specifications
Welcome to review our roll forming machineBeautiful appearancea
reasonable price
complete service

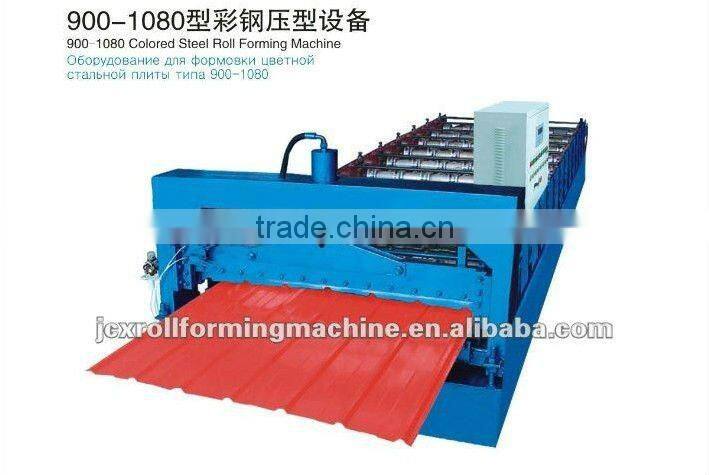

900 colored roof and wall metal panels roll forming machine
Introducation

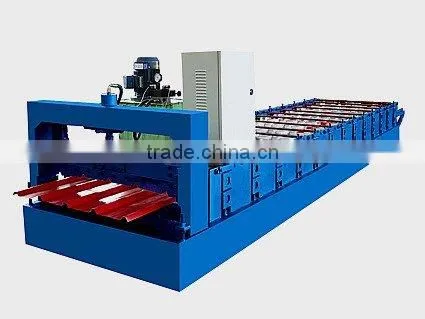

Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.
Flow chart:
Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:

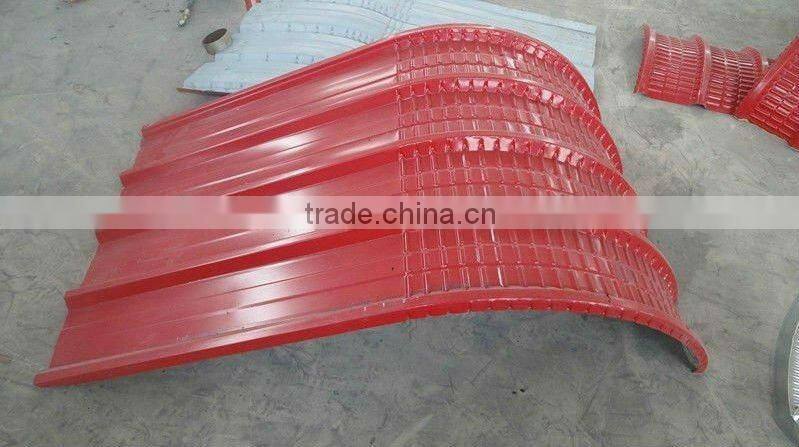

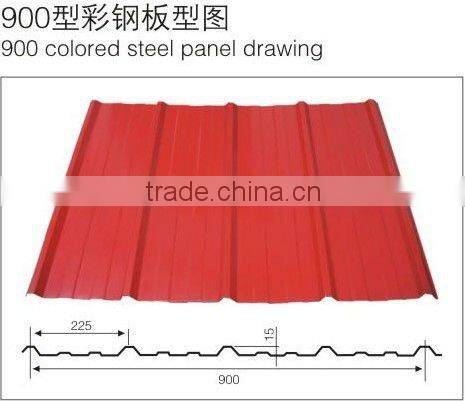

1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 2.0-3.0m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
Introducation
Machine consist of uncoiler and its base, coil sheet guiding equipment, film covering device, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.
Flow chart:
Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final productd
3. The operation automatically minimizes the tolerance of cutting length
Products Feature:
1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power: 4 kw
Forming Speed: 2.0-3.0m/min
Hydraulic station power: 3kw
Quantity of stand:about 14 or 16 stands
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Total weight: about 6 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm
