Specifications
1,we are manufacturer2,CE,TUV certification
3,Saving time and cost
4,complete service
1, product name: Sheet Gutter Forming Machine
Processes:
Man-made uncoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
6.5 Inch U Shape Gutter Forming Machine For Galvanized Steel Sheet
Specifications:
No. |
Item |
Description |
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, Aluminium sheet |
2 |
Working speed |
8-15m/min |
3 |
Main motor power |
2.2kw with cycloidal reducer |
4 |
Hydraulic station power |
3kw |
5 |
Electrical control system |
PLC control system with famous brand |
6 |
Thickness of material |
0.25mm~0.8mm |
7 |
Shaft diameter |
56mm |
8 |
Roller station |
20stations |
9 |
Wall panel |
16mm |
10 |
Dimension |
8900x1200x900mm |
11 |
Driving mode |
Chain |
12 |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
|
13
|
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |

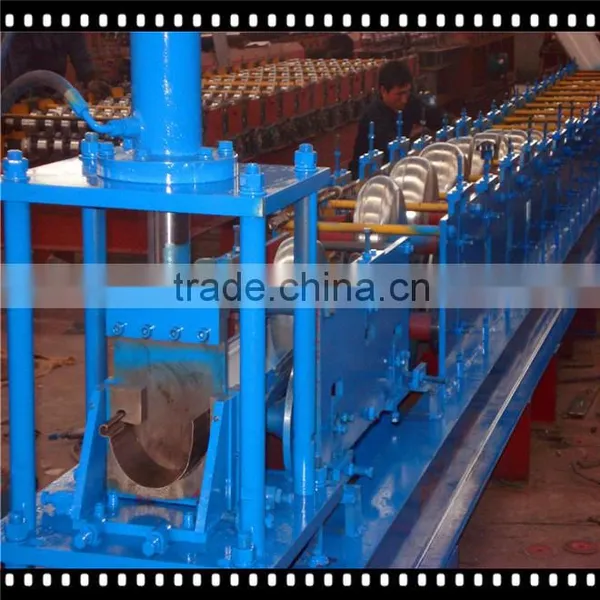

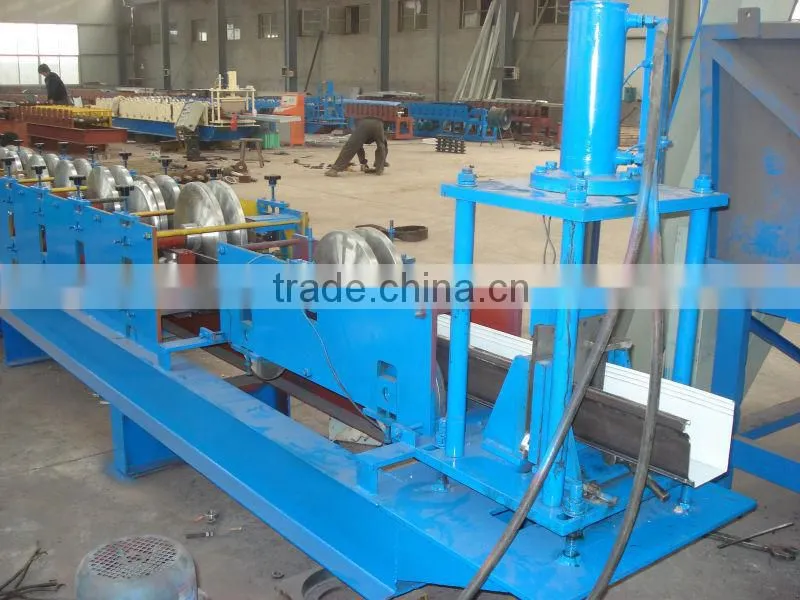

2,product picture
Service:
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $50/days
Payment term: TT, LC, OA, CASH ETC.

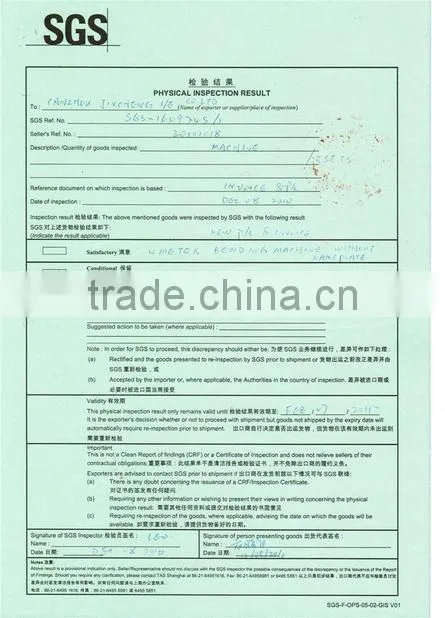

Certification:
Our company:
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China. We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
