Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Pinch Plate Making Machine for Advatisement&ceiling Panel

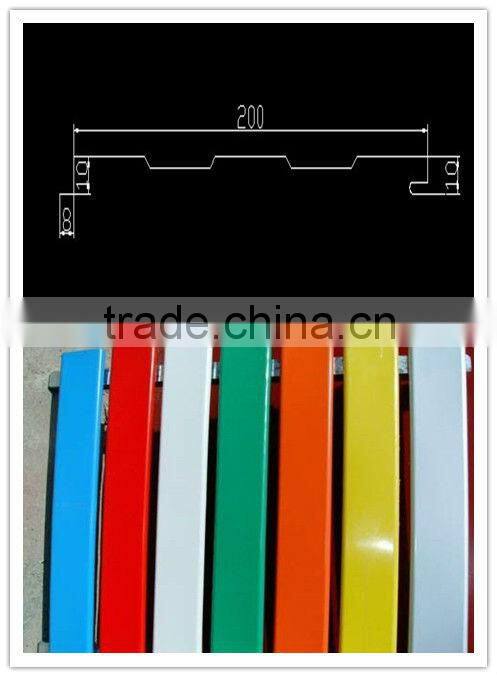

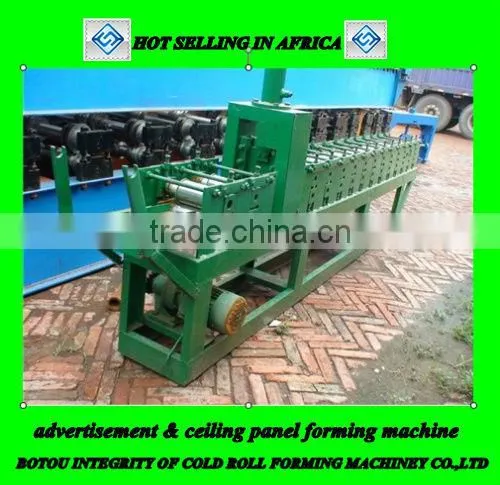

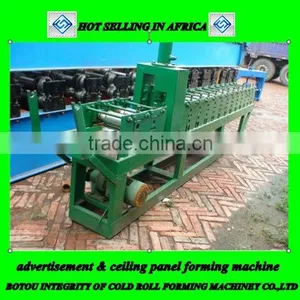

Pinch Plate Making Machine for Advatisement&ceiling Panel

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Steel

Contact Supplier Request Quote Chat Now

Botou Golden Integrity Roll Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

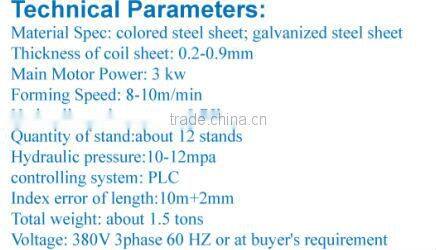

Condition New

Type Tile Forming Machine

Tile Type Steel

Use Other, steel frame

Production Capacity 8-12m/min

Place of Origin Hebei, China

Brand Name JCX

Model Number JCX steel strip

Power(W) 3+0.75kw

Voltage 380V 3phase 60HZ or at buyers' requirement

Dimension(L*W*H) 7500mm by 1350mm by 1500mm (length by width byheight)

Weight about 1.5T

Certification ISO,CE,SGS

Warranty 1 year

Specifications

1.high effiicient
2.exact working
3.easy controlling
petive price
5.reliable quality

Production Description

Golden Integrity Roll Forming Machinery Co., Ltd

Suitable and efficient to process steel, aluminium, alloy material for building
NO.45 forged steel is uesd for the machine, plated hard chrome on the surface
Many classic design or as customers' requirement
Elegant and nice appearence with any color you choose
One year warranty and whole life technical service

Details show

Processing technique and deployment

Processes: manmade decoiler--Roll forming machine—PLC system—Hydraulic system----cutting

Components of line:

No.	Name	Unit	Qty
1	Man-made uncoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	Blade	set	1

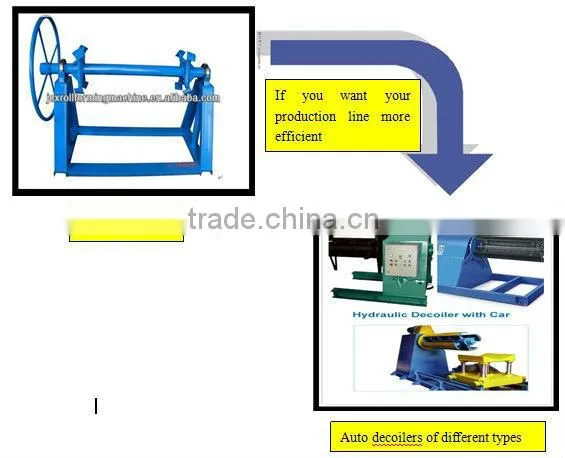

(1) man-made uncoiler (max capacity 5000kg)

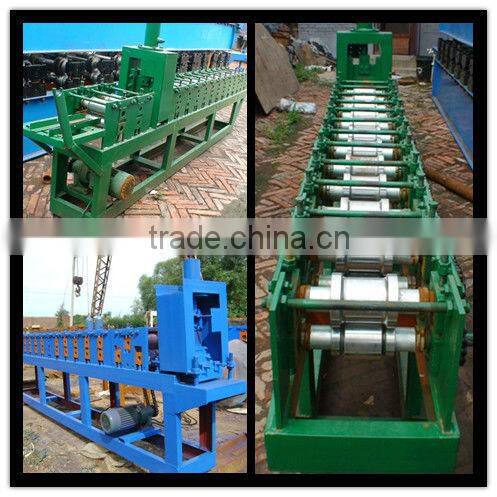

(2) Roll-Forming:

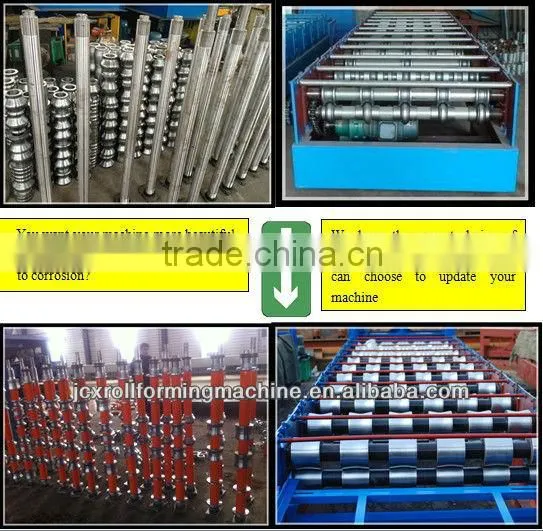

Steps:10-11steps Roller Material: 45# steel

Voltage: 3phase/80V/50-60Hz. line speed:8-10m/min;

Rolling chromium thickness:0.05 mm

(3) blade

It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.

Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.

Stop to cut , Post cut cutting length tolerance: ±2mm

Cutting tool material: GCr12 with quenched treatment 60-62°C

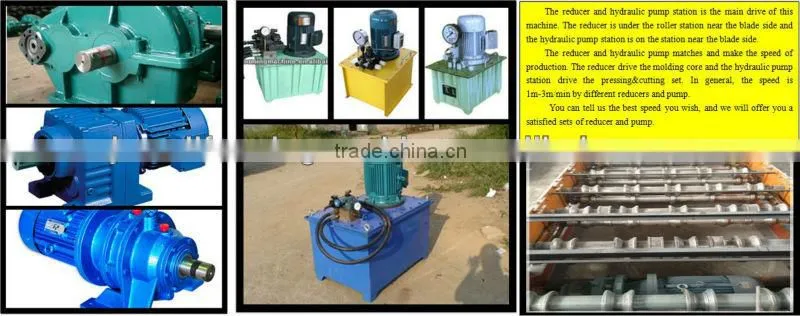

(4) Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

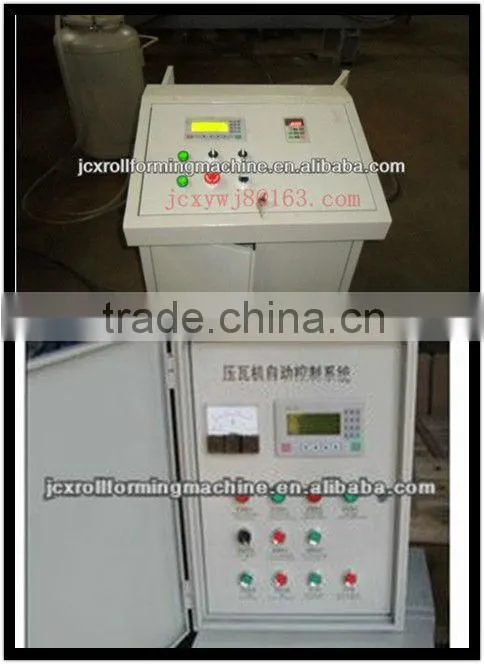

(5)control system :

It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one.

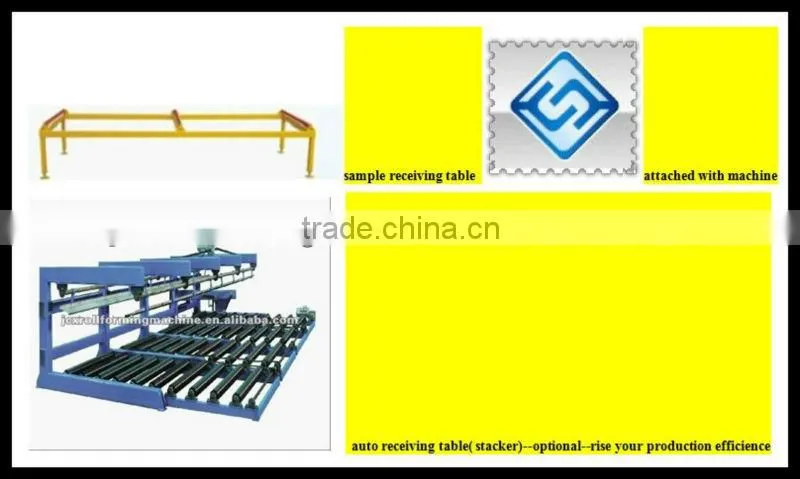

(6) receiving table:

Application

Our cold roll forming machine is uesd to produce the any kinds of plate for the roof, wall, floor and other frame of building like workshop, warehouse and other house coating
.

Shippment

Samples EXPRESS: EMS,DHL
Products Transportation: Ocean shipping (1). shipping port :Tianjin of China (2). dilivery time: 30 dyas about( depends on the location of destination port (3). FOB terms in general

Payment

1. T/T , L/C 2. 30% Advanced pament first and the lest paid after received loading bill copy.

Packaging(General Container)

1.Main body of mchine(forming device)

2.cabnet box

1.nacked but fastend by solid oil rope

2.nacked

All the packaging of machine above can be arraged as customers' requirement.

Service

1. One year warranty

2. Whole life technical help

Certification

About US

Our technical force is abundant. Production equipment is advanced, detection means is complete.We specialize in the professional production of various types of roll forming machines, and the development and production of fully automatic intelligent control roll forming machines of C-shaped steel and dust collector anode plates, and other equipment.
