Colorful Stone-coated Metal Roof Tile Making Line
I.Suitable material
1.Coil material:color steel sheets, galvanized plates,galvalume plates
2.Thickness of coil material:0.15~0.8mm
II.Producing Process
Manual decoiling----Slitting the plate----Cutting to length----Pressing the profile----Sand coated production line---Taking out the finished products
III.Components of the production line
1. Manual decoiler
2.Slitting device
3.Hydraulic cutting device
4.Press mould machine
5. Automatic bottom glue spraying equipment
6.Automatic Sandblasting Room
7.First drying room
8.Automatic surface glue spraying equipment
9.Second drying room equipment component
Application
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones
It is modern,environmental and nice appearance.
We developed this stone coated production line based on long time running and improvement It is high-performance,stable, energy-efficient and easy operation.
Colourful Stone Chip Coated Roof Tile Production Line (Sand Blast Part )

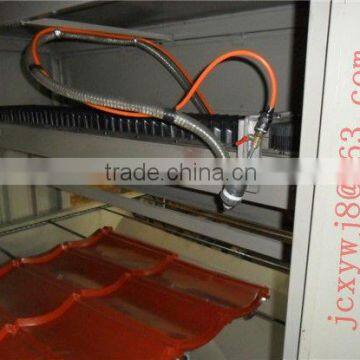

Automatic Bottom Glue Spraying Equipment
Outside Dimension :3000*1850*700mm(L*W*H) |
Structure:Channel steel ,angle steel ,welded |
Transmission:With glue spraying equipment compound chain transmit |
Conveying device:Compound chain transmit |
Air compressor: 1 set, 18.5kw, air output is 3m³/min |
High-pressure sand suction system: 1 set, sand suction is 1T/hour |

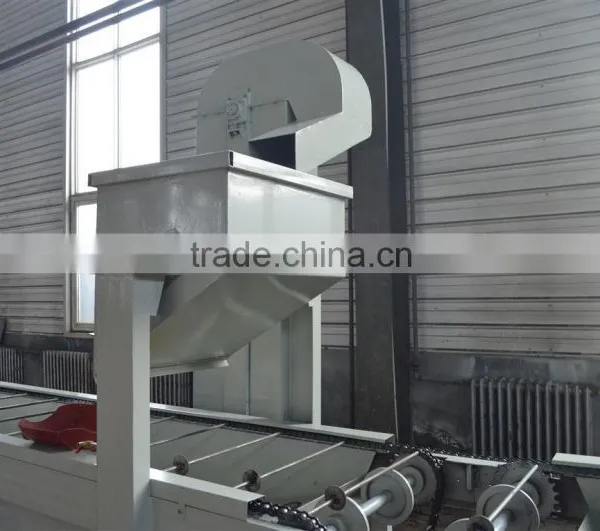

Sand hopper: 1 set, dimension:550*600*500 |
Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC |

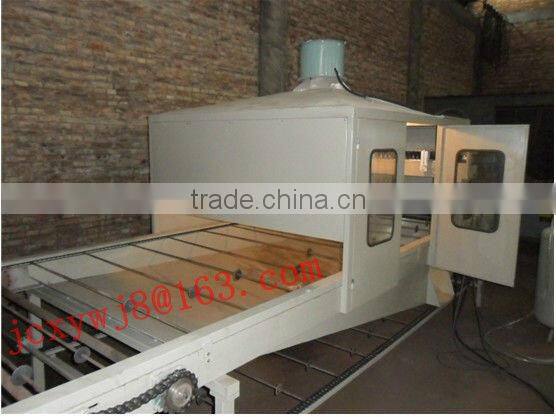

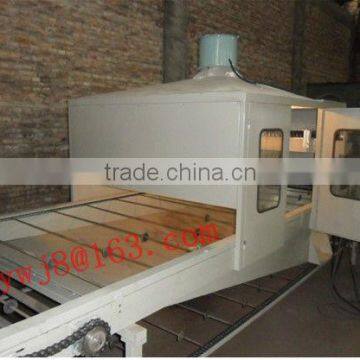

First Drying Room
Outside Dimension:4000*1350*850mm(L*W*H) |
Structure:Channel steel ,welded |
Conveying device:Reciprocating chain conveys |
Adsorption of dust removal equipment:1 set |
Air compressor: 1 set, 7.5kw, air output is 1m³/min |
D46 high-pressure airless spraying system 1 set |
Automatic high-pressure airless spraying gun: 1 set |
High-pressure airless manual spraying gun:1 set |
Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
100L stainless charging basket 1 piece |
Automatic Surface Glue Spraying Equipment
Spare parts: Infrared fluorescent tube: 10 pieces, nozzle:2 pieces
Colourful Stone Chip Coated Roof Tile Production Line (Production Sample)

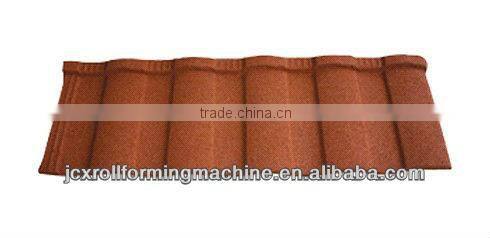

1)Roman type:

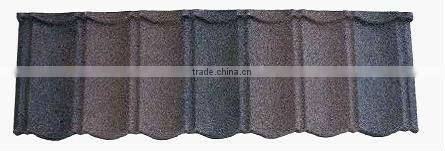

2)Classic type

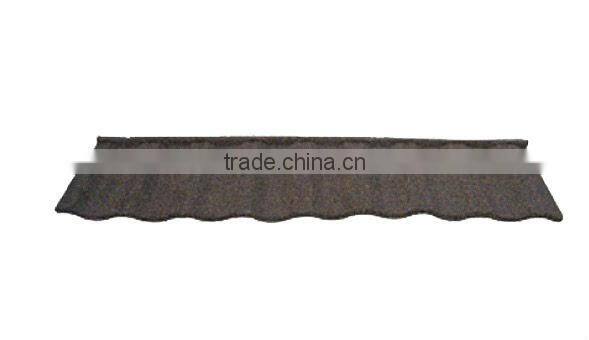

3)Aspirant type:

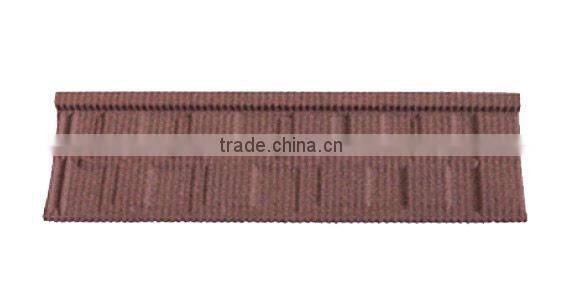

4)Wooden type
5)Flat metal type
3.Advantage of stone coated roof tile:
·Simplicity and lightness,no costly maintenance ·Variety of colors
·Outstand durability,fire proof,water proof,low temperature resistance,corrosion resistat
·High economic efficiency ·Easy installation.
·Drying technology make color never fade.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China.
